2.2kW 220V - 380V Variable Frequency Drive - SU600A-2R2G1-B

VFD 2.2kW SU600A-2R2G1-B - Single Phase 220V to Three Phase 380V Boost Drive

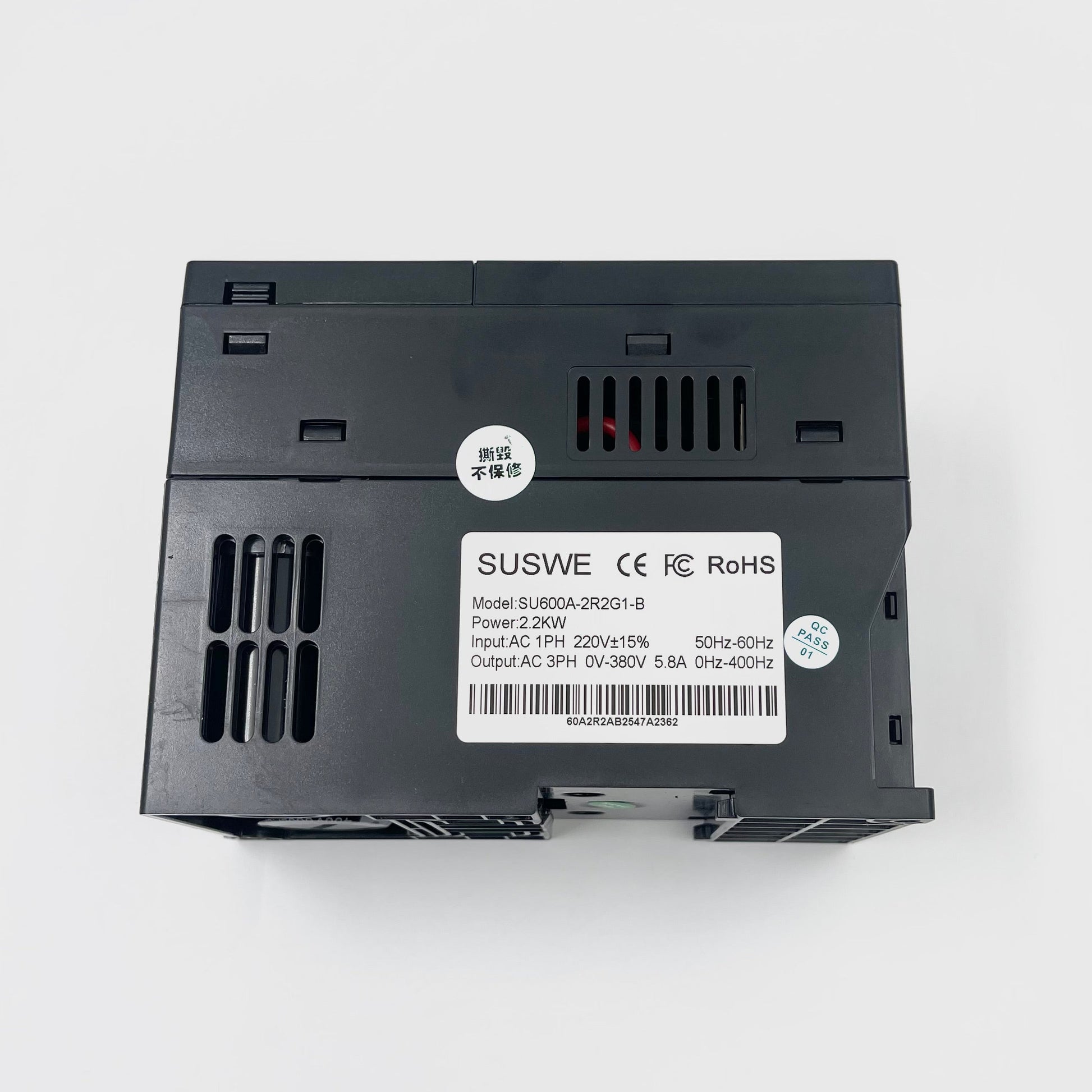

Model: SU600A-2R2G1-B
Series: SU600A Vector Control Frequency Converter

Motor Power Capacity: 2.2kW
Designed to operate 2.2kW three-phase 380V motors with a rated output current of 5.8A.

Input Supply:
Single-phase 220V AC (±15%), 50/60Hz, suitable for standard residential and commercial power connections.

Output Supply:
Three-phase 380V AC with variable voltage and frequency (0-380V). This drive incorporates a voltage boost function, allowing direct operation of 380V motors from a 220V input.

Output Frequency:
Adjustable from 0 to 400Hz, providing accurate motor speed control across a wide operating range.

Control Methods

V/F Control: Conventional volts-per-hertz control for general-purpose applications.

Sensorless Vector Control (SVC): Improves torque performance and speed stability, especially at low speeds, without requiring an encoder.

Control Operating Features

Integrated PID Control: Supports closed-loop control for applications such as pressure, flow, or temperature regulation.

Multi-Speed Control: Enables programmable stepped speed operation via digital inputs.

Jog / Inch Mode: Allows controlled, short-duration motor movement for setup or servicing.

Communication

RS485 Interface: Built-in support for Modbus RTU protocol, enabling connection to automation systems and remote control platforms.

Protection Safety: Includes comprehensive internal protection against overcurrent, overvoltage, undervoltage, motor overload, overheating, short circuits, and phase loss to ensure stable and reliable performance.

I/O Configuration:Features multiple programmable analog inputs (0-10V and 4-20mA) for frequency reference or feedback, along with flexible digital inputs and outputs for external control and status monitoring.

Braking Capability: Equipped with an internal braking unit to manage regenerative energy during deceleration through dynamic braking.

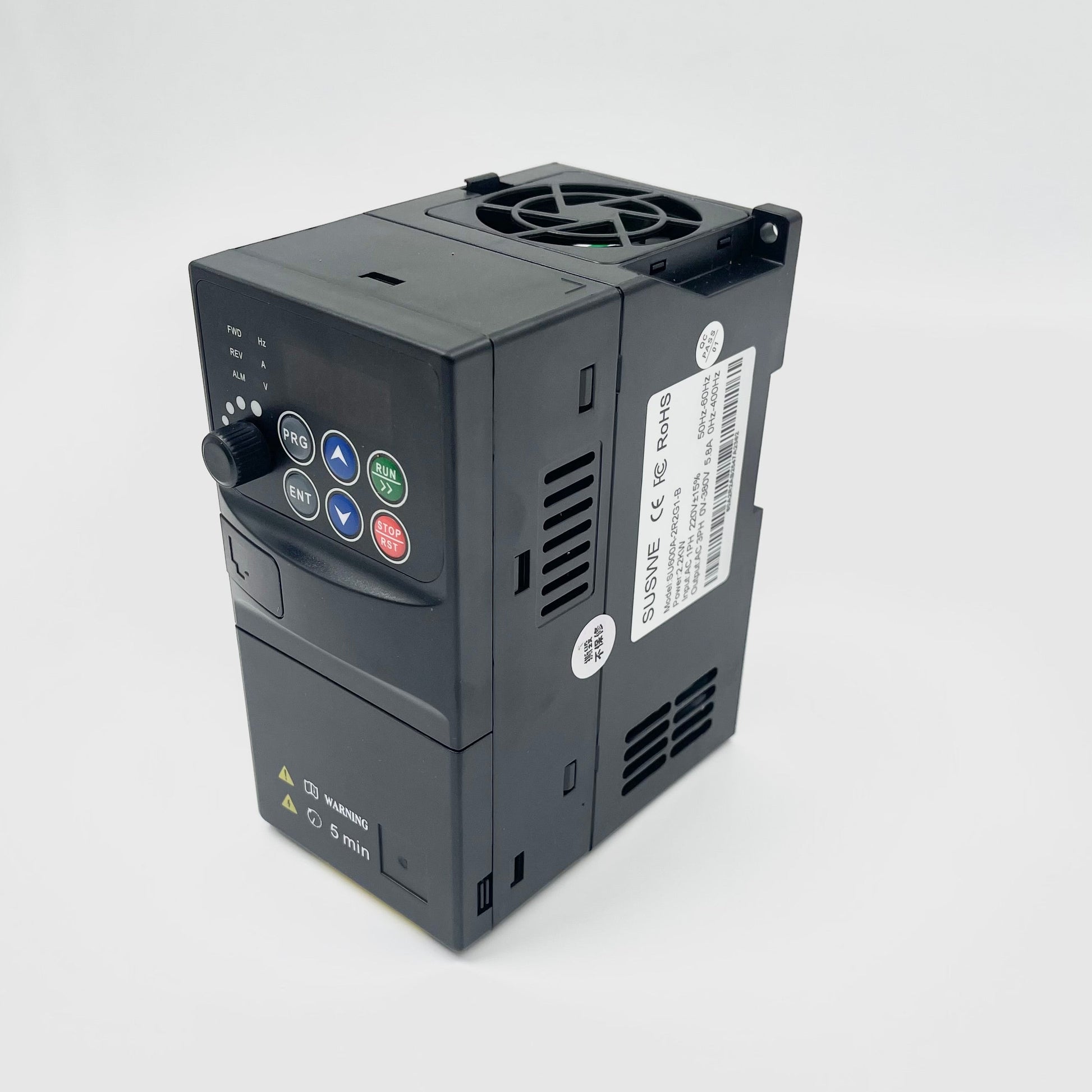

User Interface: Fitted with a clear LED display and digital keypad, allowing easy parameter adjustment, real-time operating feedback, and efficient fault diagnosis.

Compliance: Designed to meet common international standards, including CE and RoHS requirements.

Dimensions:

210x110x178mm

Compatible Part Numbers:

SU600A-2R2G1-B
