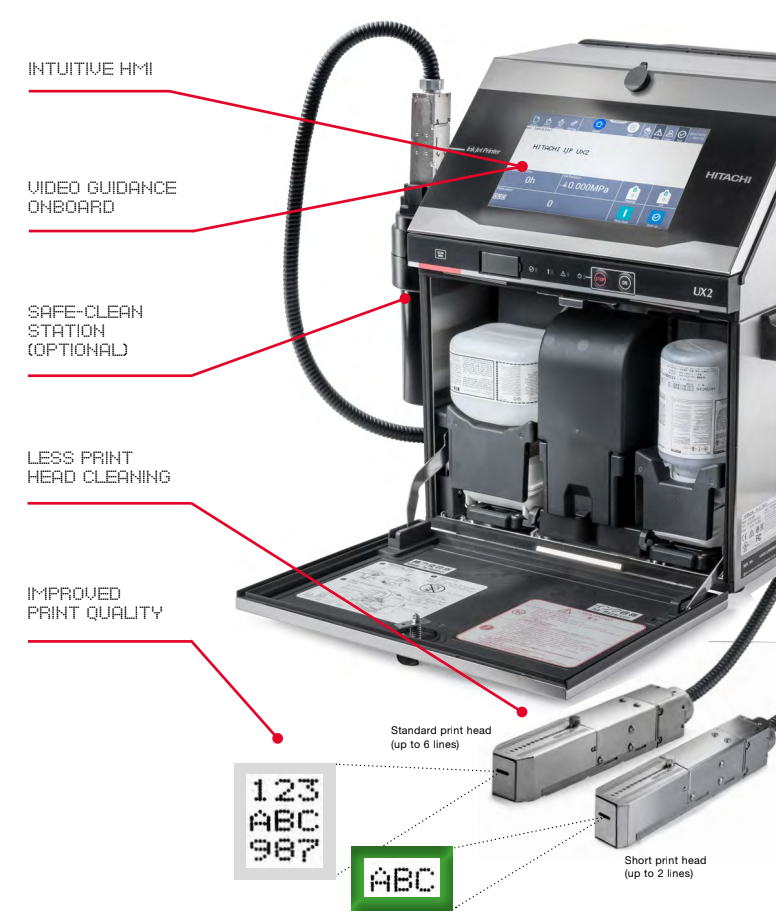

Hitachi ST-UX2 Ink Jet Printer: Precision and Efficiency Redefined
Description:
The Hitachi ST-UX2 redefines ink jet printing technology with its focus on performance, efficiency, and sustainability. This printer is ideal for businesses seeking top-tier printing solutions.
While Southern Technology Ltd has been around for 58 years.
For over 45 years, Hitachi has developed and produced high-performance
inkjet printers based on the well-proven Continuous Inkjet (CIJ) principle
for industrial marking.
Hitachi Industrial IJ printers are high-speed printers adopting a non-contact
printing method, ideal for a wide range of applications. They are capable of
applying best-before dates, logos, barcodes, lot numbers and data matrix
codes, which makes the new UX2 Series the perfect solution for both
complex and standard applications.

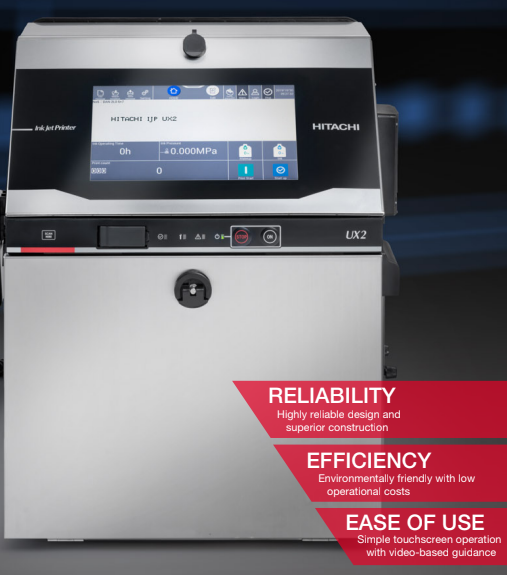

Highly Reliable
Hitachi products are renowned for being
extremely reliable in harsh environments.
All functionally critical parts are
manufactured in-house. The use of
Hitachi’s own components reinforces the
high quality levels, reliability and
excellent value for money.
Cost-Effective

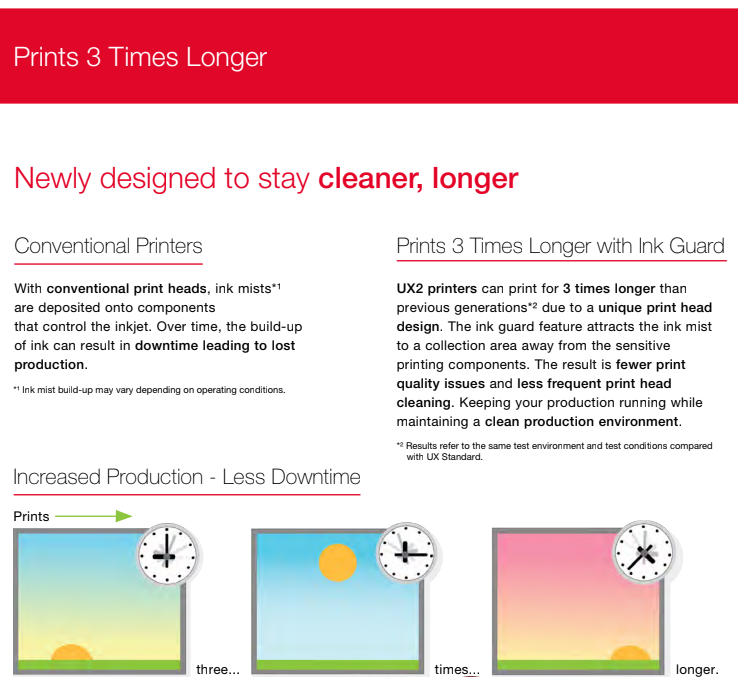

The new, economical ink recovery
technique achieves industry-leading
levels of solvent consumption and
the very low maintenance costs
minimise the total cost of ownership.

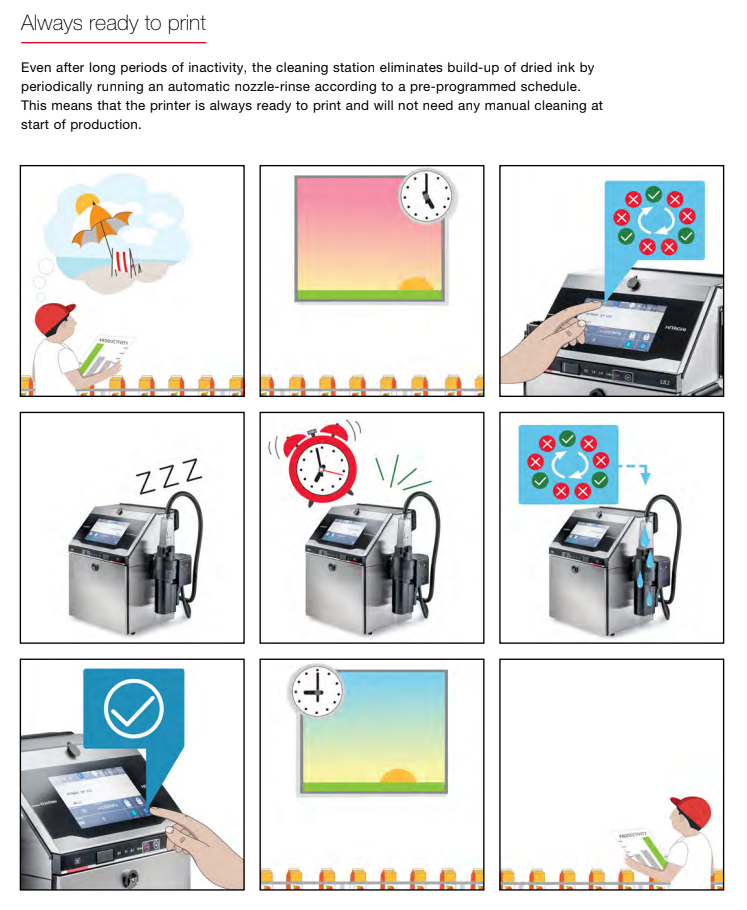

Always ready to print

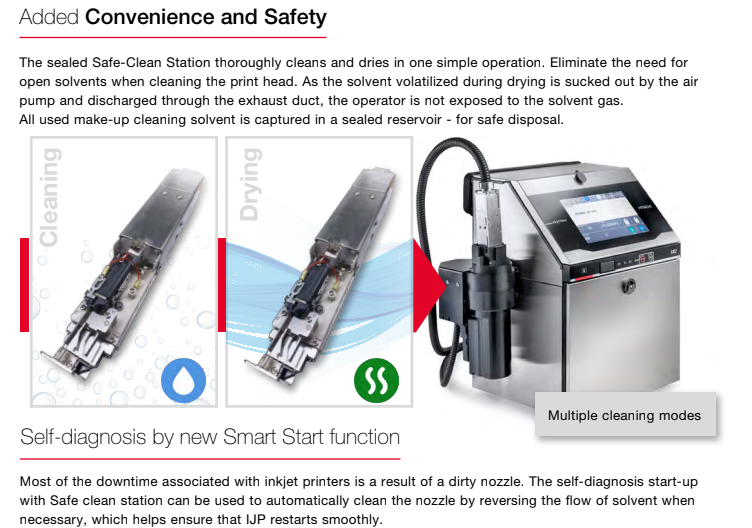

Even after long periods of inactivity, the cleaning station eliminates build-up of dried ink by periodically running an automatic nozzle-rinse according to a pre-programmed schedule.
This means that the printer is always ready to print and will not need any manual cleaning at start of production.

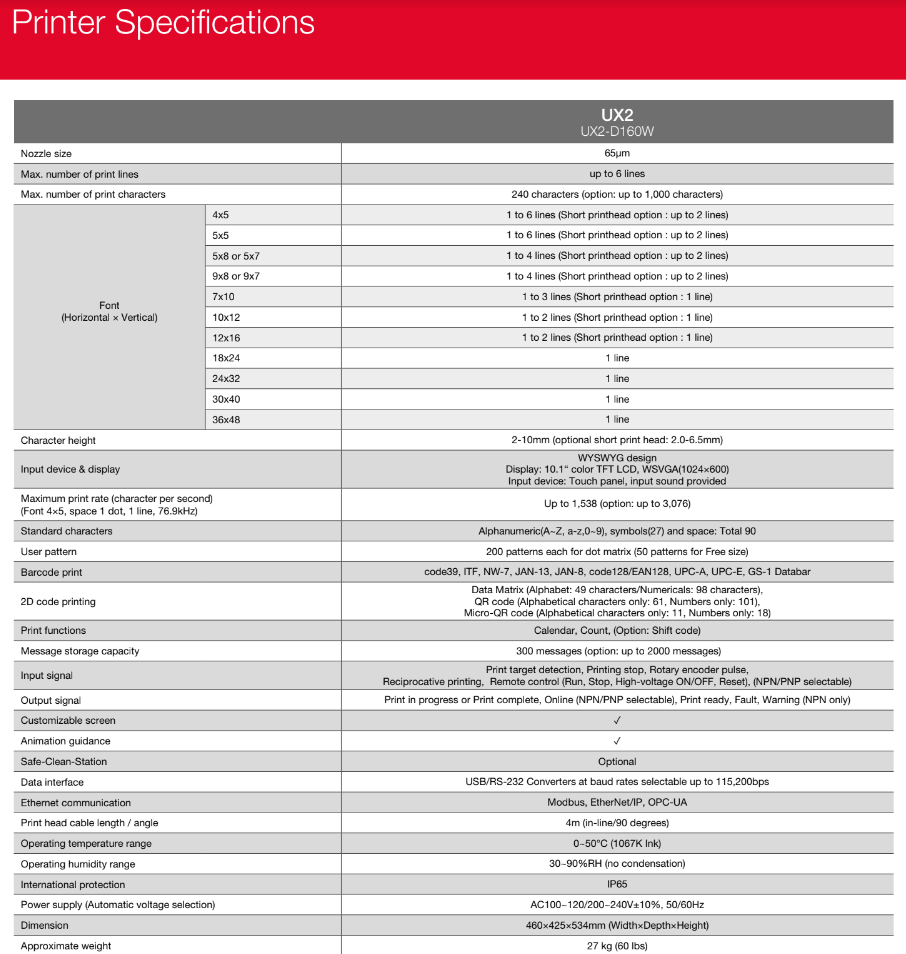

| Feature | Specification |
|---|---|
| Model | ST-UX2 |
| Nozzle Size | 65μm |

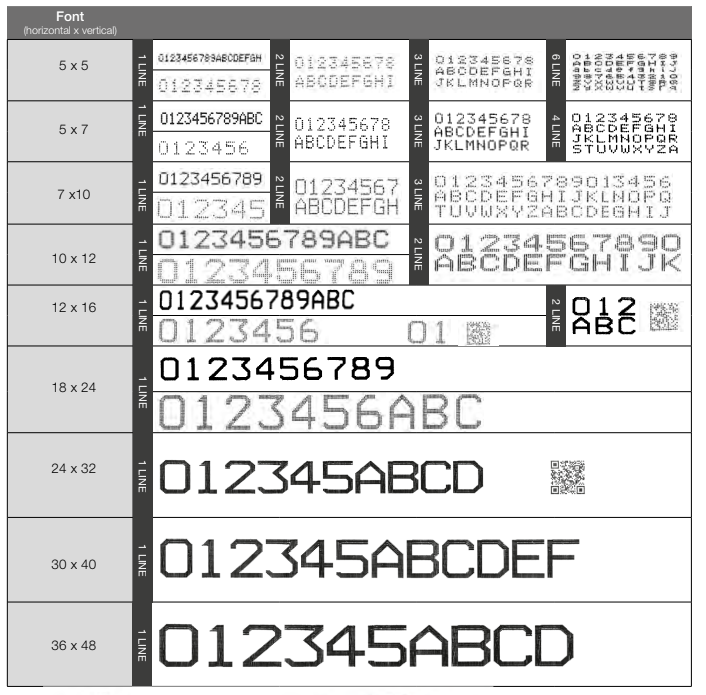

| Max. Number of Print Lines | Up to 6 lines |
| Max. Number of Print Characters | 240 characters (option: up to 1,000 characters) |

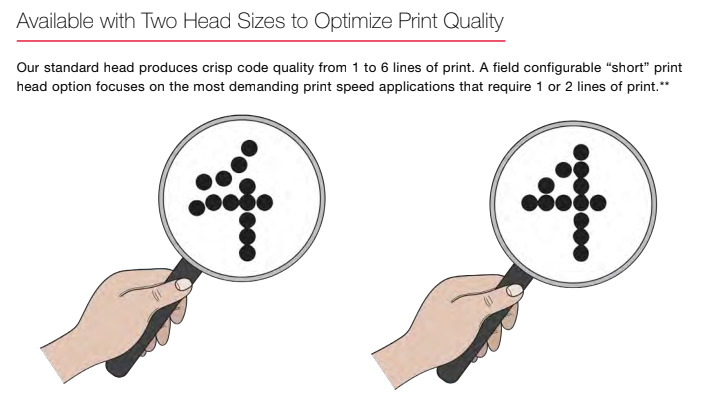

| Character Height | 2-10mm (optional short print head: 2.0-6.5mm) |

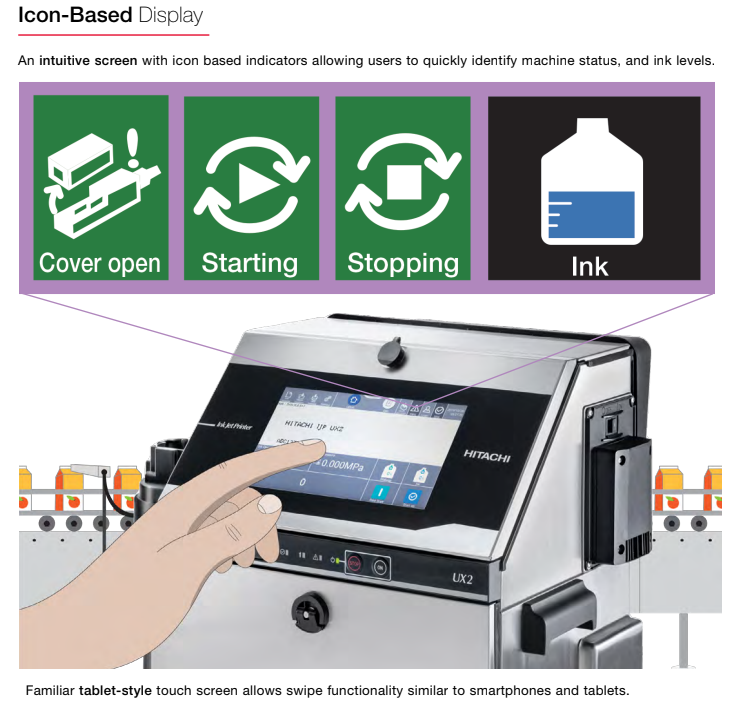

| Input Device & Display | WYSWYG design; Display: 10.1“ color TFT LCD, WSVGA(1024×600); Input device: Touch panel, input sound provided |

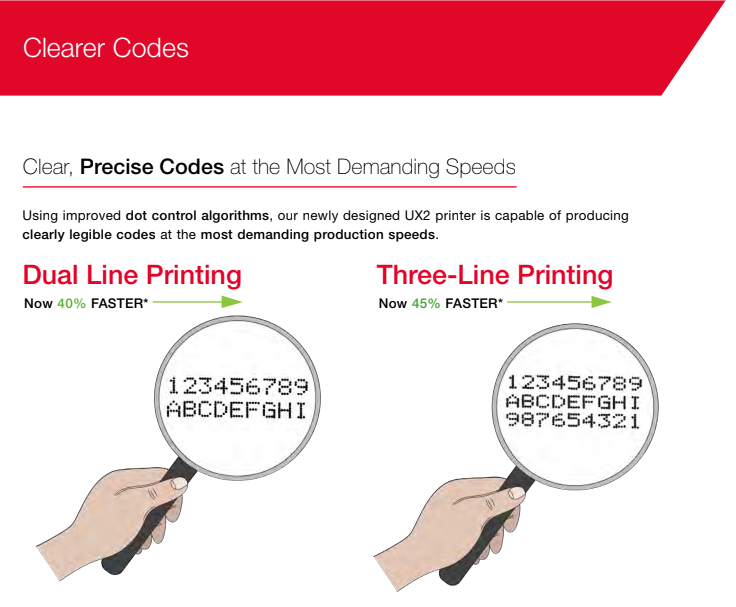

| Maximum Print Rate | Up to 1,538 (option: up to 3,076) (Font 4×5, space 1 dot, 1 line, 76.9kHz) |
| Standard Characters | Alphanumeric(A |
| User Pattern | 200 patterns each for dot matrix (50 patterns for Free size) |
| Barcode Print Code | Code39, ITF, NW-7, JAN-13, JAN-8, code128/EAN128, UPC-A, UPC-E, GS-1 Databar |
| 2D Code Printing | Data Matrix, QR code, Micro-QR code |
| Print Functions | Calendar, Count, (Option: Shift code) |
| Message Storage Capacity | 300 messages (option: up to 2000 messages) |
| Input Signal | Various, including print target detection, Rotary encoder pulse |
| Output Signal | Various, including print in progress, Online, Print ready |
| Customizable Screen | ✓ |
| Animation Guidance | ✓ |
| Safe-Clean-Station | Optional |
| Data Interface | USB/RS-232 Converters, baud rates up to 115,200bps |
| Ethernet Communication | Modbus, EtherNet/IP, OPC-UA |

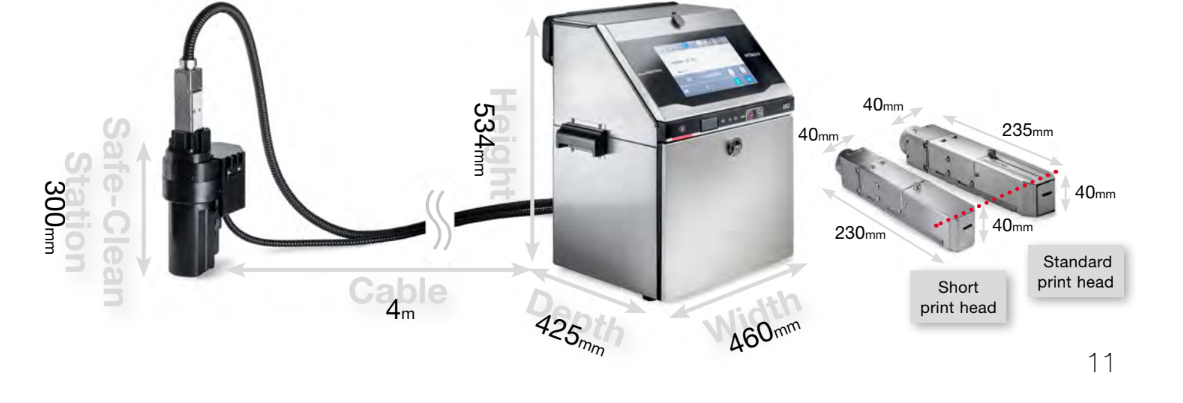

| Print Head Cable Length / Angle | 4m (in-line/90 degrees) |
| Operating Temperature Range | 0~50°C (1067K Ink) |
| Operating Humidity Range | 30~90%RH (no condensation) |
| International Protection | IP65 |
| Power Supply | AC100 |
| Dimensions | 460×425×534mm (Width×Depth×Height) |
| Approximate Weight | 27 kg (60 lbs) |
Built-In Troubleshooting
Video on Board, for Preventative Maintenance and Recovery
An interactive video on the printer screen guides
users to carry out routine tasks, preventative
maintenance activities and even recover the
printer from a fault condition. It’s so intuitive,
even untrained users can easily follow the on
board video guidance.
As a result, daily interaction with the UX2 is
instinctive with no surprises. When needed,
users will be guided by the video to clean the
print head and add fluids.
Why Choose Southern Technology Ltd and Hitachi Printers?
- Unmatched Reliability: Hitachi printers are built to last, minimizing downtime and maximizing productivity.
- Longer Lifespan: The ST-UX2 is an investment that pays off, outlasting other brands in endurance and consistency.
- Premium Service and Support: Southern Technology Ltd provides exceptional service and communication, ensuring your satisfaction and success.
- Trusted by Industry Leaders: Big companies choose Southern Technology for their printing solutions. When you choose the ST-UX2, you choose a printer trusted by experts.
