Avery 934 Print and Apply Novexx XPA9xx

Indent order ~ 3 month lead time.

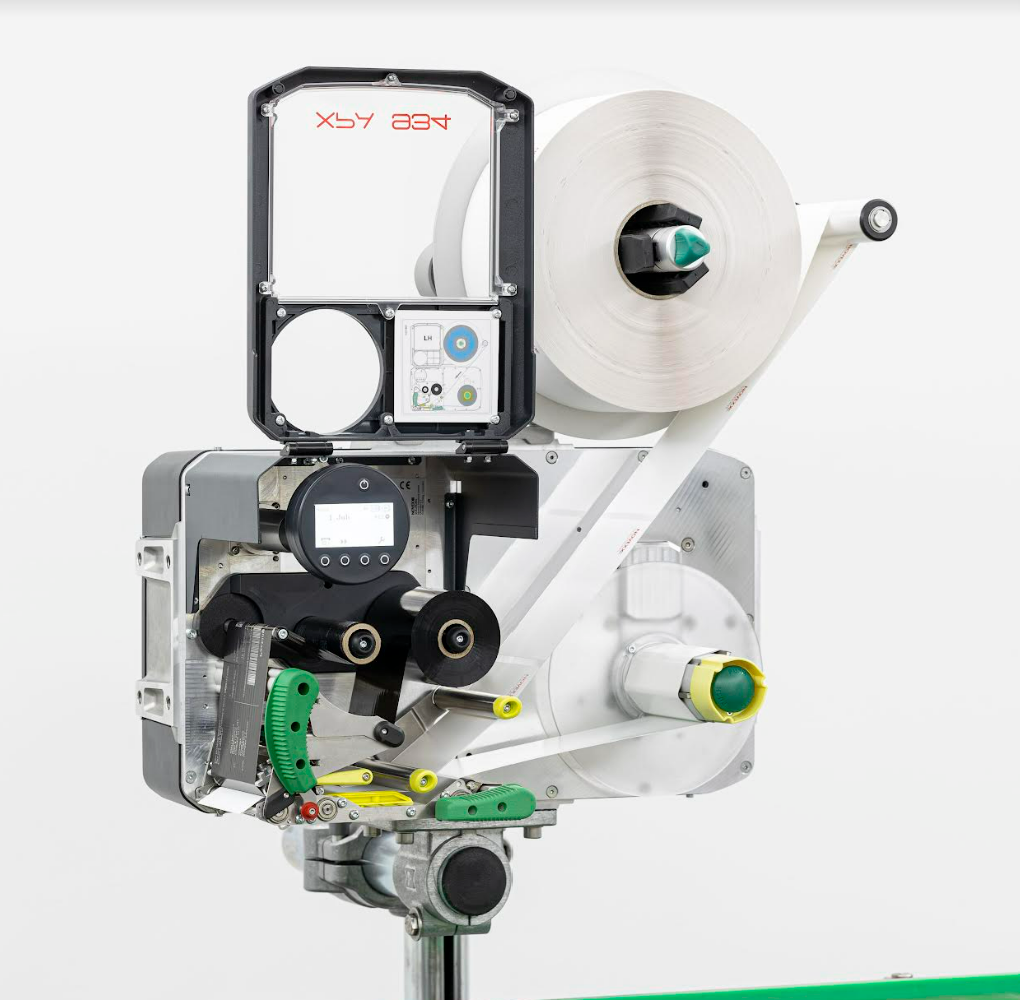

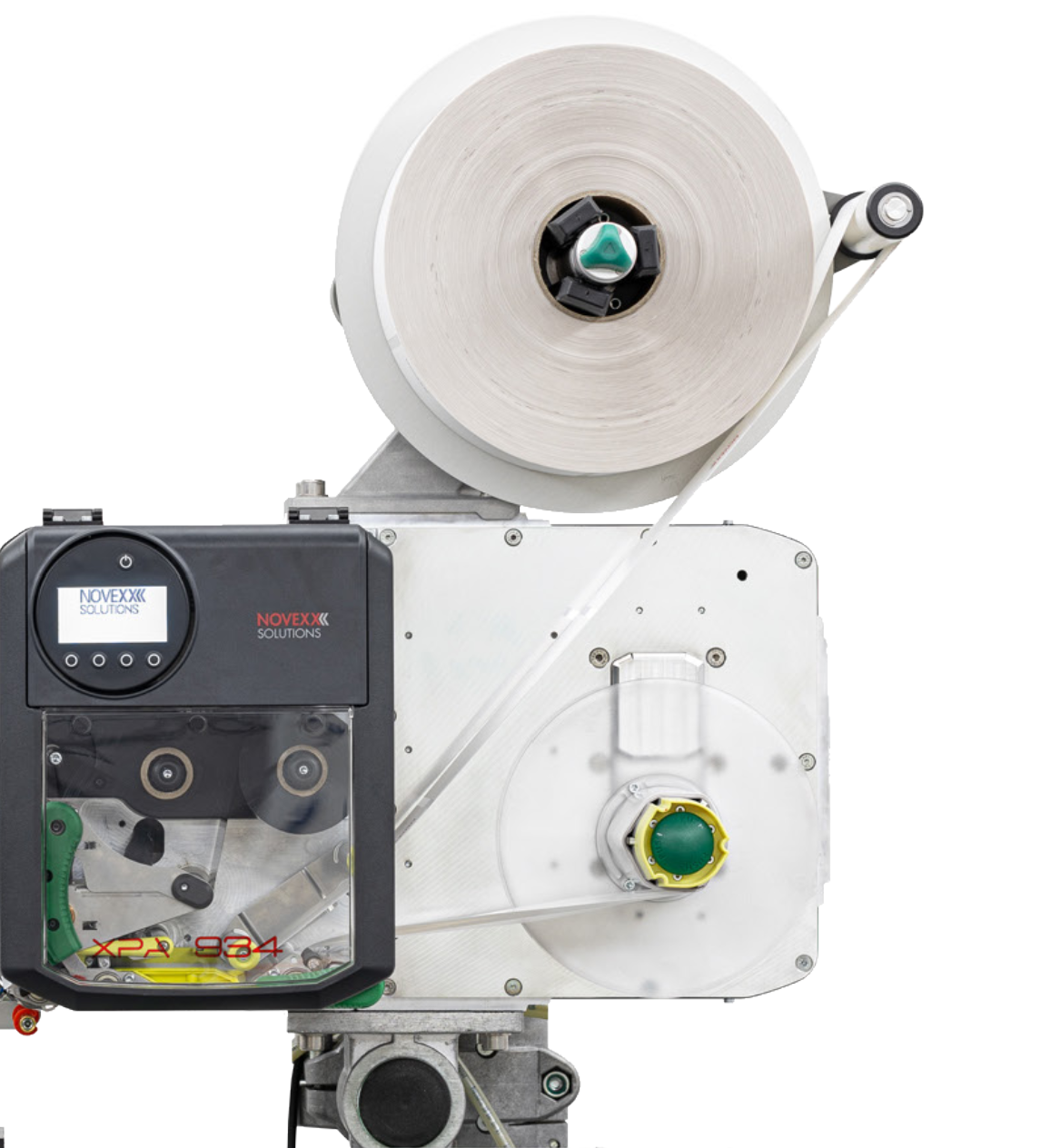

Product Overview: The Avery XPA 934 Print and Apply System is a high-performance, versatile thermal printer designed for industrial labeling needs. It combines exceptional print quality with flexibility, speed, and a robust feature set, making it suitable for diverse labeling applications.

Key Technical Specifications:

1. Printing Technology:

   • Method: Thermal direct / Thermal transfer
   • Resolution: 300 dpi / 12 Dot/mm
   • Speed: 75–300 mm/s
   • Max. Print Width: 106 mm

2. Label Material Compatibility:

   • Self-adhesive labels from 60-160 g/m²
   • Paper and plastic materials (PE, PP, PVC, PA)
   • Roll Diameter (Max): 300 mm
   • Core Diameters: Standard: 76.2 mm (3”), Optional: 38.1 mm (1.5”), 101.6 mm (4”)

3. Label Dimensions:

   • Width (including backing): 20 - 120 mm

4. Thermal Transfer Ribbon:

   • Ink Side: Inside or outside
   • Roll Diameter (Max): 85 mm
   • Run Length: 600 m
   • Width: Max. 110 mm (min. 5 mm wider than label)

5. Physical and Power Specs:

   • Dimensions (H x W x L): 620 x 546 x 363 mm
   • Weight: 27 kg
   • Power Supply: Voltage: 100 – 240 V AC, Frequency: 60/50 Hz

6. Environmental Specs:

   • Operating Temperature: +5 / +40˚C
   • Humidity: 20–85% non-condensing
   • Noise Level: < 72 dB(A)
   • Protection Class: IP21

7. Control and Connectivity:

   • Control Panel: 4-key panel + standby key
   • Display: 128x64 dot graphical LC-display with RGB color backlight
   • Interfaces:
     • Serial RS-232, D-Sub 9
     • USB (2 USB-A, 1 USB-B)
     • Ethernet 10/100/1000 Base-T, RJ-45
     • Optional WLAN with USB stick

8. Signal Interfaces:

   • Standard IO: Basic IO, 24V DC, PNP
   • Optional IO: 8 IO (24V DC, PNP)

9. Font, Barcode, and Graphic Support:

   • Fonts: 17 fonts (including OCR-A and OCR-B), 3 scalable, True Type fonts
   • Barcodes: 1D & 2D, scalable in 16 widths and heights
   • Graphics Formats: BMP, PCX, JPG, TIF, GIF

10. Options and Accessories:

    • Unwinder Pro 300 (with internal OD control)
    • Product start sensor PNP
    • Signal beacon
    • Deviation roller
    • Various label applicators
    • ALX 92x replacement kit (with adapter)

Marketing Approach:

• Highlight Versatility and Compatibility: Emphasize the printer's broad compatibility with various label materials and formats, making it suitable for diverse industrial sectors.
• Speed and Precision: Focus on the high print resolution and speed, providing customers with rapid, clear, and precise labeling solutions.
• Connectivity and Integration: Showcase the advanced connectivity options and seamless integration with existing systems, enhancing workflow efficiency.
• Reliability and Safety: IP21 protection class and robust environmental specifications assure reliability in challenging conditions.
• Customization and Scalability: Offer various options and accessories to customize the solution according to specific customer needs, highlighting scalability.

Selling Points Summary:

• Versatile printing methods (thermal direct and transfer)
• Fast and high-quality printing (300 dpi, up to 300 mm/s)
• Wide range of label material compatibility (60-160 g/m²)
• Flexible control and connectivity options
• Comprehensive barcode and font support
• Reliable performance in diverse environments
• Customization through accessories and options

Feel free to modify or expand this summary as needed, and tailor the marketing approach to the specific audience you're targeting!

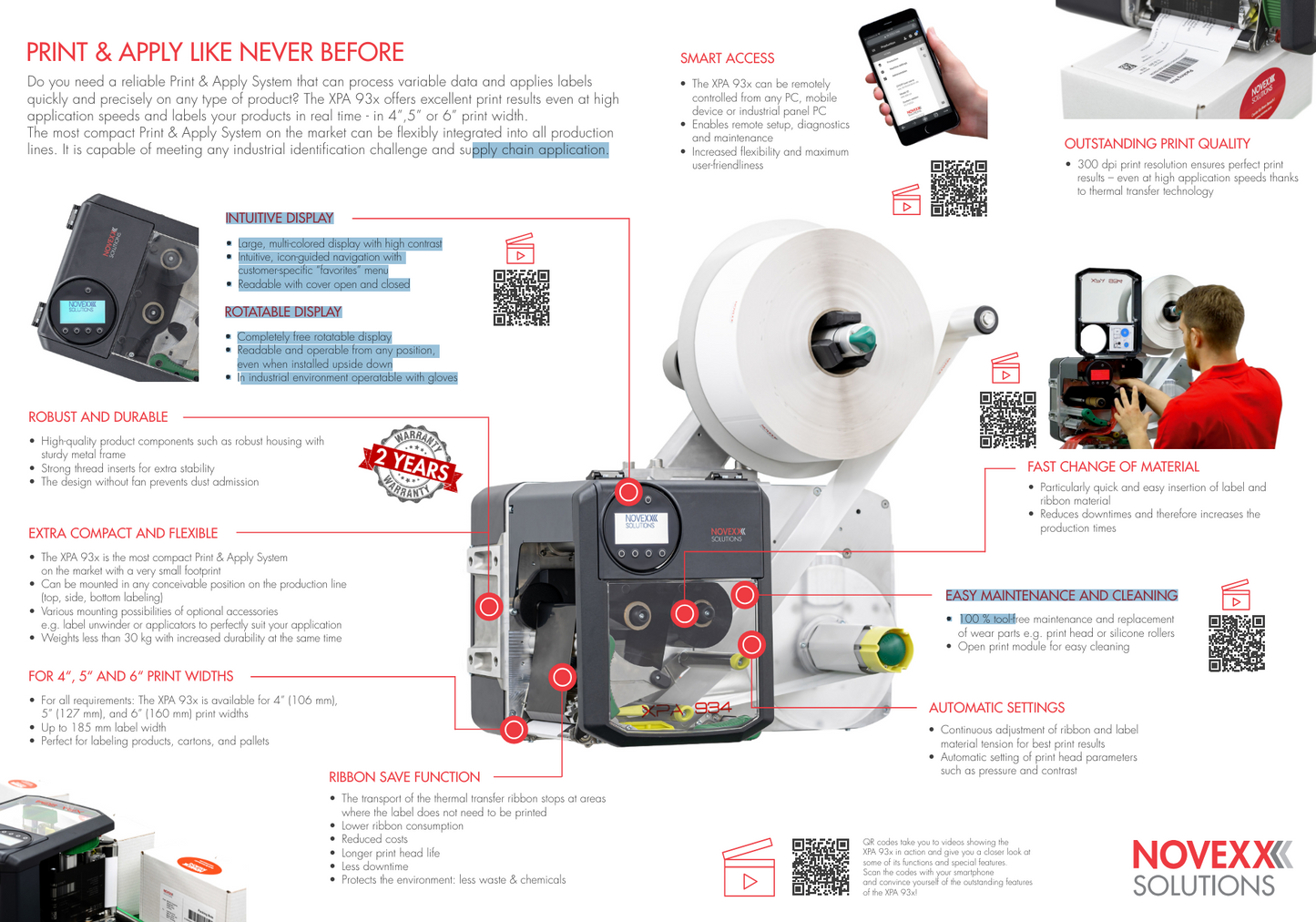

Brochure:

Specs:

Manual:

Spare Parts:

Service Manual:

Front applicator options
