BUS007E - Ultrasonic Sensor
BUS007E - Ultrasonic Sensor
Regular price
$432.86 NZD
Regular price
Sale price
$432.86 NZD
Unit price
/
per
Ultrasonic Sensor with a digital output
M18 Push Pull (NO/NC) M12 Sn:25-250mm.
Compatible Part Numbers:
BUS007E
Typecode / BUS M18M1-GPXI-02/015-S92G-511
Technical Data Of BUS007E:
Style Housing | Ø 18 mm |
Interface | IO-Link 1.1 |

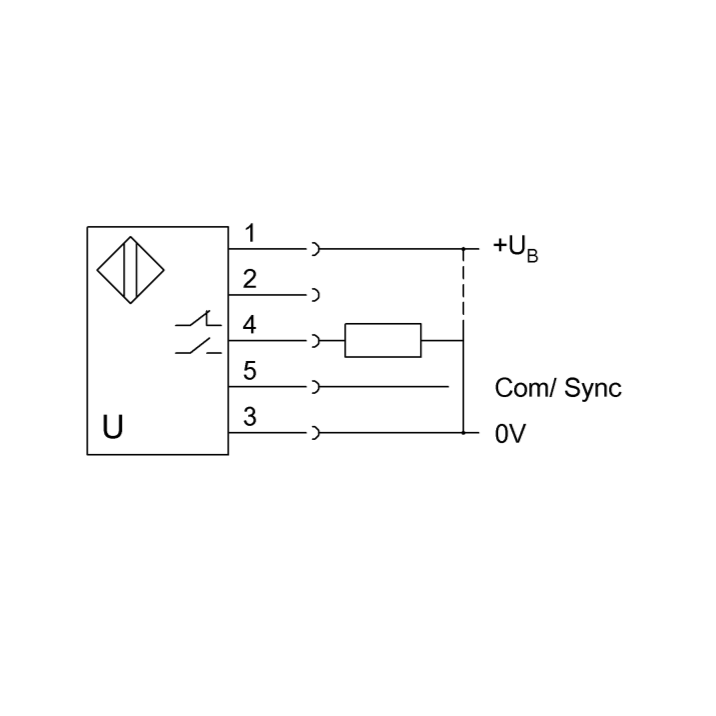

Switching output | PNP/NPN NO/NC push-pull |

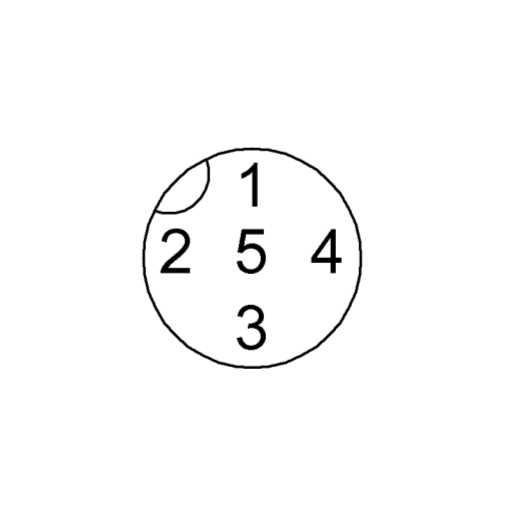

Connection | Connector, M12x1-Male |
Housing material | Brass, nickel-plated |
PBT | |
Material sensing surface | PU foam/Epoxy resin/Glass |
Range | 25...250 mm |
Switching frequency | 25 Hz |
Approval/Conformity | cULus |
CE | |
WEEE | |
UKCA | |
Ambient temperature | -25...70 °C |
IP rating | IP67 |
Repeat accuracy | ± 0.15 %FS |
Operating voltage Ub | 10...30 VDC |
Technical Data Sheet:
1 in stock
