The analog input/output module DVP06XA-S receives external 4-point analog signal input (voltage or current) and converts it into 12-bit digital signals. DVP06XA-S receives two pieces of 12-bit digital data from a PLC and converts the digital data into 2-point analog signal output (voltage or current). There are 49 CRs (control registers) in the module, and each register has 16 bits. A DVP series slim type PLC can read data from DVP06XA-S or write data to DVP06XA-S by means of the instruction FROM/TO.
DVP06XA-S - Analog Module - Delta
DVP06XA-S - Analog Module - Delta
Regular price
$245.32 NZD
Regular price
Sale price
$245.32 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

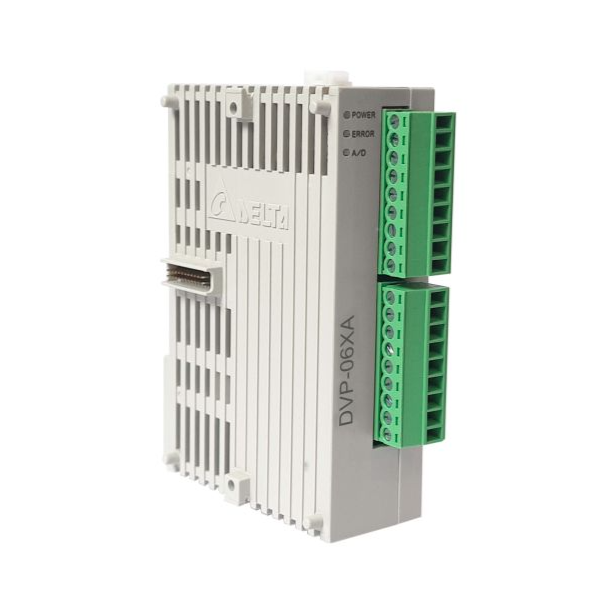

DVP06XA-S - Analog Module
Details: DVP06XA-S
- 4 points of analog input voltage (-10 V ~ +10 V) / current (-20 mA ~ +20 mA)
- 2 points of analog output voltage (0 V ~ +10 V) / current (0 mA ~ +20 mA)
- Input / output resolution: 12-bit
- Built-in RS-485 interface
- Single-ended input
Technical Data Of DVP06XA-S:
| Type |
Expansion Module
|
| Output Type | N.A. |
| Resolution | 12-Bit |
| Input/Output | Mix AI/AO |
| HSC | N.A. |
| Ethernet | NO |
| PTO | N.A. |
Product Data Sheet:
1 in stock
