Gemini 58 series Industrial Inkjet Printer
Gemini 58 series Industrial Inkjet Printer
Discover the Gemini 58: Revolutionizing Industrial Printing
Next shipment due mid July
Contact us to secure your order if you don’t want to miss out.
Transform Your Printing Experience with Advanced Features
Versatile Variable Info Printing:
Unlock limitless possibilities with the Gemini 58! From barcodes and 2D codes to custom images, logos, and counters, this printer handles it all. Adapt to any printing need with its variable database capabilities, ensuring every print is tailored to your specific requirements.
Intelligent Ink Management:
Experience effortless printing with our state-of-the-art printhead heating system. The Gemini 58 not only recommends the best printing parameters but also features an advanced system for measuring ink consumption. This means optimal efficiency and cost-effectiveness in every print job.
Adaptable Printing Heights:
Whether it's a small logo or large text, the Gemini 58 adjusts its printing height from 1.5mm to 15mm based on your message and throw distance. This level of adaptability guarantees perfect prints, no matter the task.
Diverse Printing Contents:
Language and design barriers are a thing of the past! Print in multiple languages including Chinese, English, and Arabic. Dates, batch numbers, shifts, and even complex images/logos are effortlessly imprinted with unmatched clarity.
User-Friendly Icon Guide Interface:
Simplicity meets technology. Our one-touch operation system gets your printer up and running in seconds. When it's time to shut down, the printer automatically flushes the head and powers off, ensuring it's ready for next time. The intuitive interface promises a user-friendly printing experience every time.

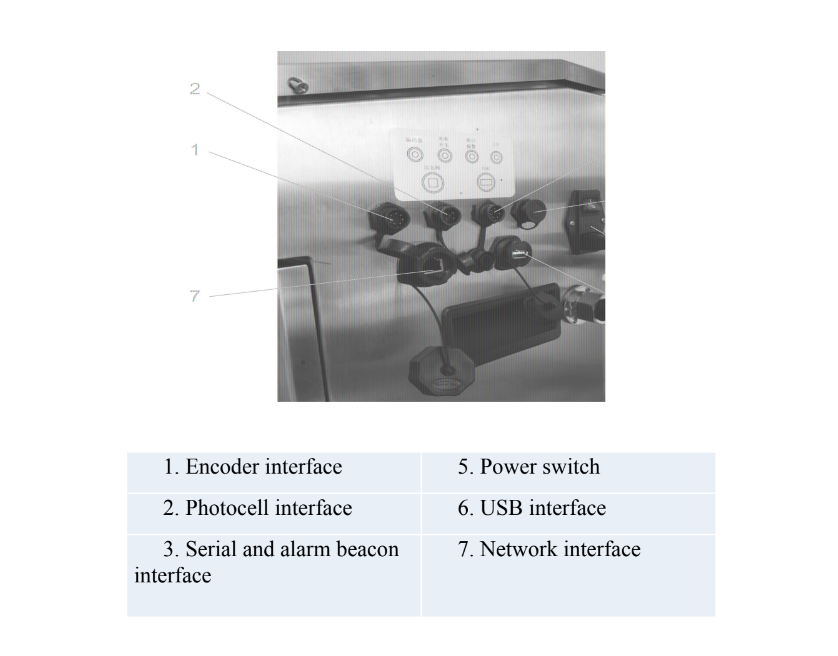

Seamless Connectivity:
Stay connected with built-in Ethernet for easy networking, alongside versatile ports like USB and RS232. The Gemini 58 is designed for the modern workspace, ensuring you're always in sync.
Stable and Reliable Connections:
Dependability is key. That's why the Gemini 58 features Aviation Connectors for more stable, uninterrupted operation, keeping your printing process smooth and consistent.
Auto Cleaning for Uninterrupted Performance:
Say goodbye to clogs and maintenance hassles. The Gemini 58's cleaning pump ensures the nozzle and gutter remain unblocked, guaranteeing a perfect print every time you start.

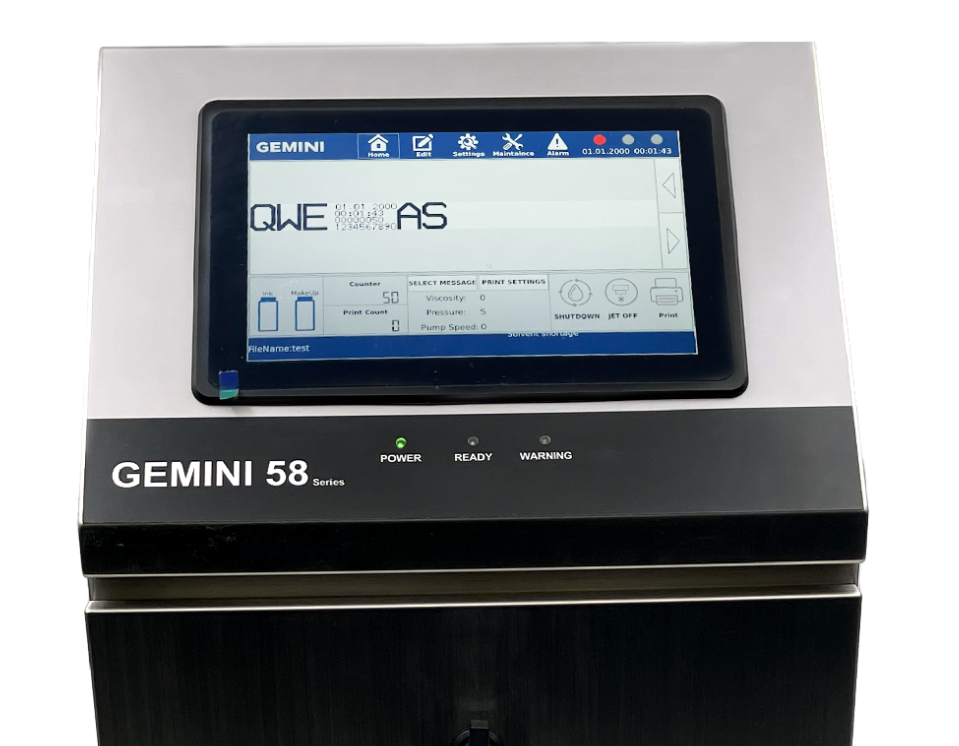

High-Definition, User-Friendly Screen:
Interact with a unique 10.1-inch high-definition screen, boasting a resolution of 1280x800. Editing is a breeze with drag-and-drop functionality, supporting all Windows fonts, vector fonts, and scalable fonts.
Powerful Core for Speed and Efficiency:
At the heart of the Gemini 58 is a powerful, efficient core board, enabling faster processing for even the most demanding tasks. Plus, the enhanced dot matrix function adds dynamic delivery to your font choices.
Feature Category | Details |
---|---|
Variable Information Printing | Barcode/2D code, image/logo, counter, variable database, etc. |
Intelligent Ink Management | Printhead heating system; automatic printing parameter recommendation; ink consumption measuring system. |
Printing Height | 1.5mm - 15mm, variable based on message & throw distance. |
Printing Contents | Chinese, English, Arabic, Number, Date, Batch, Shift, Image/logo, Exp, MFD, Counter, etc. |
Icon Guide Operation Interface | Simplified one-touch operation; automatic flush and power-off; intuitive Icon Guide Operation Interface. |
Port & Communication | Built-in Ethernet, USB, RS232, etc. |
Aviation Connector | Reliable Aviation Connectors for stability. |
New Head with Auto Cleaning | Cleaning pump for nozzle and gutter maintenance; unblocks ink streamline. |
Screen & Interface | 10.1-inch high-definition screen (1280x800); drag-and-drop editing; supports all Windows fonts and vector fonts. |
Core Board & Fonts | 4-core processor (1.4GHz); scalable fonts; dynamic dot matrix function. |
Control Unit | Qt.10.1 Inch LVDS High Resolution touchscreen; 4-Core Processor, 1.4GHz CPU, 1G RAM, 8G EMMC; Stainless Steel (304), IP55 cabinet. |
Software Specifications | Multi-language support; dynamic printing of 140 types of codes; remote software updates; up to 5 print lines; various font sizes; printing speed up to 285m/min; max printing height 1.8mm - 15mm. |
Ink System | Intelligent ink management; automatic viscosity and bleed control; Intelligent Hydraulic System; MODBUS protocol. |
Standard Connections | Product detector; shaft encoder; alarm beacon connector; USB, Ethernet, I/O interface. |
Technical specifications for the Gemini 58:
Category | Specification |
---|---|
Control Unit | |
Control Panel | Qt.10.1 Inch LVDS High Resolution, big touchscreen |
Hardware | 4-Core Processor, 1.4GHz CPU with 1G RAM, 8G EMMC |
Cabinet | Stainless Steel (304), IP55 design |
Software Specifications | |
Multi-language Support | English, Arabic, Russian, Japanese, Persian, etc. |
Printing Contents | Dynamic printing of 140 types of codes and images |
Software Update | Easy remote updates |
Print Lines | Up to 4 lines (7x5 dot), up to 5 lines (5x5 dot) |
Fonts Size | Multiple options from 5x5 to 24x32 |
Printing Speed | Up to 285m/min |
Printing Throw Distance | Up to 30mm |
Printing Height | 1.8mm - 15mm |
Ink System | |
Intelligent Ink Managing | Automated ink consumption measurement |
Viscosity Control | Automatic |
Hydraulic System | Intelligent system ensuring ink integrity |
Protocol | MODBUS Standard |
Standard Connection | |
Product Detector | Compatible with various sensors |
Shaft Encoder | Npn/pnp encoder support |
Alarm Beacon Connector | Included |
Other Ports | USB, Ethernet, I/O interface, etc. |
Working Environment | |
Temperature Range | -5°C to 45°C |
Humidity | 30% to 95% RH (non-condensing) |
Electrical Requirements | Single phase, 100-250V, 47-643Hz |
Dimensions | |
Cabinet | 370mm x 310mm x 510mm |
Print Head | 230mm x 44mm x 41mm |
Conduit | 3M Umbilical cord standard |
5 in stock
