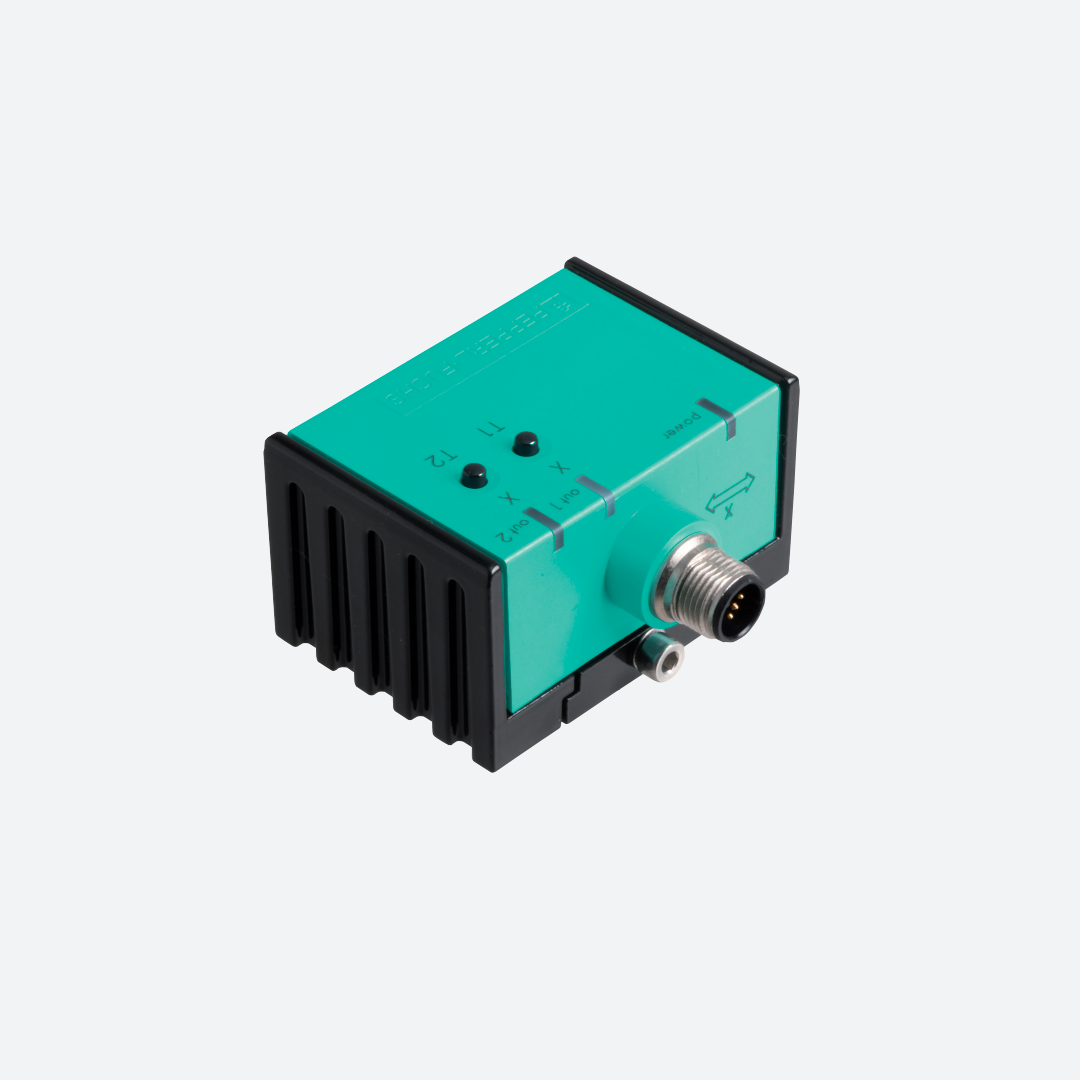

Inclination Sensor, INX360D-F99-I2E2-V15 / PF 201503
- E1-Type approval
- Measuring range 0 ... 360°
- Analog output 4 mA ... 20 mA
- Evaluation limits can be taught-in
- 2 programmable switch outputs
- High shock resistance
- Increased noise immunity 100 V/m
Details: INX360D-F99-I2E2-V15 / PF 201503
Compatible Part Numbers:
INX360D-F99-I2E2-V15
201503
Technical Datasheet:
Datasheet excerpt: Technical data of INX360D-F99-I2E2-V15 / PF 201503
| General specifications | ||
|---|---|---|
| Type | Inclination sensor, 1-axis | |
| Measurement range | 0 ... 360 ° | |
| Absolute accuracy | ≤ ± 0.5 ° | |
| Response delay | ≤ 20 ms | |
| Resolution | ≤ 0.1 ° | |
| Repeat accuracy | ≤ ± 0.1 ° | |
| Temperature influence | ≤ 0.027 °/K | |
| Functional safety related parameters | ||
| MTTFd | 300 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED, green | |
| Teach-in indicator | 2 LEDs yellow (switching status), flashing | |
| Button | 2 push-buttons ( Switch points programming , Evaluation range programming ) | |
| Switching state | 2 yellow LEDs: Switching status (each output) | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| No-load supply current | ≤ 25 mA | |
| Time delay before availability | ≤ 200 ms | |
| Switching output | ||
| Output type | 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected | |
| Operating current | ≤ 100 mA | |
| Voltage drop | ≤ 3 V | |
| Analog output | ||
| Output type | 1 current output 4 ... 20 mA | |
| Load resistor | 0 ... 200 Ω at UB = 10 ... 18 V 0 ... 500 Ω at UB = 18 ... 30 V |
|
| Compliance with standards and directives | ||
| Standard conformity | ||
| Shock and impact resistance | 100 g according to DIN EN 60068-2-27 | |
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
|
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| E1 Type approval | 10R-04 | |
| Ambient conditions | ||
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | 5-pin, M12 x 1 connector | |
| Housing material | PA | |
| Degree of protection | IP68 / IP69K | |
| Mass | 240 g | |
| Dimensions | ||
| Height | 37 mm | |
| Width | 45 mm | |
| Length | 65 mm | |
| Factory settings | ||
| Switching output 1 | -30 ° ... 30 ° | |
| Switching output 2 | -30 ° ... 30 ° | |
| Analog output | -45 ° ... 45 ° | |
