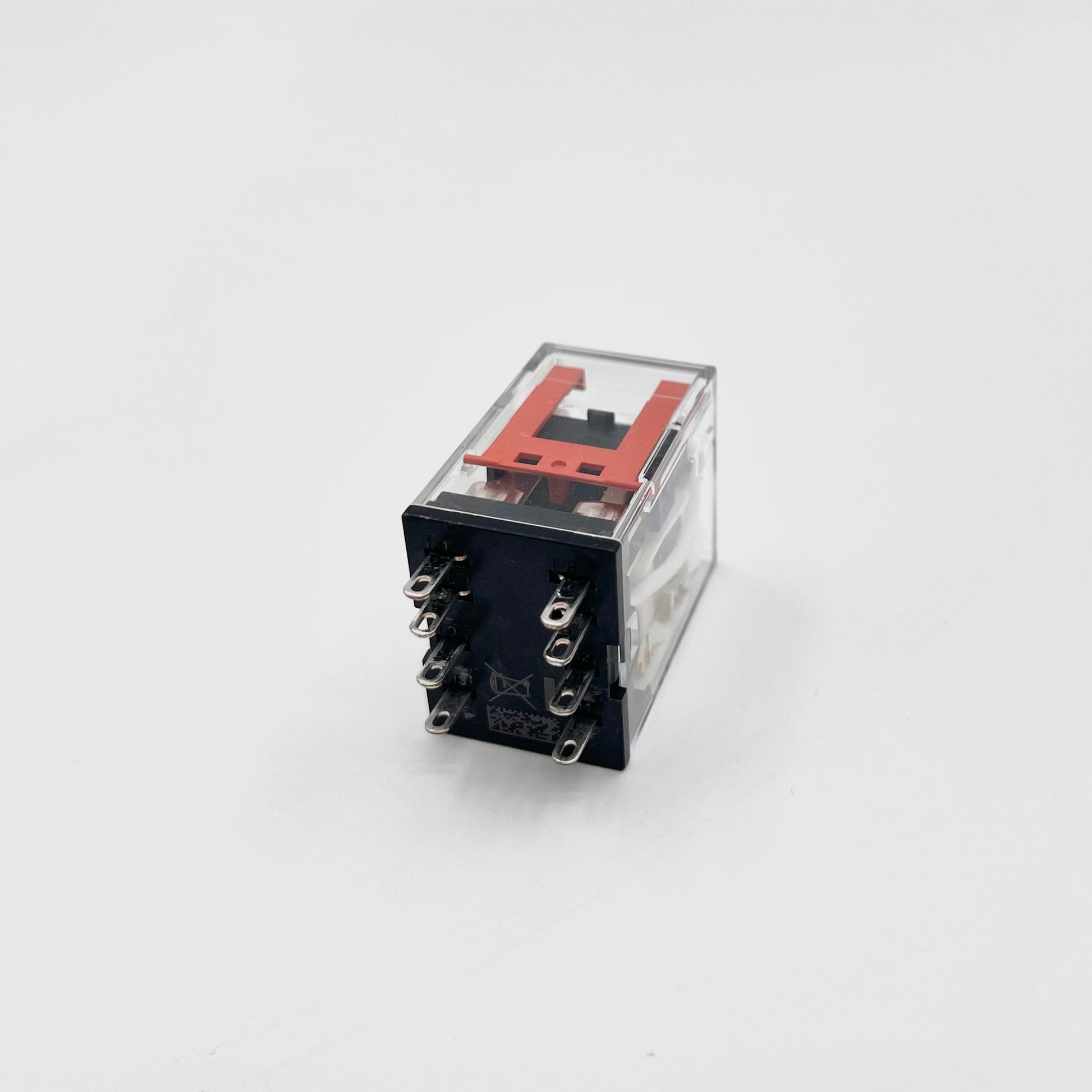

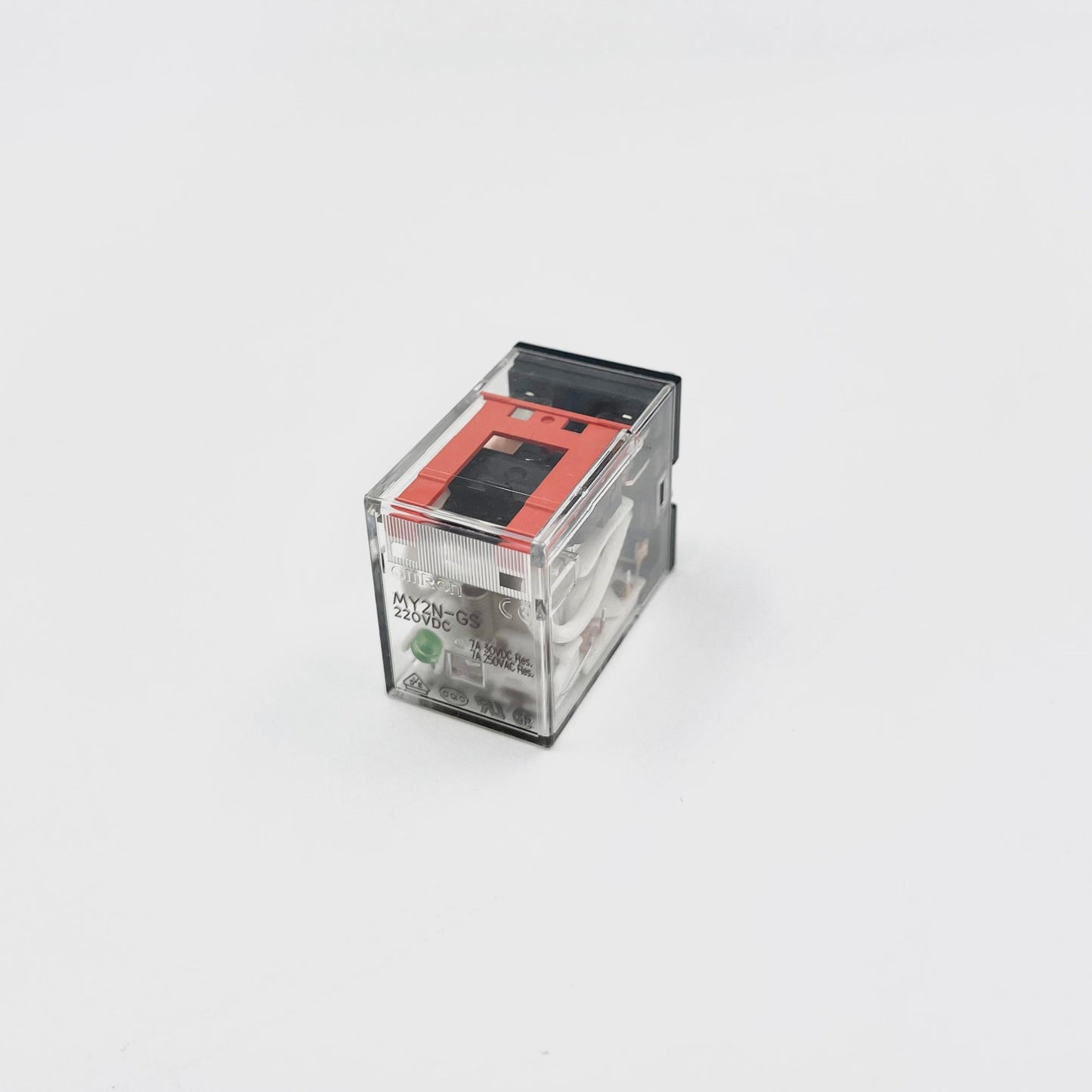

Omron Non-Latching Power Relay - MY2N-GS 220 VDC
The Omron MY2N-GS 220 VDC is a reliable and durable general-purpose relay designed for industrial and commercial applications. It features a 220V DC coil voltage and a double-pole, double-throw (DPDT) contact configuration, offering precise and efficient electrical switching for various load requirements. With a transparent housing for easy visual inspection and a high switching capacity, the MY2N-GS ensures stable performance and long service life in demanding environments.
Part of the MY series, the MY2N-GS 220 VDC relay is known for its robust construction and secure mounting. It is commonly used in control panels, automation systems, and industrial equipment where dependable relay operation is crucial. The MY series relays provide a combination of high performance, reliability, and ease of use, making them a trusted choice for applications requiring efficient and durable switching control.
| Item | Rated current (mA) |
Coil
resis- tance (Ω) |
Power
consumption (VA, W) |
||
| Rated voltage | 50 Hz | 60 Hz | |||
|
AC
|
12 | 106.5 | 91 | 46 |
Approx. 0.9 to
1.3 (at 60 Hz) |
| 24 | 53.8 | 46 | 180 | ||
| 48 | 25.7 | 21.1 | 788 | ||
| 100/110 | 11.7/12.9 | 10.0/11.0 | 3,750 | ||
| 110/120 | 9.9/10.8 | 8.4/9.2 | 4,430 | ||
| 200/220 | 6.2/6.8 | 5.3/5.8 | 12,950 | ||
| 220/240 | 5.2/6.2 | 4.3/5.0 | 15,920 | ||
|
DC
|
6 | 146 (151) | 41.0 (39.8) |
Approx. 0.9
|
|
| 12 | 72.7 (75) | 165 (160) |
|||
| 24 | 36.3 (37.7) | 662 (636) |
|||
| 48 | 17.6 (18.8) | 2,725 (2,560) |
|||
| 100/110 | 8.7 (9.0)/9.6 (9.9) | 11,440 (11,100) |
|||
| 220 | 3.6 | 60,394 | Approx. 0.8 | ||
| Coil inductance (H) |
Must- operate voltage |
Must- release voltage |
Maxi- mum voltage |
||
| Armature OFF |
Armature ON |
Percentage of rated voltage | |||
| 0.17 | 0.33 |
80%
max. *1 |
30%
min. *2 |
110%
|
|
| 0.69 | 1.3 | ||||
| 3.22 | 5.66 | ||||
| 14.54 | 24.6 | ||||
| 19.2 | 32.1 | ||||
| 54.75 | 94.07 | ||||
| 83.5 | 136.4 | ||||
| 0.17 | 0.33 |
10%
min. *2 |
|||
| 0.73 | 1.37 | ||||
| 3.2 | 5.72 | ||||
| 10.6 | 21 | ||||
| 45.6 | 86.2 | ||||
| 362.3 | 452.9 | ||||
Compatible Part Numbers:
Omron Power Relay 220V
MY2N-GS 220 VDC
Technical Datasheet:
