9401 10*10 - PF 045018 - Coupling
9401 10*10 - PF 045018 - Coupling
Price (exc. GST) each
Couldn't load pickup availability
Coupling, 9401 10*10 - PF 045018
- Universally suitable for backlash-free rotation transmission.
- Highly vibration-isolating.
- Well misalignment compensation.
- Low torsion spring stiffness.
- Small reset forces.
- No movable parts.
- Very rugged construction.
Details: 9401 10*10 - PF 045018

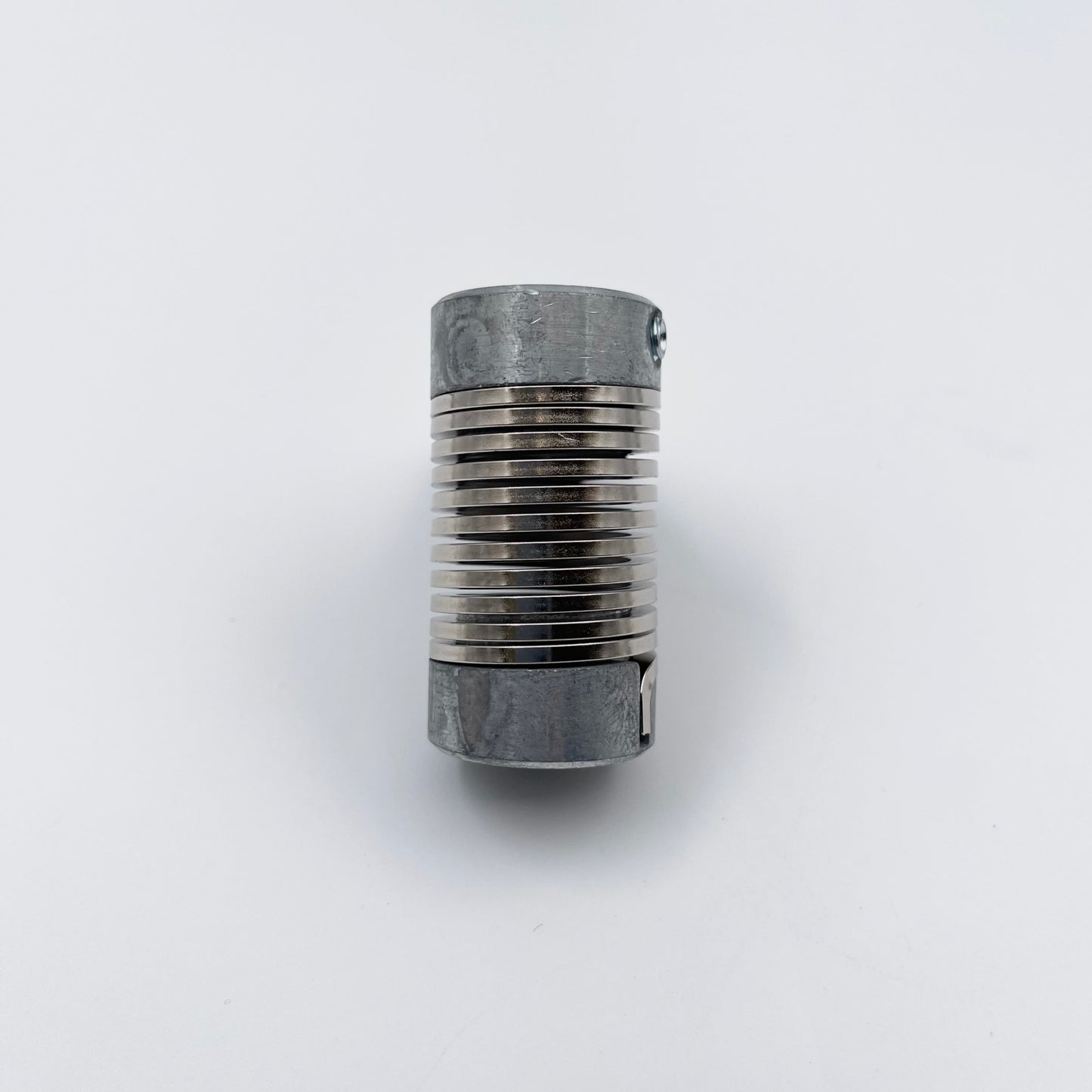

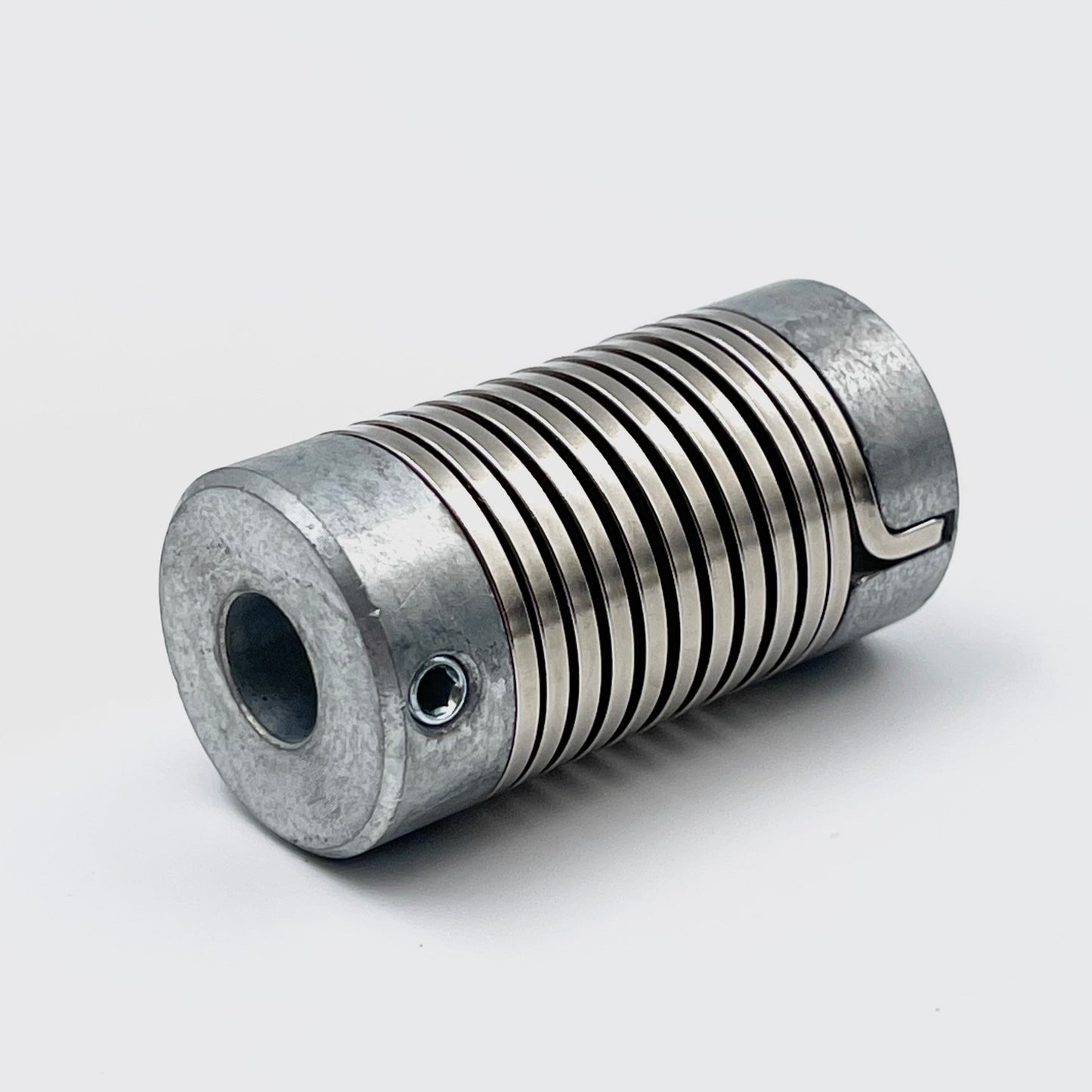

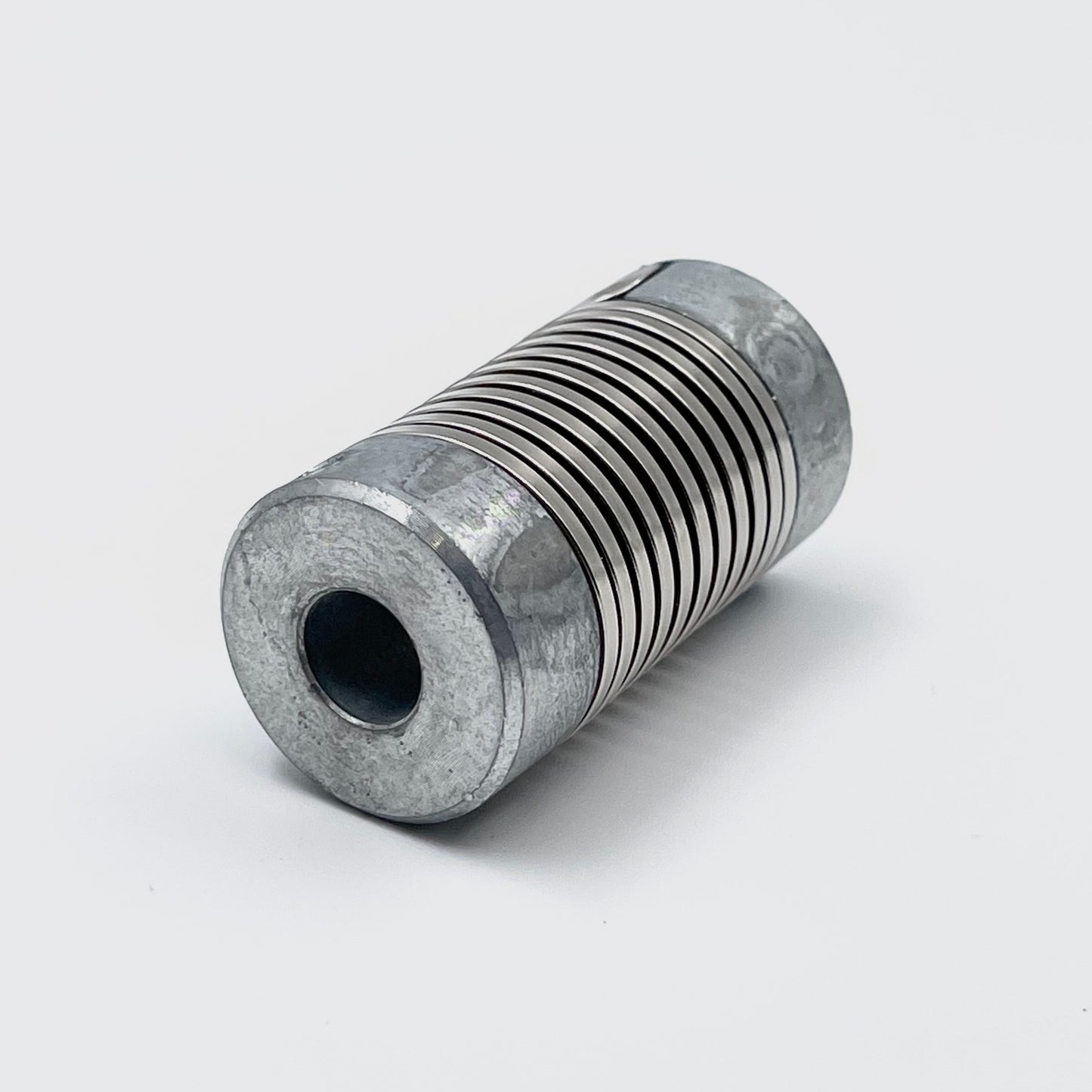

Spring steel coupling.
Compatible Part Numbers:
045018
9401 10*10
70120104-100026
ACC-CSP-50262S1-1010
Technical Data Sheet:
Datasheet excerpt: Technical data of 9401 10*10 - PF 045018
|
Ambient conditions |
||
|
Operating temperature |
-30 ... 120 °C (-22 ... 248 °F) |
|
|
Mechanical specifications |
||
|
Shaft diameter |
d1 = 10 mm , d2 = 10 mm |
|
|
Material |
||
|
Spring |
spring steel, nickel plated |
|
|
End piece |
Diecast zinc |
|
|
Mass |
100 g |
|
|
Rotational speed |
max. 3000 min |
|
|
Max. torque |
1.5 Nm |
|
|
Tightening torque, fastening screws |
1.2 Nm |
|
|
Radial offset |
max. ± 1.5 mm |
|
|
Axial offset |
max. ± 1 mm |
|
|
Angle error |
max. ± 5 ° |
|
|
Torsion angle |
at torque 0.75 Nm drive shaft view |
|
|
CW rotation direction |
40 ° |
|
|
CCW rotation direction |
60 ° |
|
|
Moment of inertia |
95 kg m2 x 10-7 |
|
|
Mounting |
clamp screws M5 x 6, DIN 916 |
|
|
Tightening torque of clamping screws |
max. 3 Nm |
|
Classifications
|
System |
Classcode |
|
ECLASS 13.0 |
27270592 |
|
ECLASS 12.0 |
27270592 |
|
ECLASS 11.0 |
27270592 |
|
ECLASS 10.0.1 |
27270592 |
|
ECLASS 9.0 |
27270592 |
|
ECLASS 8.0 |
27279103 |
|
ECLASS 5.1 |
27270591 |
|
ETIM 9.0 |
EC003015 |
|
ETIM 8.0 |
EC003015 |
|
ETIM 7.0 |
EC003015 |
|
ETIM 6.0 |
EC003015 |
|
ETIM 5.0 |
EC003015 |
|
UNSPSC 12.1 |
23153016 |
2 in stock
