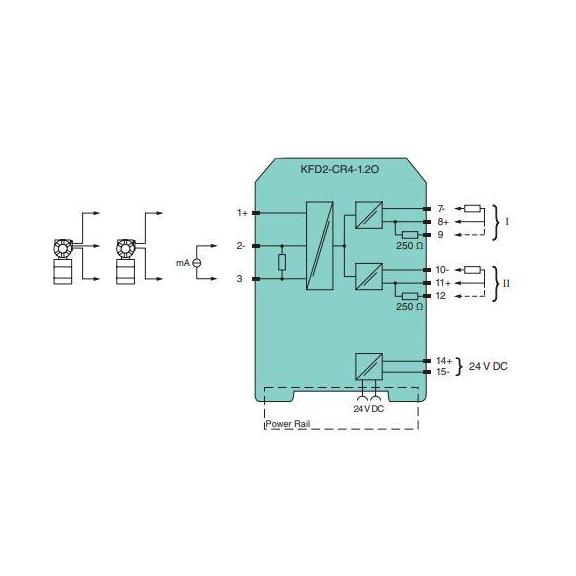

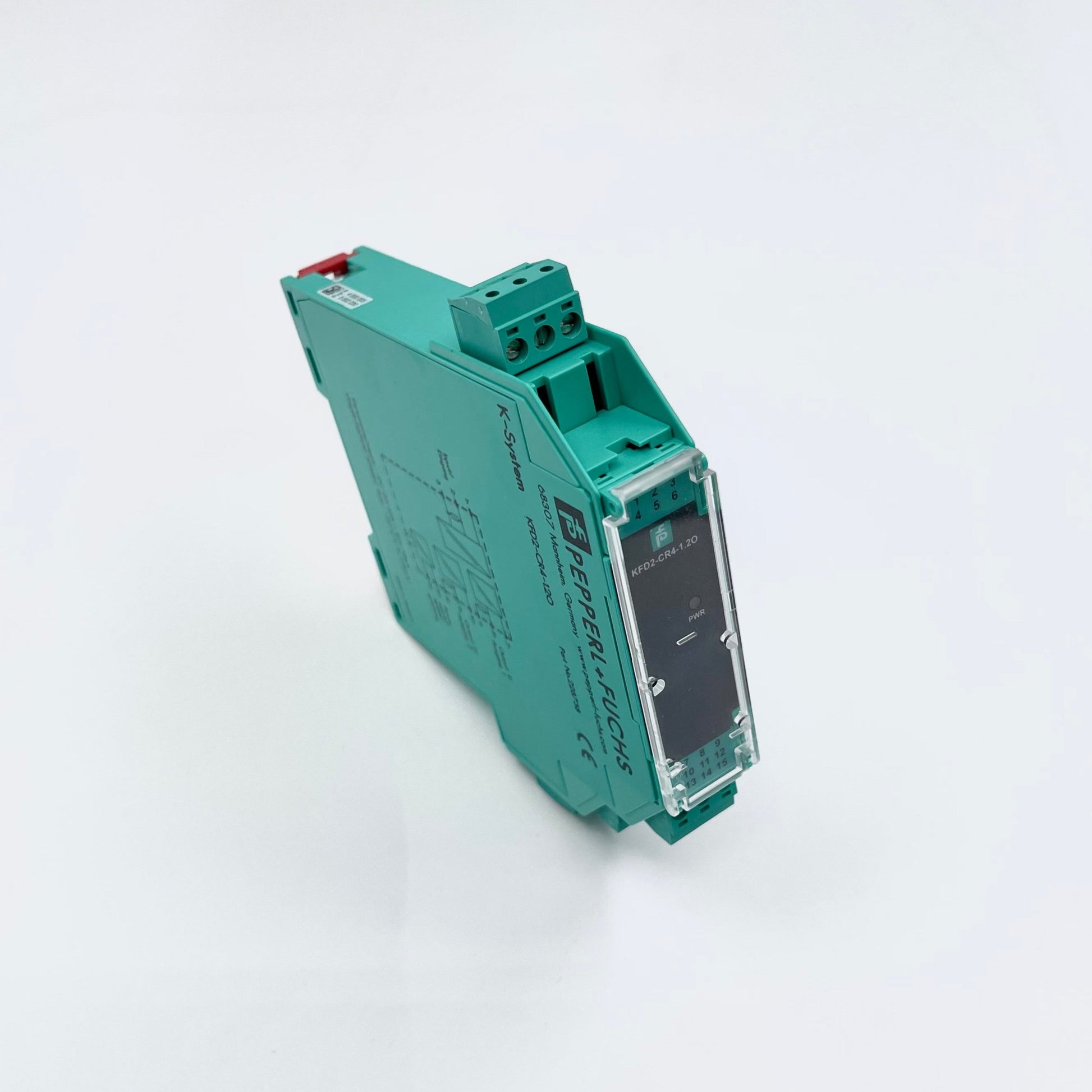

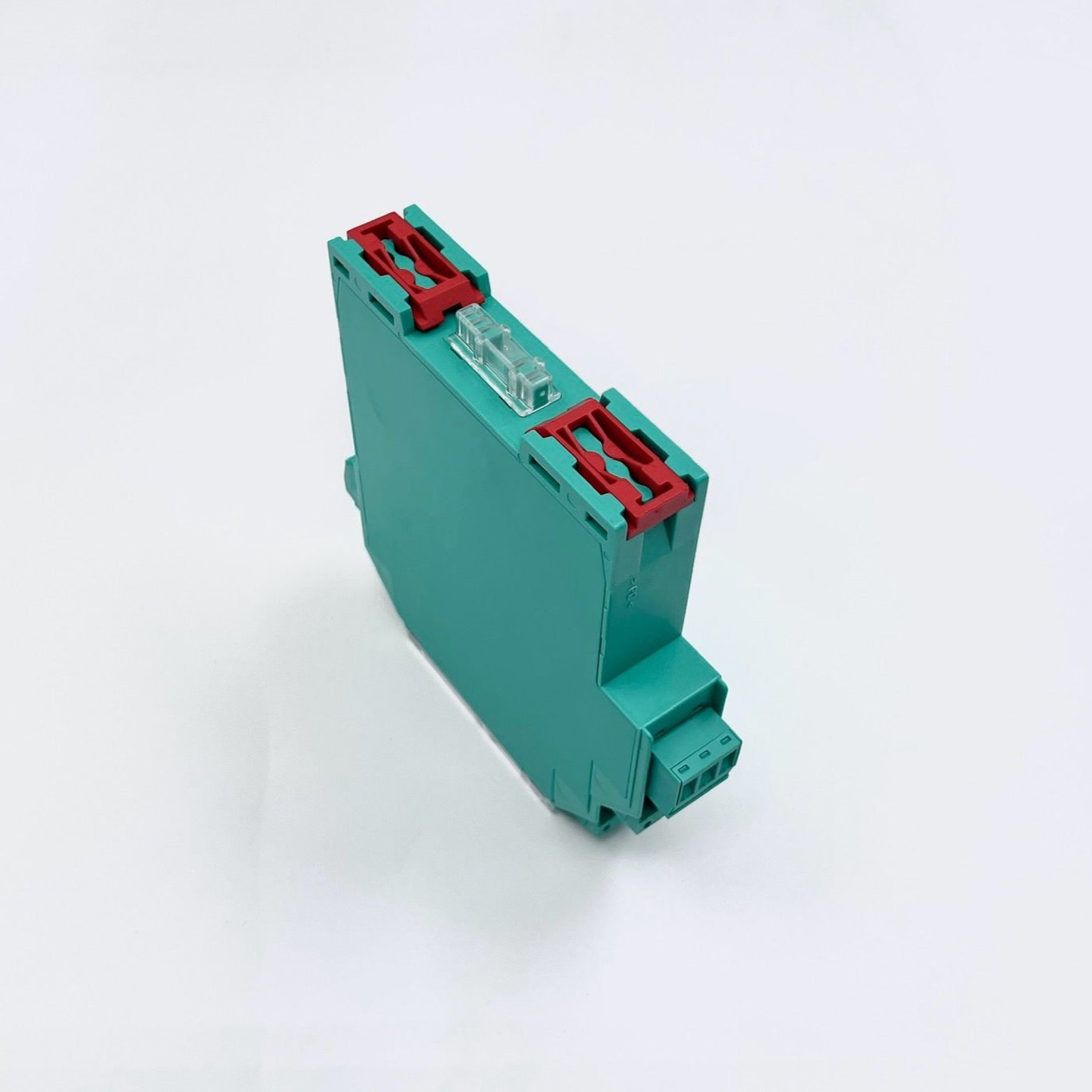

Transmitter Power Supply, KFD2-CR4-1.20 / PF 228758
- 1-channel signal conditioner.
- 24 V DC supply. (Power Rail)
- Input 2-wire and 3-wire transmitters and 2-wire current sources.
- Signal splitter. (1 input and 2 outputs)
- Dual output 0/4 mA ... 20 mA.
- Accuracy 0.1 %
- Up to SIL3 acc. to IEC 61508.
Details: KFD2-CR4-1.20 / PF 228758
Input 0/4 mA ... 20 mA Output 0/4 mA ... 20 mA.
Compatible Part Numbers:
228758
KFD2-CR4-1.2O
Technical Data Sheet:
Datasheet excerpt: Technical data of KFD2-CR4-1.20 / PF 228758
| General specifications | ||
|---|---|---|
| Signal type | Analog input | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Supply | ||
| Connection | Power Rail or terminals 14+, 15- | |
| Rated voltage | 20 ... 32 V DC | |
| Ripple | within the supply tolerance | |
| Power dissipation | 1.8 W | |
| Power consumption | 2.4 W | |
| Input | ||
| Connection side | field side | |
| Connection | terminals 1, 2, 3 | |
| Input signal | 0/4 ... 20 mA | |
| Open circuit voltage/short-circuit current | terminals 1+, 3-: 22.7 V / 38 mA | |
| Input resistance | terminals 2-, 3: max. 85 Ω | |
| Available voltage | terminals 1+, 3: ≥ 16 V at 20 mA | |
| Ripple | 50 mV ss at 20 mA | |
| Output | ||
| Connection side | control side | |
| Connection | terminals 7-, 8+,9; 10-, 11+,12 | |
| Load | 0 ... 550 Ω | |
| Output signal | 0/4 ... 20 mA | |
| Ripple | max. 50 µA rms | |
| Transfer characteristics | ||
| Deviation | at 20 °C (68 °F), 0/4 ... 20 mA ≤ 10 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage |
|
| Influence of ambient temperature | 0.25 µA/K | |
| Rise time | 20 µs | |
| Settling time | 200 µs | |
| De-energized delay | 20 µs | |
| Galvanic isolation | ||
| Input/Output | basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff | |
| Input/power supply | basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff | |
| Output/power supply | functional insulation, rated insulation voltage 50 V AC | |
| Output/Output | functional insulation, rated insulation voltage 50 V AC | |
| Indicators/settings | ||
| Display elements | LED | |
| Labeling | space for labeling at the front | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) | |
| Conformity | ||
| Electromagnetic compatibility | NE 21:2011 | |
| Degree of protection | IEC 60529:2001 | |
| Protection against electrical shock | EN 61010-1:2010 | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | screw terminals | |
| Mass | approx. 150 g | |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) , housing type B2 | |
| Height | 119 mm | |
| Width | 20 mm | |
| Length | 115 mm | |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 | |
| General information | ||
| Note | Both output loads must be connected to ensure complete and correct operation within the technical specification. | |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. | |
