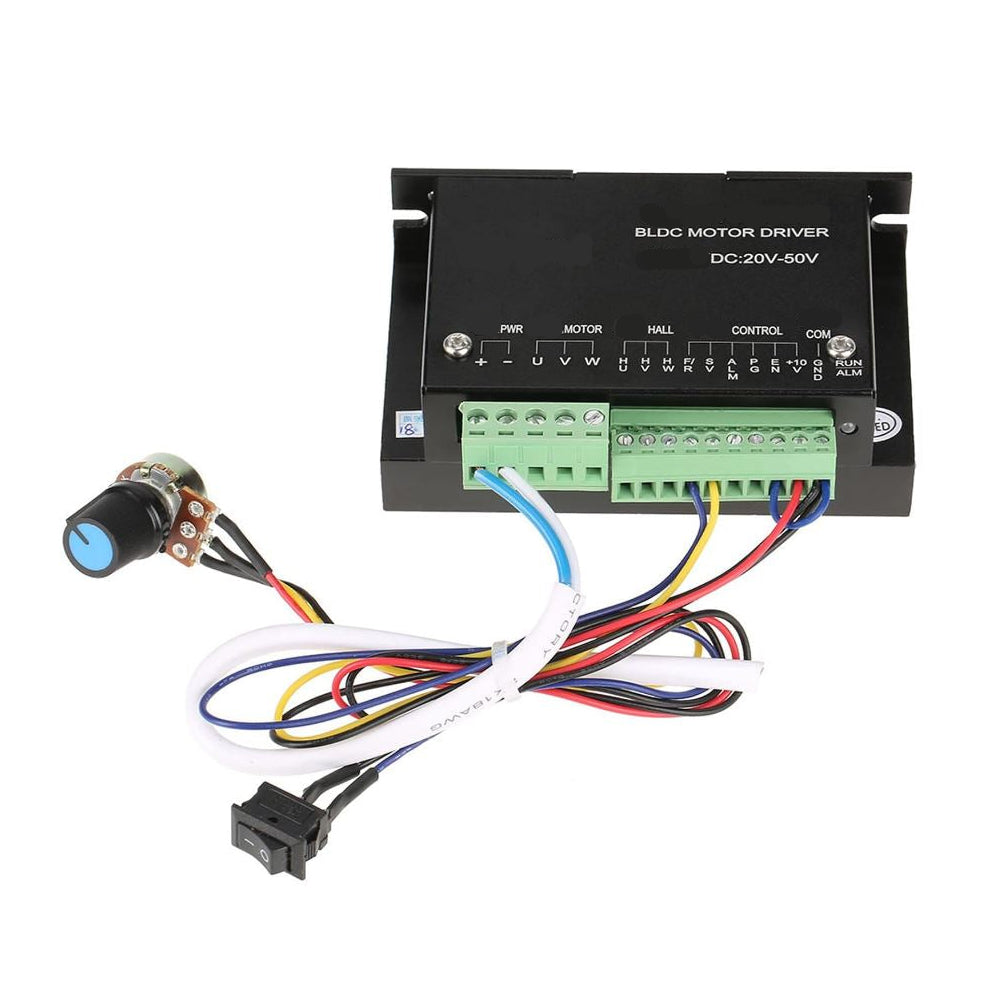

ST Motor Controller - STBLDC55

ST Motor Controller 20V to 50V

The controller can drive the DLDC motor with HALL or without HALL

This controller can be used in small equipment, Electric Power Tools, exhaust Fan, Jade grinding machine, Vibrating motor etc

The driver is based on advanced technology and be provided with high speed, high , low noise, low vibration, over current , overload , less phase line. Phase line short , alarm output, speed output.

Details:

• STBLDC55 is a high performance,cost-effective 3 phase BLDC motor controller.
• Voltage range is from 20VDC to 50VDC
• The controller can drive the DLDC motor with HALL or without HALL
• The driver is based on advanced technology and be provided with high speed, high , low noise, low vibration, over current , overload , less phase line. , phase line short , alarm output, speed output,
• This controller can be used in small equipment, Electric Power Tools, exhaust Fan, Jade grinding machine, Vibrating motor etc
• External potentiometer control/external voltage control

Key Feautres

Speed Regulation Modes:

• External Potentiometer: Adjust speed through an external potentiometer.
• External Voltage: Regulate speed using an external 10V DC voltage.
• Note: Only one mode can be used at a time.

Speed Output PG:

• 5V revolution pulse output for monitoring.
• Output frequency calculation: $P = \frac{F \times N}{60}$ (where $F$ is RPM and $N$ is motor class logarithm).

Alarm Output ALM:

• 5V alarm pulse output for notifications.

Positive Inversion Function:

• Change motor direction using a toggle switch (vertical/horizontal operation).

Start-Stop Control Modes:

• External Switch EN: Start/stop via external switch.
• Side Toggle Switch EN: Start via toggle switch in vertical or horizontal position.
• Note: Only one control method can be active at a time.

Locked-Rotor Protection:

• Automatically restarts motor after a power cycle if stopped.

Power and Status Indicators:

• Power Light: Green light indicates power is on.
• Status Light: Red light flashes twice in standby and turns off when running.

Insulation Specifications:

• Insulation resistance: >100MΩ at standard conditions.
• Insulation strength: 0.5KV for 1 minute at normal temperature and pressure.

Package Includes:

• 1 x Motor Driver Controller with cable.

Compatible Part Numbers:

STBLDC55
