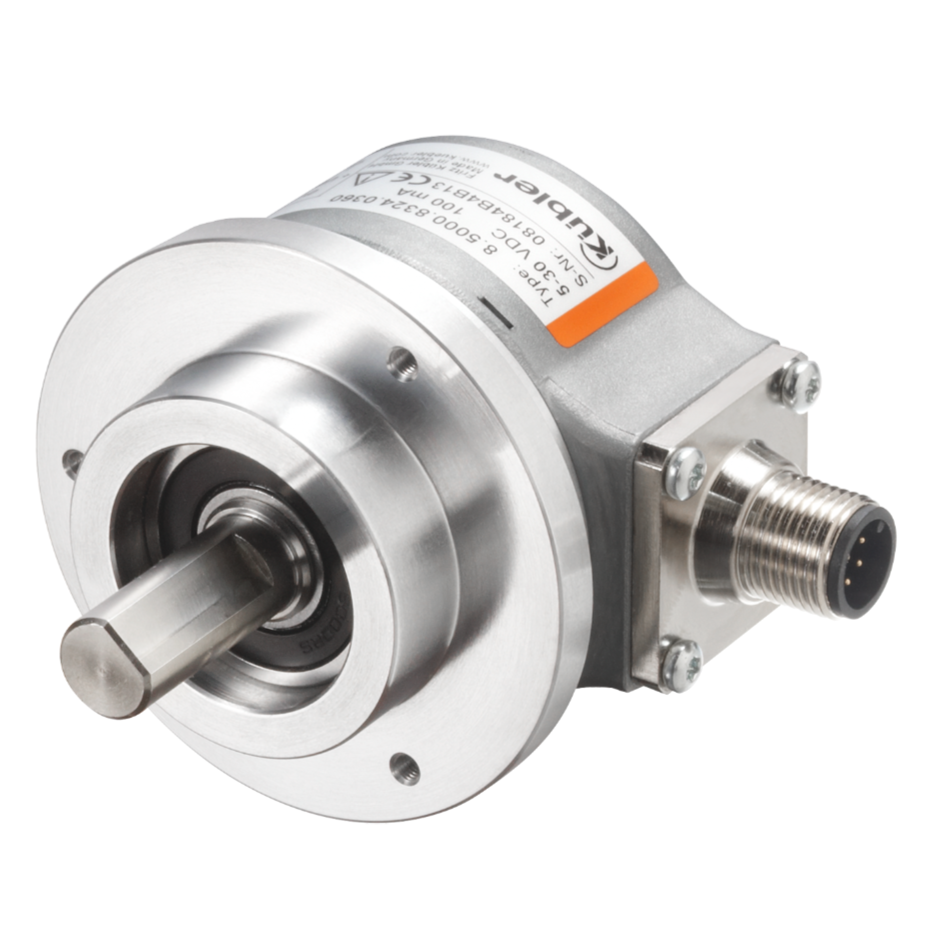

STK5000 - Encoder

The Standard Incremental Encoder For Automation

Sendix 5000 / 5020 incremental encoders offer special resistance to vibrations and installation error due to their robust bearing construction using the Safety Lock™ design. The stable die-cast housing, the high protection up to IP67 and the wide temperature range from -40 °C to +85 °C allow universal use. This family of encoders is subject to continuous technical development and now offers a unique variety of ordering options.

Dimension Ø 50 mm

Flange - 8 = clamping flange, IP65 ø 58 mm [2.28“]

Shaft - 3 = ø 10 x 20 mm [0.39 x 0.79“]

Output circuit (with inverted signal) / supply voltage - 5 = push-pull / 10 ... 30 V DC

Type of connection – connector - 4 = radial M12 connector, 8-pin

Pulse rate - 5000

Compatible Part Number:

8.5000.8354.5000
