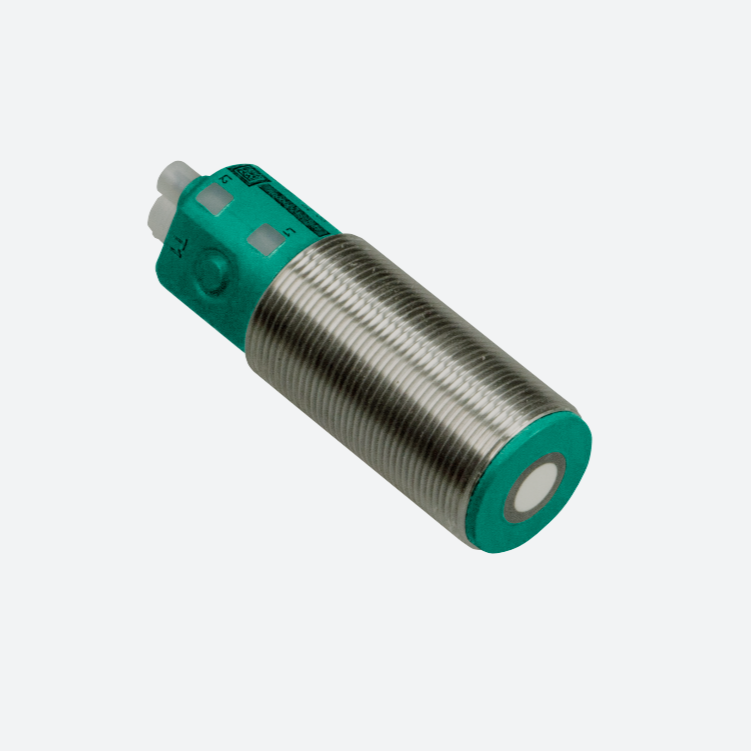

UC500-30GM-2EP-IO-V15 / PF 191242 - Ultrasonic Sensor

UC500-30GM-2EP-IO-V15 / PF 191242 - Ultrasonic Sensor

$843.24 NZD
$843.24 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Ultrasonic Sensor, UC500-30GM-2EP-IO-V15 / PF 191242

  • IO-Link interface for service and process data
  • Programmable via DTM with PACTWARE
  • 2 programmable switch outputs
  • Selectable sound lobe width
  • Synchronization options
  • Temperature compensation

Details: UC500-30GM-2EP-IO-V15 / PF 191242

Single head system

Compatible Part Numbers:

191242

UC500-30GM-2EP-IO-V15

Technical Datasheet:

Datasheet excerpt: Technical data of  UC500-30GM-2EP-IO-V15 / PF 191242

General specifications
Sensing range 30 ... 500 mm
Adjustment range 50 ... 500 mm
Dead band 0 ... 30 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 380 kHz
Response delay minimum : 25 ms
factory setting: 45 ms
Memory
Non-volatile memory EEPROM
Write cycles 100000
Indicators/operating means
LED green solid: Power on
flashing: Standby mode or IO link communication
LED yellow 1 solid: Object in evaluation range
flashing: Learning function, object detected
LED yellow 2 solid: Object in evaluation range
flashing: Learning function, object detected
LED red solid red: Error
red, flashing: program function, object not detected
Electrical specifications
Operating voltage 10 ... 30 V DC , ripple 10 %SS
No-load supply current ≤ 60 mA
Power consumption ≤ 1 W
Time delay before availability ≤ 100 ms
Interface
Interface type IO-Link
Protocol IO-Link V1.0
Transfer rate Acyclical: typical 240 Bit/s
Cycle time min. 13.2 ms
Mode COM2 (38.4 kBit/s)
Process data width 16 bit
SIO mode support yes
Input/Output
Input/output type 1 synchronization connection, bidirectional
0 Level 0 ... 1 V
1 Level 4 V ... UB
Input impedance > 12 kΩ
Output current < 12 mA
Pulse length 0.5 ... 300 ms (level 1)
Pulse interval ≥ 14 ms (level 0)
Synchronization frequency
Common mode operation ≤ 70 Hz
Multiplex operation ≤ 90 Hz / n , n = number of sensors , n ≤ 10
(factory setting: n = 5 )
Output
Output type 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected
Rated operating current 200 mA , short-circuit/overload protected
Voltage drop ≤ 2.5 V
Repeat accuracy ≤ 0.1 % of full-scale value
Switching frequency ≤ 11 Hz
Range hysteresis 1 % of the adjusted operating range (default settings), programmable
Temperature influence ≤ 1.5 % from full-scale value (with temperature compensation)
≤ 0.2 %/K (without temperature compensation)
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2:2020
IEC 60947-5-2:2019
Approvals and certificates
UL approval cULus Listed, Class 2 Power Source
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 5-pin
Degree of protection IP67
Material
Housing Stainless steel 1.4305 / AISI 303
TPU
Polyamides
Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass 66 g
Dimensions
Length 93 mm
Diameter 30 mm
Factory settings
Output 1 near switch point: 50 mm
far switch point: 500 mm
output function: Window mode
output behavior: NO contact
Output 2 near switch point: 100 mm
far switch point: 250 mm
output function: Window mode
output behavior: NO contact
Beam width wide



Classifications

System Classcode
ECLASS 13.0 27272803
ECLASS 12.0 27272803
ECLASS 11.0 27272803
ECLASS 10.0.1 27272803
ECLASS 9.0 27272803
ECLASS 8.0 27272803
ECLASS 5.1 27272803
ETIM 9.0 EC001849
ETIM 8.0 EC001849
ETIM 7.0 EC001849
ETIM 6.0 EC001849
ETIM 5.0 EC001849
UNSPSC 12.1 41111960
