UM18-218126111 - Sick Ultrasonic Sensor

UM18-218126111 | UM18 ULTRASONIC DISTANCE SENSOR

Special order Item.

Product Overview

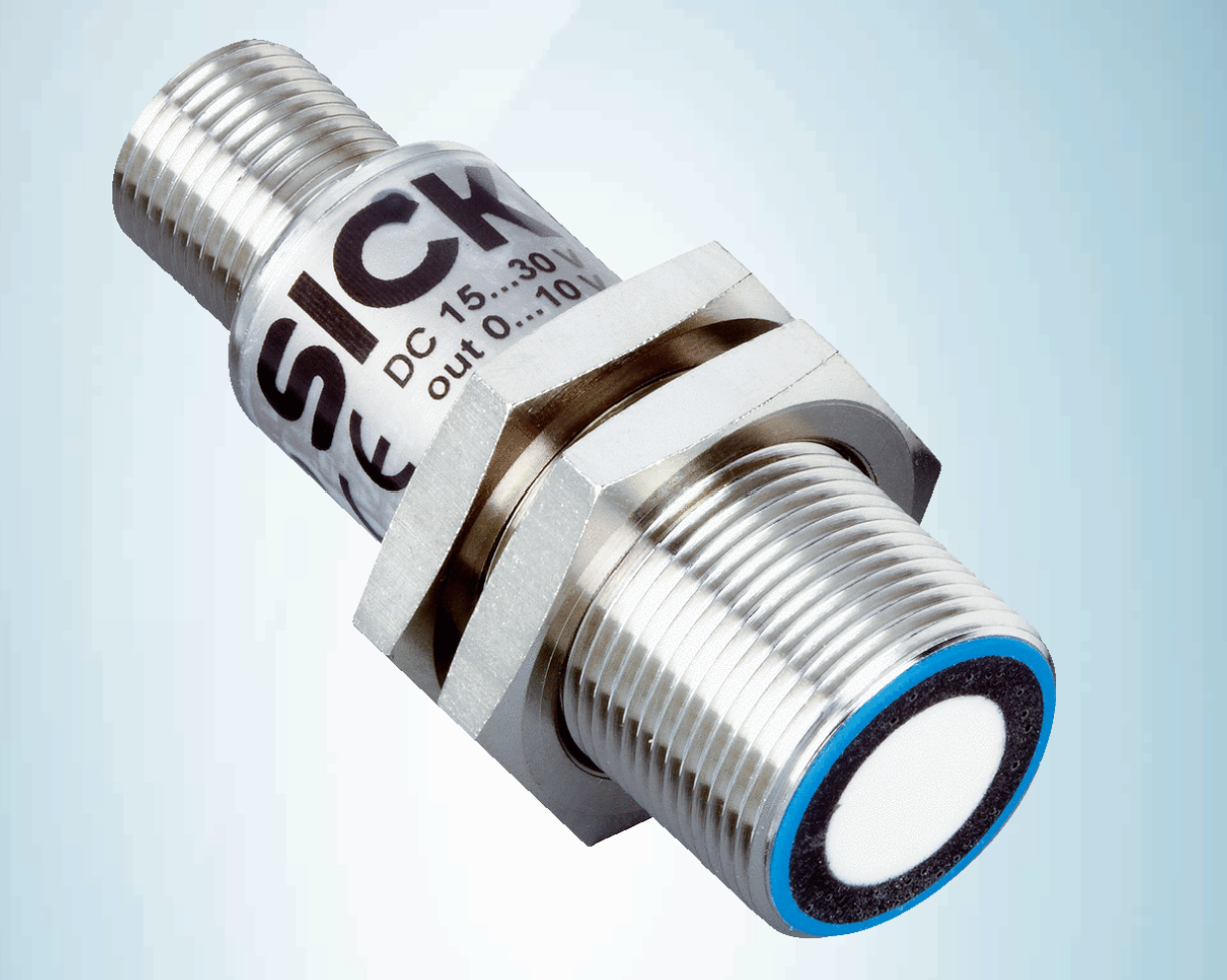

The UM18-218126111 ultrasonic distance sensor is a high-performance, reliable device designed for precise distance measurement. Ideal for various applications, it features advanced technology and robust construction, making it suitable for industrial environments.

Key Features

• Supply Voltage: DC 10 V ... 30 V
• Power Consumption: ≤ 1.2 W
• Initialization Time: < 300 ms
• Design: Cylindrical
• Housing Material: Metal (nickel-plated brass, ultrasonic transducer: polyurethane foam, glass epoxy resin)
• Thread Size: M18 x 1

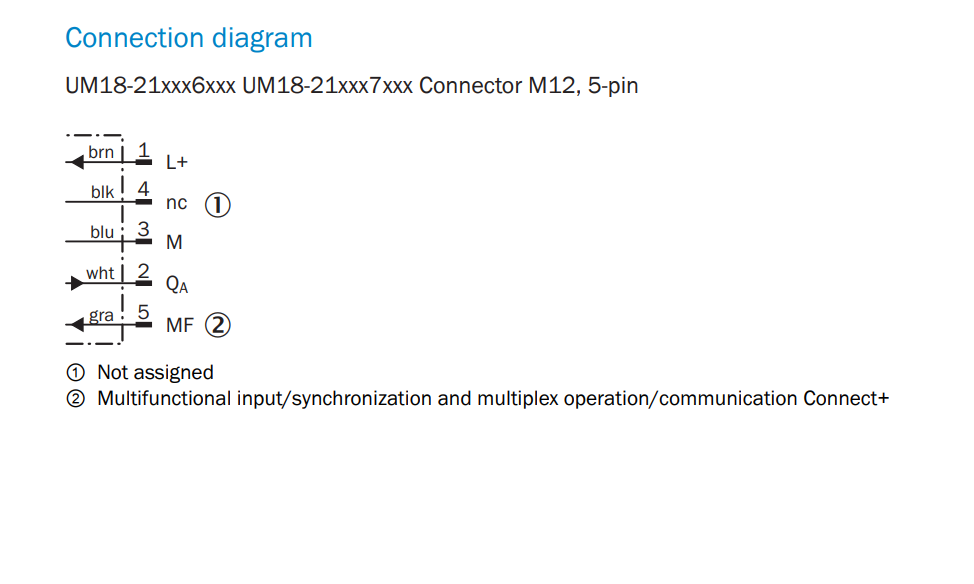

• Connection Type: Male connector, M12, 5-pin
• Indicators: 2 x LED
• Weight: 25 g
• Sending Axis: Straight

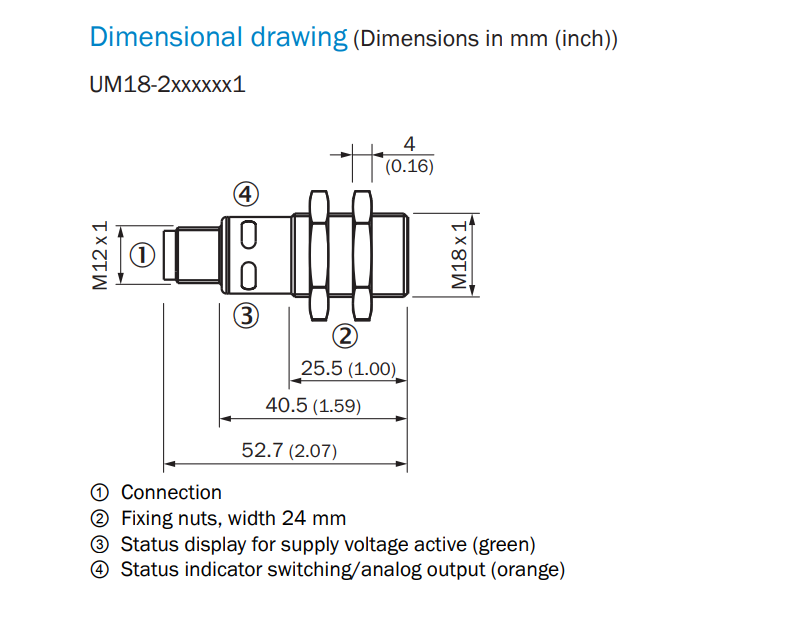

• Dimensions: 18 mm (W) x 18 mm (H) x 52.7 mm (D)
• Enclosure Rating: IP65 / IP67
• Protection Class: III

Performance Specifications

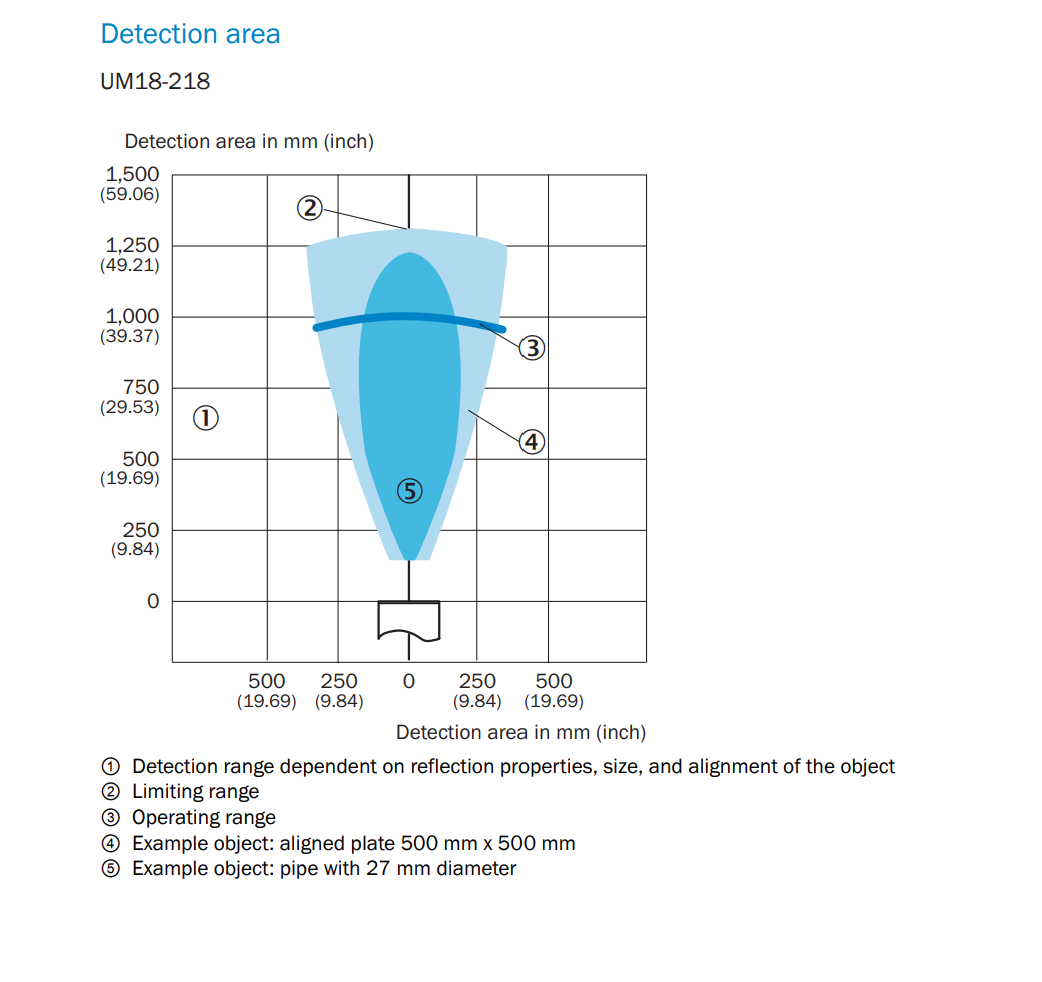

• Operating Range: 120 mm to 1,000 mm
• Limiting Range: 1,300 mm
• Target Detection: Natural objects
• Resolution: ≥ 0.069 mm
• Repeatability: ± 0.15 %
• Accuracy: ± 1 %
• Temperature Compensation: ✔
• Response Time: 80 ms
• Output Time: 20 ms
• Ultrasonic Frequency: 200 kHz

Additional Functions

• Teach-in of analog output
• Invertable analog output
• Multifunctional input: external teach/synchronization/multiplexing
• Synchronization of up to 20 sensors
• Multiplexing: no cross talk of up to 20 sensors
• Reset to factory default

Interfaces

• Analog Output:
  • Number: 1
  • Type: Current output
  • Current: 4 mA ... 20 mA, ≤ 500 Ω
  • Resolution: 12 bit
• Multifunctional Input (MF): 1 x MF

Environmental Data

• Operating Temperature: –25 °C ... +70 °C
• Storage Temperature: –40 °C ... +85 °C
