VAA-2E1A-F85A-S-V1 / PF 192437 - AS-Interface EMERGENCY STOP
VAA-2E1A-F85A-S-V1 / PF 192437 - AS-Interface EMERGENCY STOP
Regular price
$621.44 NZD
Regular price
Sale price
$621.44 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

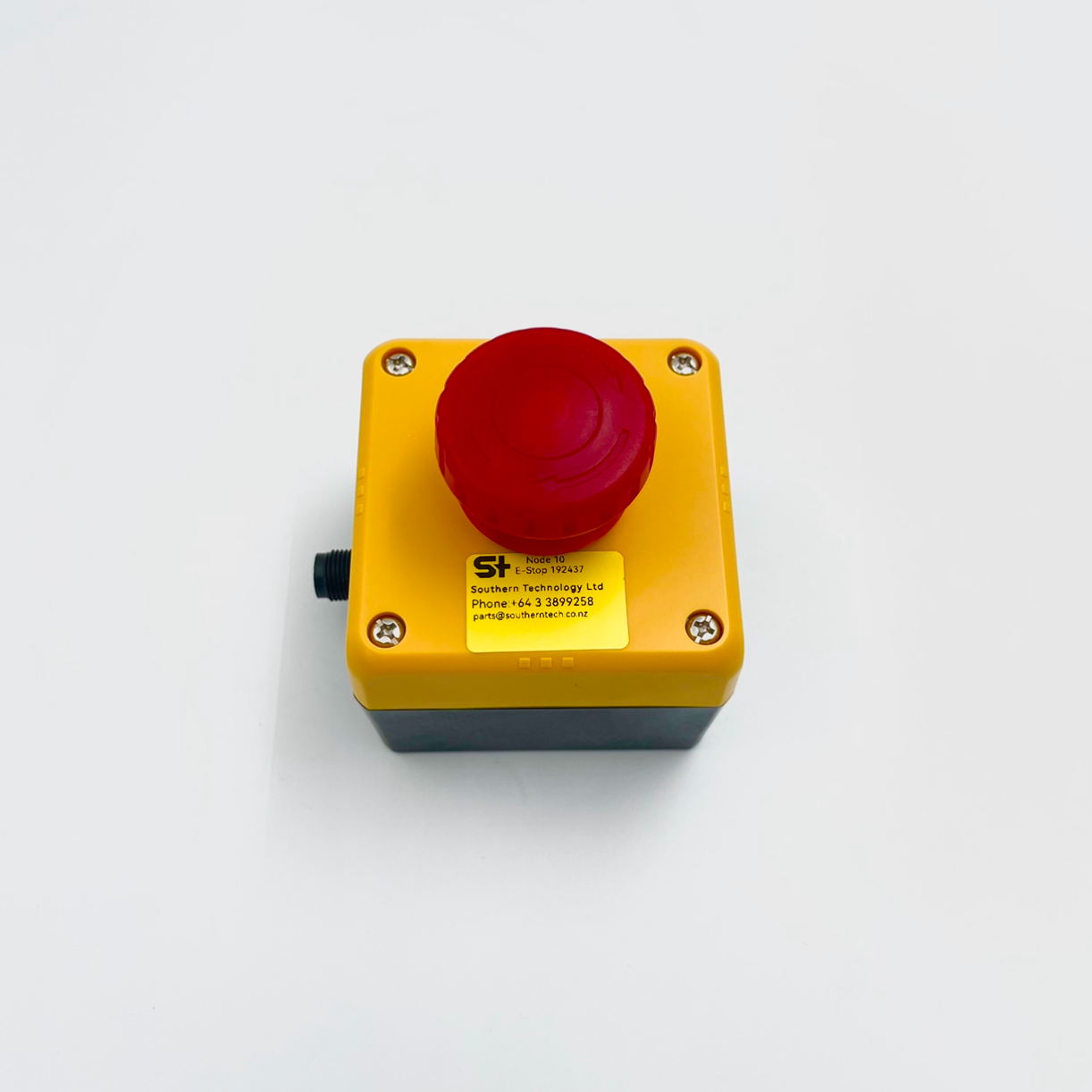

AS-Interface EMERGENCY STOP - VAA-2E1A-F85A-S-V1 / PF 192437
- 2-channel, compelled connected
- Outwit-proof according to ISO 13850/EN 418
- Integrated illumination in the actuator
- TÜV-approval for system components is available
- Biased actuator for self-monitoring
- EMERGENCY STOP unlocking by turning or pulling

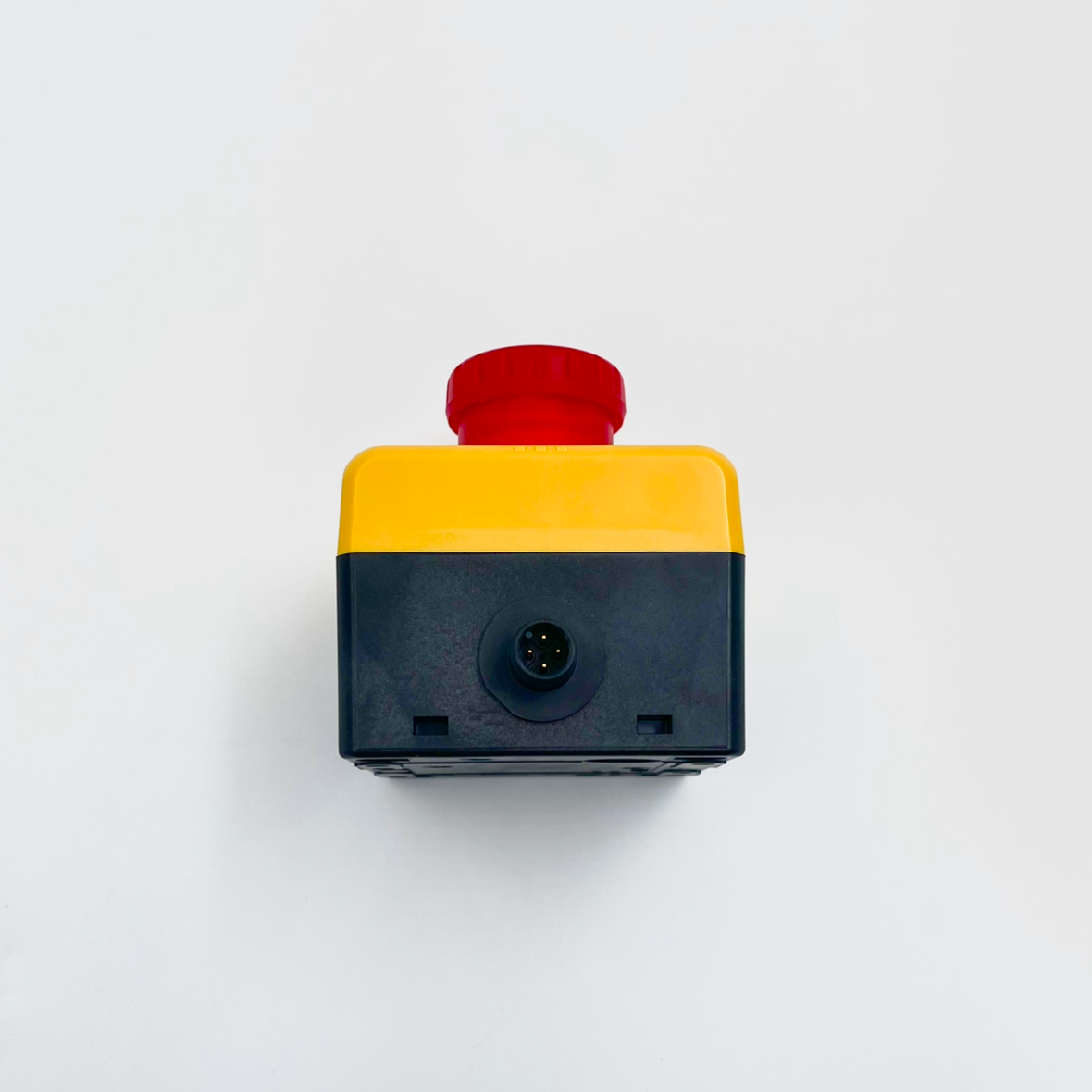

- M12 plug connection
Details: VAA-2E1A-F85A-S-V1 - PF 192437
Compatible Part Numbers:
192437
VAA-2E1A-F85A-S-V1
Instruction Sheet:
Technical Data Sheet:
Datasheet excerpt: Technical data of VAA-2E1A-F85A-S-V1 - PF 192437
| General specifications | ||
| Node type | Safety-Slave | |
| AS-Interface specification | V2.1 | |
| Required master specification | ≥ V2.0 | |
| UL File Number | E198304 | |
| Functional safety related parameters | ||
| MTTFd | 200 a | |
| B10d | 1 E+5 | |
| Electrical specifications | ||
| Rated operating voltage |
26.5 ... 31.6 V from AS-Interface
|
|
| Rated operating current | ≤ 40 mA | |
| Protection class | III | |
| Insulation resistance | min. 100 MΩ | |
| Input | ||
| Number/Type |
2 NC
Safety function by positive opening in accordance with IEC/EN 60947-5-1 Reset by pulling |
|
| Supply |
from AS-Interface
|
|
| Output | ||
| Number/Type | LED red | |
| Supply |
from AS-Interface
|
|
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU |
EN 62026-2:2013
|
|
| Standard conformity | ||
| Electromagnetic compatibility |
EN 62026-2:2013
|
|
| Degree of protection |
EN 60529:2000
|
|
| Electrical safety |
EN 60947-5-5:1997+A1:2005
|
|
| AS-Interface |
EN 62026-2:2013
|
|
| Functional safety |
EN 62061:2005
EN 61508 Parts 1-7:2010 NFPA 79:2007 EN 60204-1:2006 |
|
| Programming instructions | ||
| Profile | S-7.B.E. | |
| IO code | 7 | |
| ID code | B | |
| ID1 code | F | |
| ID2 code | E | |
| Data bits (function via AS-Interface) | input output | |
| D0 |
dyn. safety code 1 OUT 1
|
|
| D1 |
dyn. safety code 1 -
|
|
| D2 |
dyn. safety code 2 -
|
|
| D3 |
dyn. safety code 2 -
|
|
| Parameter bits (programmable via AS-i) | function | |
| P0 | not used | |
| P1 | not used | |
| P2 | not used | |
| P3 | not used | |
| Ambient conditions | ||
| Ambient temperature |
-25 ... 50 °C (-13 ... 122 °F) (no freezing)
|
|
| Storage temperature |
-40 ... 70 °C (-40 ... 158 °F)
|
|
| Relative humidity |
40 ... 85 % , noncondensing
|
|
| Mechanical specifications | ||
| Operating force |
Push: 32 N
Pull: 21 N Turn: 0.27 Nm Minimum for positive opening operation: 60 Nm |
|
| Operating distance |
for positive opening operation: min. 4 mm
maximal: 4.5 mm |
|
| Degree of protection | IP65 Module: IP20 |
|
| Connection |
M12 round connector
|
|
| Material | ||
| Housing | PC | |
| Mass | 195 g | |
| Life span |
> 250,000 switching operations
|
|
|
Classifications |
||
| System | Classcode | |
| ECLASS 13.0 | 27371244 | |
| ECLASS 12.0 | 27371244 | |
| ECLASS 11.0 | 27371244 | |
| ECLASS 10.0.1 | 27371244 | |
| ECLASS 9.0 | 27371244 | |
| ECLASS 8.0 | 27371244 | |
| ECLASS 5.1 | 27371228 | |
| ETIM 9.0 | EC002034 | |
| ETIM 8.0 | EC002034 | |
| ETIM 7.0 | EC002034 | |
| ETIM 6.0 | EC002034 | |
| ETIM 5.0 | EC002034 | |
| UNSPSC 12.1 | 39121533 | |
