VBA-4E-G11-I-F / PF 234280 - AS-Interface analog module

VBA-4E-G11-I-F / PF 234280 - AS-Interface analog module

$742.98 NZD
$742.98 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

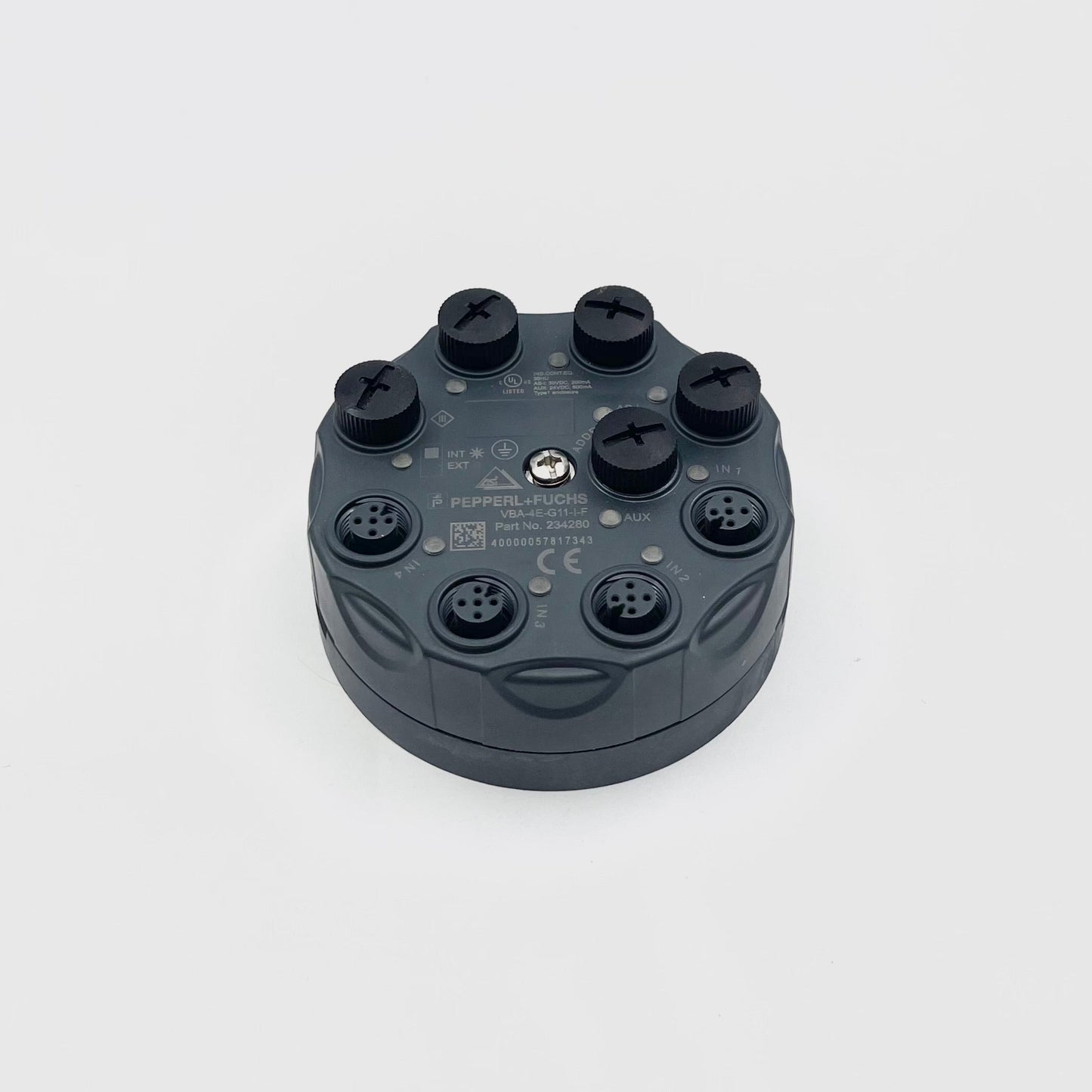

AS-Interface analog module, VBA-4E-G11-I-F / PF 234280

  • Addressing jack
  • Function display for bus, internal and external sensor power supply, inputs
  • Supply for inputs from AS-Interface or auxiliary voltage
  • Degree of protection IP68 / IP69K
  • Accuracy ± 0.1 %
  • Integrated shielding
  • Channel-specific input monitoring

Details: VBA-4E-G11-I-F / PF 234280

G11 analog module, 4 analog current inputs

Compatible Part Numbers:

234280

VBA-4E-G11-I-F

Technical Datasheet:

Datasheet excerpt: Technical data of  VBA-4E-G11-I-F / PF 234280

General specifications
Node type Standard node
AS-Interface specification V3.0
Required gateway specification ≥ V2.1
Profile S-7.3.E
IO code 7
ID code 3
ID1 code F
ID2 code E
UL File Number E223772
Indicators/operating means
LED AS-i/FAULT Status display; multi-colour LED
Green: normal operation
Red: communication fault
Flashing yellow/red: address 0
Flashing green/red: peripheral fault
LED ANALOG status of input signal; LED yellow
off: not active
on: signal within measuring range
flashing: signal outside of measuring range
LED AUX ext. auxiliary voltage UAUX; dual LED green/red
green: voltage OK
red: reverse voltage
LED INT/EXT status display input supply; LED green
green: input supply from AS-Interface
off: input supply from auxiliary voltage
Electrical specifications
Auxiliary voltage (output) 20 ... 30 V DC PELV
Rated operating voltage 26.5 ... 31.6 V from AS-Interface
Rated operating current ≤ 60 mA (without sensors) / max. 200 mA
Protection class III
Surge protection UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV)
Input
Number/Type 4 Inputs
0/4 ... 20 mA
Supply from AS-Interface (switch position INT, default settings) or auxiliary voltage UEXT (switch position EXT)
Current loading capacity ≤ 140 mA from AS-Interface; overload and short-circuit resistant
≤ 600 mA from external auxiliary voltage UAUX , overload and short-circuit protected
Input resistance max. 70 Ω
Accuracy 0.1 % of full-scale value
Resolution 16 Bit
Temperature influence 0.0025 %/K of input signal range
Directive conformity
Electromagnetic compatibility
Directive 2014/30/EU EN 62026-2:2013
Standard conformity
Degree of protection EN 60529:2000
Fieldbus standard EN 62026-2:2013
Input EN 61131-2:2007
Emitted interference EN 61000-6-4:2007
AS-Interface EN 62026-2:2013
Noise immunity EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -25 ... 85 °C (-13 ... 185 °F)
Relative humidity 85 % , noncondensing
Climatic conditions For indoor use only
Altitude ≤ 2000 m above MSL
Pollution degree 3
Mechanical specifications
Degree of protection IP68 / IP69K
Connection AS-Interface/UAUX: cable piercing method, flat cable yellow/flat cable black
Inputs: M12 round connector
Material
Housing PBT PC
Mounting screw Stainless steel 1.4305 / AISI 303
Mass 200 g
Tightening torque, housing screws 1.8 Nm
Tightening torque, cable gland 0.4 Nm
Dimensions
Height 35 mm
Diameter 85 mm
Mounting Mounting plate



Classifications

System Classcode
ECLASS 13.0 27242601
ECLASS 12.0 27242601
ECLASS 11.0 27242601
ECLASS 10.0.1 27242601
ECLASS 9.0 27242601
ECLASS 8.0 27242601
ECLASS 5.1 27242601
ETIM 9.0 EC001596
ETIM 8.0 EC001596
ETIM 7.0 EC001596
ETIM 6.0 EC001596
ETIM 5.0 EC001596
UNSPSC 12.1 39121535

2 in stock
