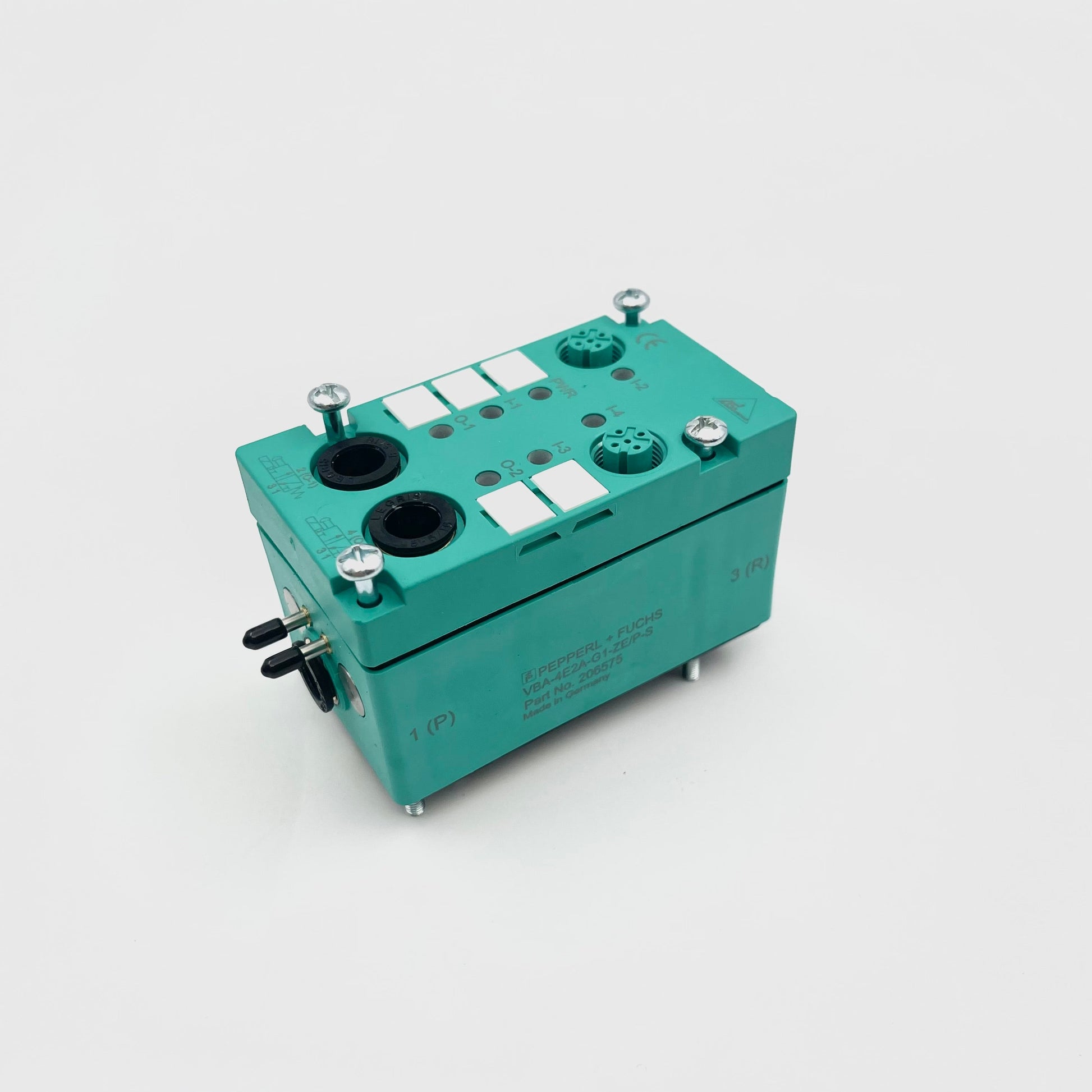

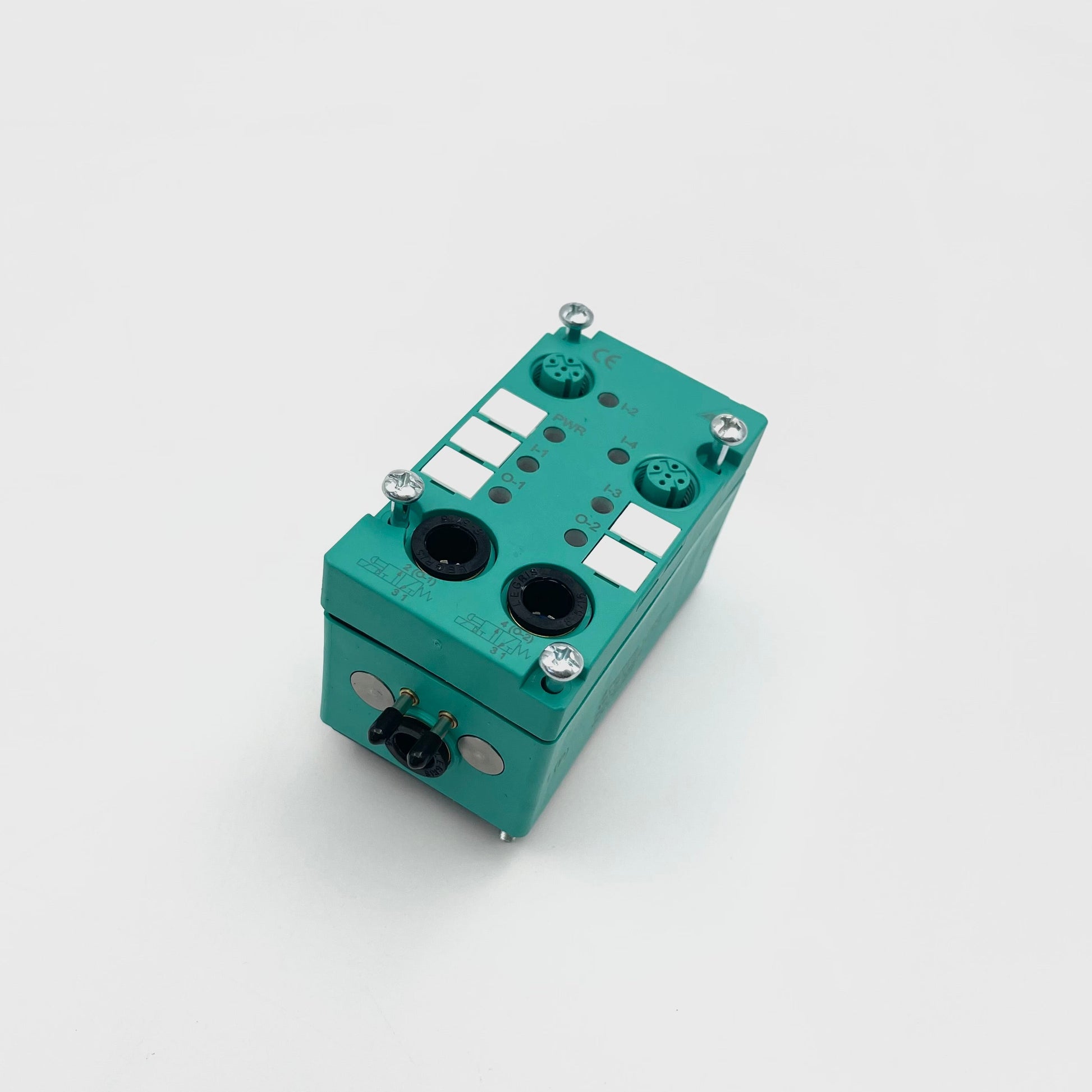

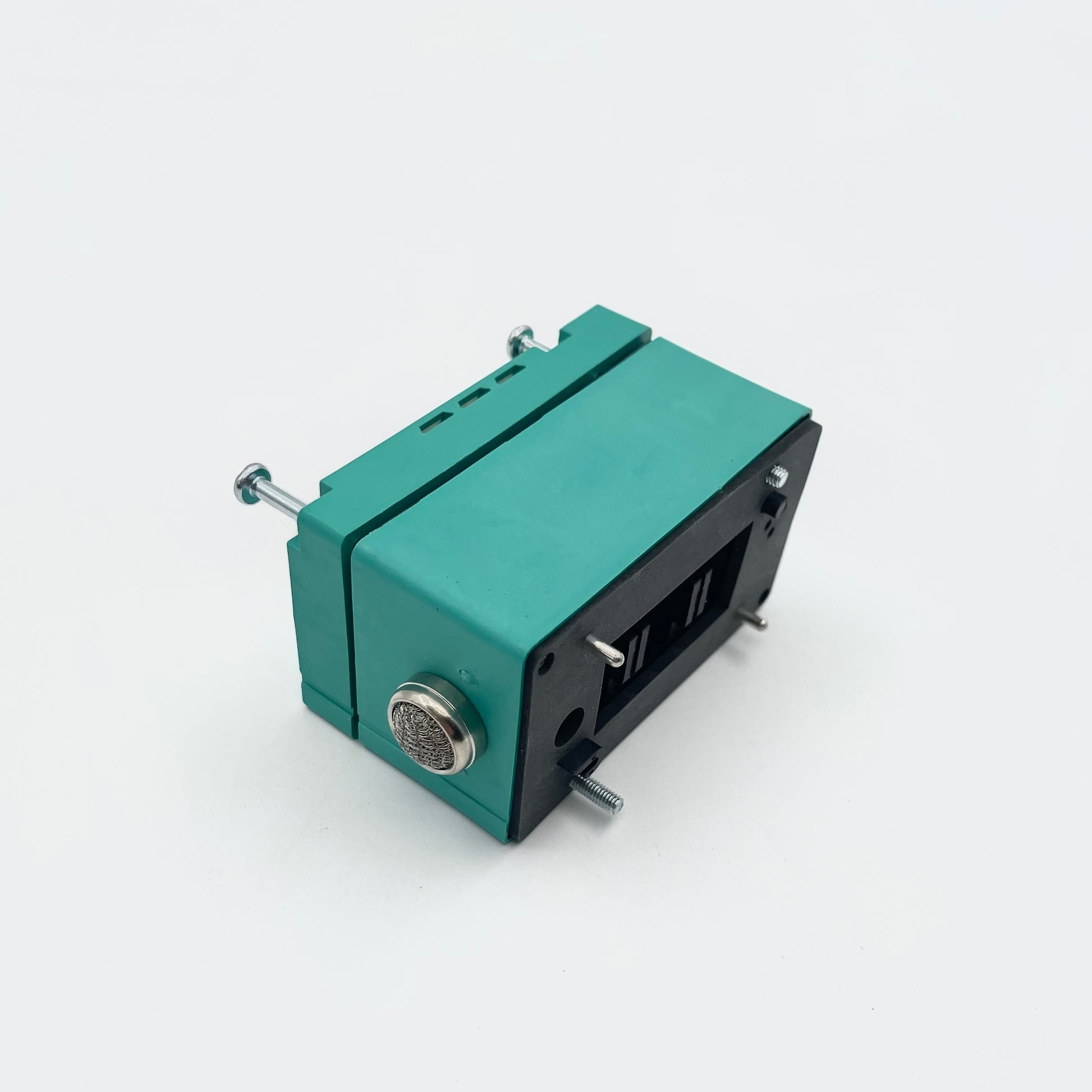

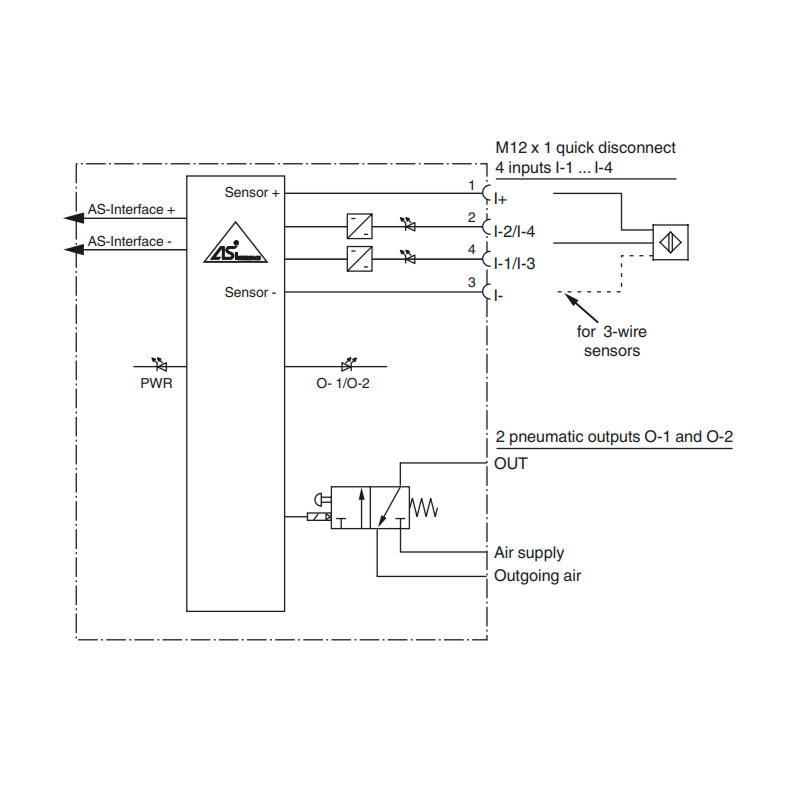

AS-Interface pneumatic module, VBA-4E2A-G1-ZE/P-S / PF 206575
- Flat or round cable connection (via standardized EMS base, not included with delivery)
- Cable piercing method for flat cable
- Inputs for 2- and 3-wire sensors
- Function display for bus, inputs and outputs
- Direct connection of pneumatic cylinders
Details: VBA-4E2A-G1-ZE/P-S / PF 206575
Pneumatic module 4 inputs/2 pneumatic outputs
Compatible Part Numbers:
VBA-4E2A-G1-ZE/P-S
206575
Technical Data Sheet:
Datasheet excerpt: Technical data of VBA-4E2A-G1-ZE/P-S / PF 206575
| General specifications | ||
|---|---|---|
| Node type | A/B node | |
| AS-Interface specification | V3.0 | |
| Required gateway specification | ≥ V2.1 | |
| Functional safety related parameters | ||
| MTTFd | 44 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED PWR | AS-Interface voltage; LED green | |
| LED IN | switching state (input); 4 LED yellow | |
| LED OUT | Switching state (output); 2 LED yellow | |
| Electrical specifications | ||
| Rated operating voltage | 26.5 ... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 45 mA (without sensors) ≤ 200 mA (complete) |
|
| Input | ||
| Number/Type | 2x 2 inputs for 2- or 3-wire sensors (PNP), DC | |
| Supply | from AS-Interface | |
| Current loading capacity | ≤ 200 mA , short-circuit protected | |
| Switching point | OFF: ≤ 1.5 mA ON: ≥ 5 mA, ≥ 10 V |
|
| Output | ||
| Number/Type | 2 pneumatic outputs with separated 3/2-way valves | |
| Pneumatic output | ||
| Venting guide | Sinter filter | |
| Compressed air | 2 ... 8 bar, filtered (5 µm), oiled or unoiled compressed air | |
| Air throughput | 550 Nl/min at 6/0 bar 350 Nl/min at 6/5 bar Nl = Standard litre |
|
| Valve cross-section | 5 mm | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 61000-6-2, EN 61000-6-4 | |
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Noise immunity | EN 55011:1998 EN 62026-2:2013 | |
| Shock resistance | EN 60068-2-31:2006 | |
| Programming instructions | ||
| Profile | S-7.A.E | |
| IO code | 7 | |
| ID code | A | |
| ID1 code | 7 | |
| ID2 code | E | |
| Data bits (function via AS-Interface) |
|
|
| D0 |
|
|
| D1 |
|
|
| D2 |
|
|
| D3 |
|
|
| Parameter bits (programmable via AS-i) | function | |
| P0 | not used | |
| P1 | not used | |
| P2 | not used | |
| P3 | not used | |
| Ambient conditions | ||
| Ambient temperature | 0 ... 55 °C (32 ... 131 °F) | |
| Storage temperature | -20 ... 85 °C (-4 ... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | cable piercing methos or terminals flat cable or standard round cable inputs: M12 x 1 quick disconnect outputs: plug-in hose connector (8 mm) |
|
| Material | ||
| Housing | Pocan | |
| Mass | approx. 200 g | |
| Dimensions | ||
| Height | 60 mm | |
| Width | 45 mm | |
| Length | 102 mm | |
| Mounting | DIN rail or screw mounting | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242604 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
