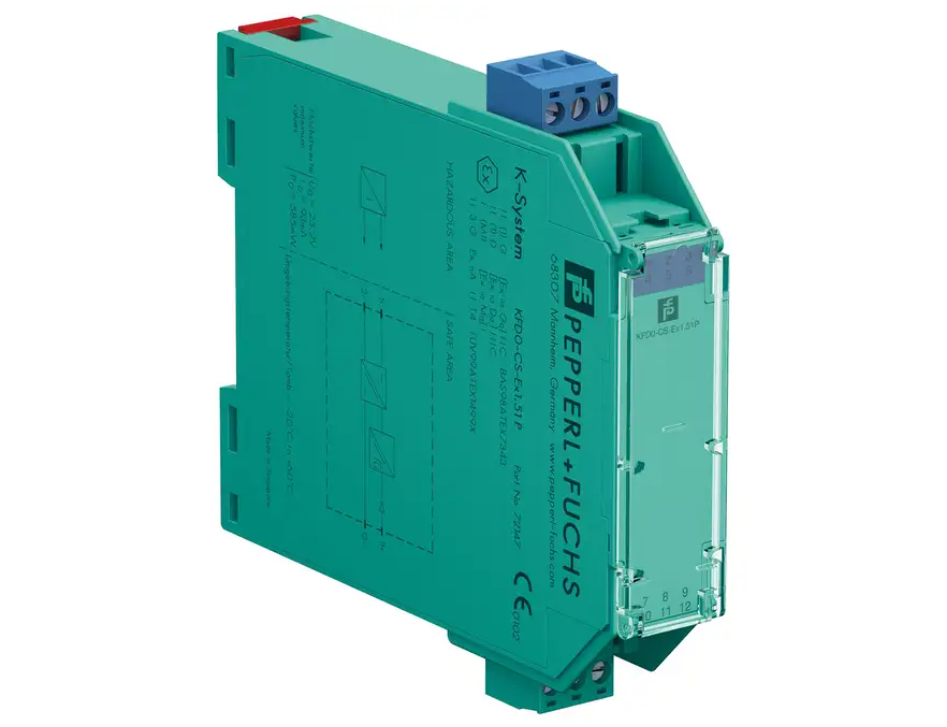

KFD0-CS-Ex1.51P / PF 294980 - Current Driver/Repeater

The device transfers DC signals of fire alarms and smoke alarms

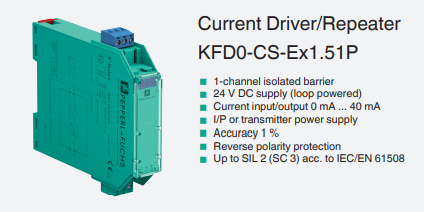

Current Driver/Repeater

KFD0-CS-Ex1.51P

Details:

Current Driver/Repeater

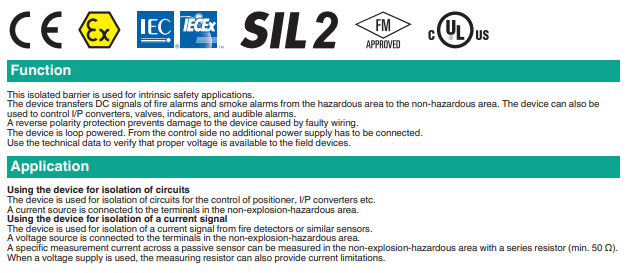

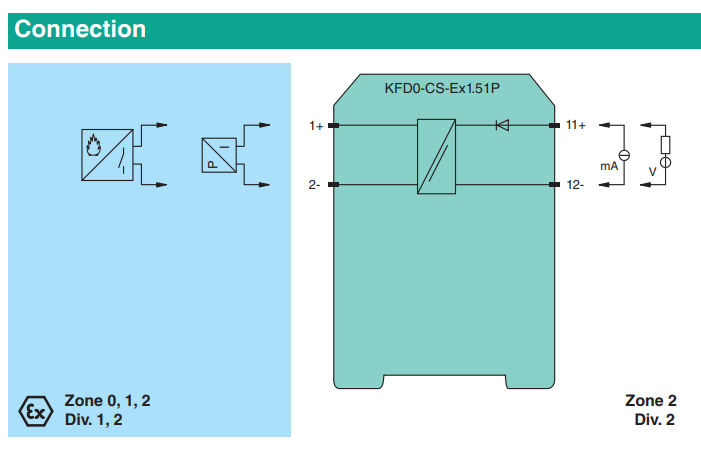

The device transfers DC signals of fire alarms and smoke alarms from the
hazardous area to the non-hazardous area. The device can also be used
to control I/P converters, valves, indicators, and audible alarms.

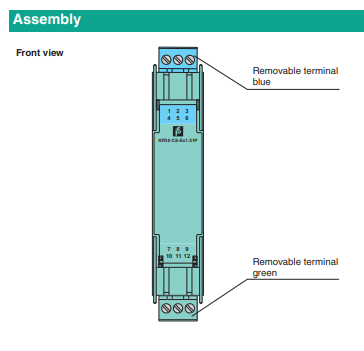

The device is designed for mounting on a 35 mm DIN mounting rail
according to EN 60715

Compatible Part Numbers:

PF 294980

Technical Data Sheet:

Instruction manual KFD0-CS-Ex1.51P

System manual K-System, Isolated barriers

Functional Safet manual pdf

STP 3d cad

Current Driver/Repeater:

KFD0-CS-Ex1.51P, KFD0-CS-Ex2.51P
ATEX certificate: BAS 98 ATEX 7343 X
ATEX marking:
1 II (1)G [Ex ia Ga] IIC
1 II (1)D [Ex ia Da] IIIC
1 I (M1) [Ex ia Ma] I
ATEX certificate: FIDI 22 ATEX 0001X
ATEX marking: 1 II 3G Ex ec IIC T4 Gc
IECEx certificate:
IECEx BAS 05.0004X
IECEx CML 19.0040X
IECEx marking:
[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I
Ex ec IIC T4 Gc
North America Certifcates: E106378 (UL)
Class I, Division 2, Groups A-D, T4
Associated apparatus with intrinsically safe circuits for:
Class I, Division 1, Groups A-D; Class II, Division 1, Groups E-G;
Class III
