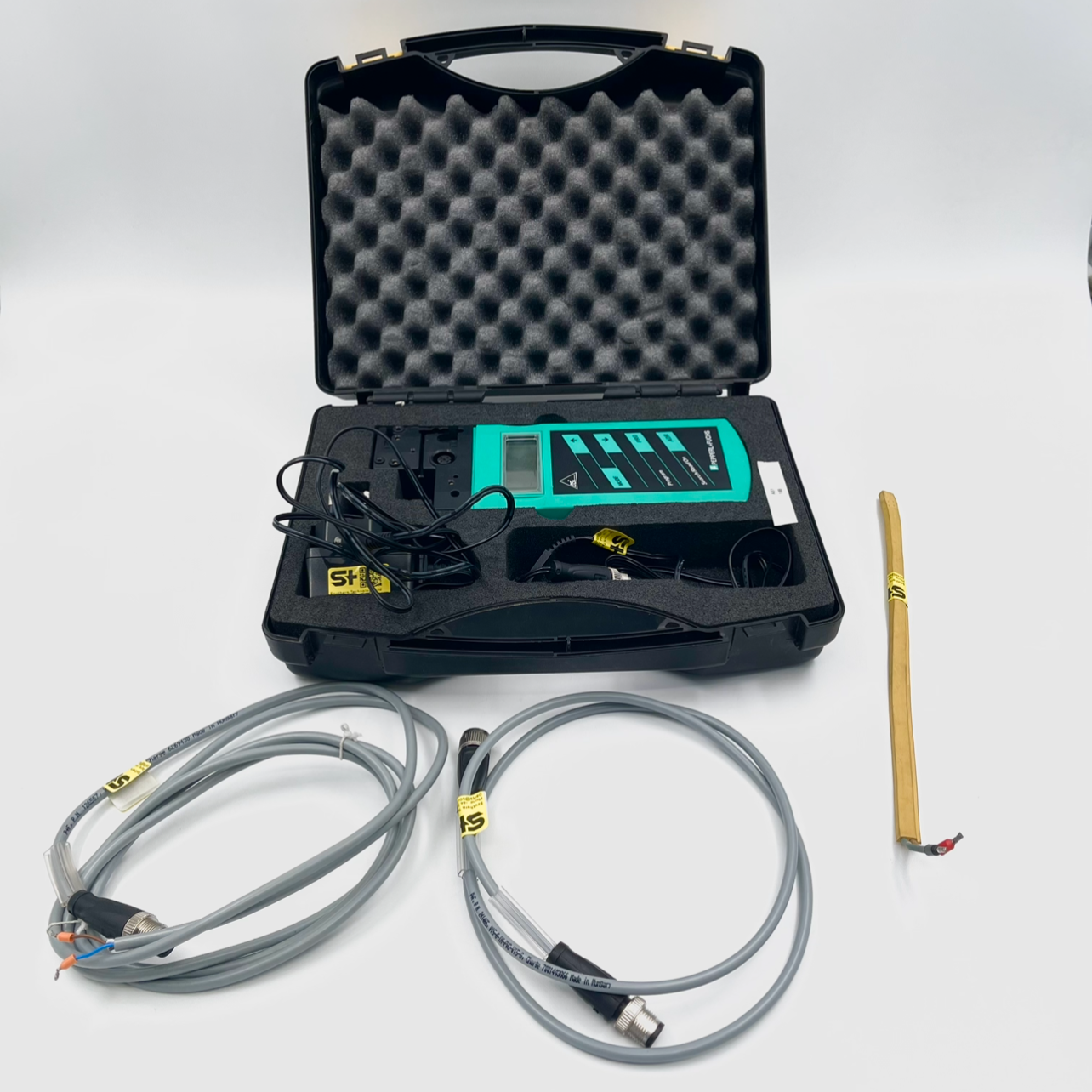

HIRE ONLY - VBP-HH1-V3.0-KIT - PF 229188 - AS-Interface Handheld With Accessory
HIRE ONLY - VBP-HH1-V3.0-KIT - PF 229188 - AS-Interface Handheld With Accessory
Regular price
$25.00 NZD
Regular price
Sale price
$25.00 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
PLEASE NOTE Item IS in stock and is AVALIABLE FOR HIRE ONLY, price provided upon request. Please feel free to contact us at info@southerntech.co.nz
AS-Interface Handheld With Accessory - PF 229188
- Addressing and programming AS-Interface nodes
- Displaying the assigned node addresses and the status of the inputs
- Setting outputs at the AS-Interface node
- Also supports profiles S-7.7.A.7 (Spec 3.0), S-0.B and S-7.B (AS Interface Safety at Work)
- The node connection is short-circuit and overload proof
- Battery charger for EU, USA, UK, and AU included in the scope of delivery
Details: VBP-HH1-V3.0-KIT - PF 229188
AS-Interface Handheld with accessory.
Compatible Part Numbers:
PF 229188
VBP-HH1-V3.0-KIT
Technical Datasheet:
Datasheet Excerpt: Technical data of VBP-HH1-V3.0-KIT - PF 229188
| General specifications | ||
| AS-Interface specification | V3.0 | |
| Indicators/operating means | ||
| Display | LC display | |
| Keyboard |
membrane keys, 5 keys
|
|
| Electrical specifications | ||
| Operating duration |
8 h or ≥ 250 read/write procedures for fully charged battery
|
|
| Operating voltage |
Plug-in charging unit 90 ... 264 V AC
|
|
| Power supply |
battery mode, please use only battery charger included with delivery to charge (charging time about 14 h)
|
|
| Interface | ||
| Interface type |
AS-Interface, short-circuit proof and overload-proof, or optical
|
|
| Open loop voltage | 28 V | |
| Load current |
100 mA at 25 V
|
|
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU |
Handheld: EN 61326-1:2013
Plug-in charging unit EN 61000-3-2:2014 , EN 61000-3-3:2013 , EN 61000-4-2:2009 , EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014+AC:2015, EN 61000-4-8:2010, EN 61000-4-11:2004+A1:2017 , EN 55032:2015+AC:2016 , EN 55035:2017 |
|
| Low voltage | ||
| Directive 2014/35/EU |
Plug-in charging unit EN 62368-1:2014+A11:2017
|
|
| Standard conformity | ||
| Degree of protection |
EN 60529:2000
|
|
| Electrical safety |
Plug-in charging unit EN 62368-1:2014+A11:2017
|
|
| Emitted interference |
Handheld: EN 61326-1:2013
Plug-in charging unit EN 55032:2015+AC:2016 , EN 55035:2017 |
|
| Noise immunity |
Handheld: EN 61326-1:2013
Plug-in charging unit EN 61000-3-2:2014 , EN 61000-3-3:2013 |
|
| Ambient conditions | ||
| Ambient temperature |
0 ... 40 °C (32 ... 104 °F)
|
|
| Storage temperature |
-20 ... 40 °C (-4 ... 104 °F)
|
|
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection |
Plug-in charger 90 ... 264 VAC with interchangeable plug for EU, USA, UK and AU included with delivery
|
|
| Material | ||
| Housing | plastic | |
| Mass | approx. 1000 g | |
| Dimensions | ||
| Height | 34 mm | |
| Width | 80 mm | |
| Length | 214 mm | |
|
Classifications
|
||
| System | Classcode | |
| ECLASS 13.0 | 27242692 | |
| ECLASS 12.0 | 27242692 | |
| ECLASS 11.0 | 27242692 | |
| ECLASS 10.0.1 | 27242692 | |
| ECLASS 9.0 | 27242692 | |
| ECLASS 8.0 | 27279212 | |
| ECLASS 5.1 | 27279212 | |
| ETIM 9.0 | EC003015 | |
| ETIM 8.0 | EC003015 | |
| ETIM 7.0 | EC003015 | |
| ETIM 6.0 | EC003015 | |
| ETIM 5.0 | EC003015 | |
| UNSPSC 12.1 | 39121535 | |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V3.0 | |
| Indicators/operating means | ||
| Display | LC display | |
| Keyboard | membrane keys, 5 keys | |
| Electrical specifications | ||
| Operating duration | 8 h or ≥ 250 read/write procedures for fully charged battery | |
| Operating voltage | Plug-in charging unit 90 ... 264 V AC | |
| Power supply | battery mode, please use only battery charger included with delivery to charge (charging time about 14 h) | |
| Interface | ||
| Interface type | AS-Interface, short-circuit proof and overload-proof, or optical | |
| Open loop voltage | 28 V | |
| Load current | 100 mA at 25 V | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | Handheld: EN 61326-1:2013 Plug-in charging unit EN 61000-3-2:2014 , EN 61000-3-3:2013 , EN 61000-4-2:2009 , EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014+AC:2015, EN 61000-4-8:2010, EN 61000-4-11:2004+A1:2017 , EN 55032:2015+AC:2016 , EN 55035:2017 |
|
| Low voltage | ||
| Directive 2014/35/EU | Plug-in charging unit EN 62368-1:2014+A11:2017 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Electrical safety | Plug-in charging unit EN 62368-1:2014+A11:2017 | |
| Emitted interference | Handheld: EN 61326-1:2013 Plug-in charging unit EN 55032:2015+AC:2016 , EN 55035:2017 |
|
| Noise immunity | Handheld: EN 61326-1:2013 Plug-in charging unit EN 61000-3-2:2014 , EN 61000-3-3:2013 |
|
| Ambient conditions | ||
| Ambient temperature | 0 ... 40 °C (32 ... 104 °F) | |
| Storage temperature | -20 ... 40 °C (-4 ... 104 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | Plug-in charger 90 ... 264 VAC with interchangeable plug for EU, USA, UK and AU included with delivery | |
| Material | ||
| Housing | plastic | |
| Mass | approx. 1000 g | |
| Dimensions | ||
| Height | 34 mm | |
| Width | 80 mm | |
| Length | 214 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242692 |
| ECLASS 12.0 | 27242692 |
| ECLASS 11.0 | 27242692 |
| ECLASS 10.0.1 | 27242692 |
| ECLASS 9.0 | 27242692 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121535 |
