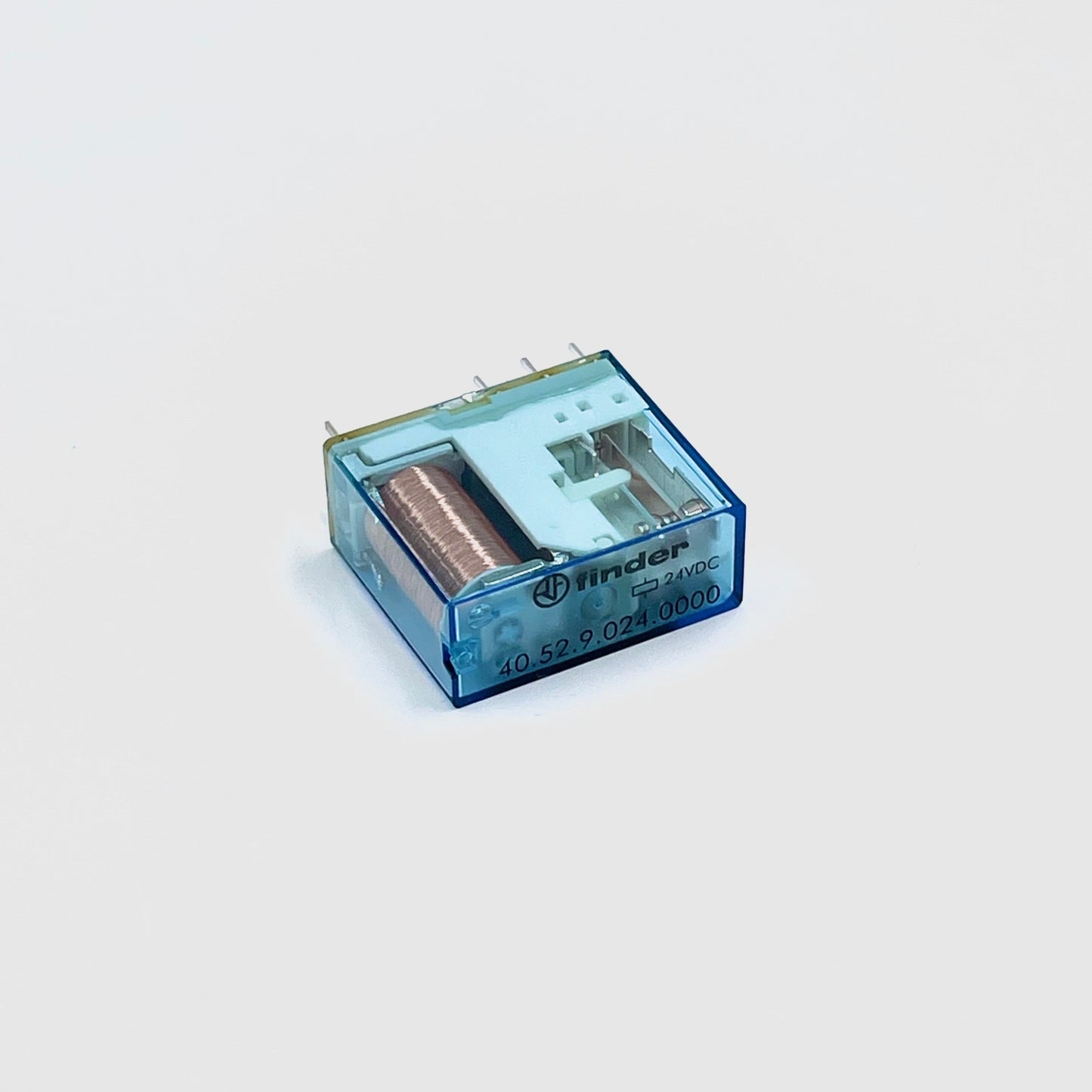

40.52.9.024.0000 - PCB Mount Power Relay - Finder
40.52.9.024.0000 - PCB Mount Power Relay - Finder
Regular price
$24.00 NZD
Regular price
Sale price
$24.00 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
The Finder DPDT is a 2-pole, non-latching relay suitable for PCB or socket mounting. It operates using a 24VDC coil and can handle up to 8A DC/AC current. This miniature, standard plug-in relay features silver alloy contacts for high electrical endurance.
Details:
- Environmental friendly product
- Low power consumption
- Isolation voltage between the coil and contacts is 6KVAC
- Service temperature range between -40°C and 85°C
- High mechanical endurance and life expectancy of 10M cycles
- Shock resistant
- Resistant to vibration and abrasion
- Offers excellent board space saving
Technical Part Details:
| Coil Voltage | 24V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 8A |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | Plug In |
| Maximum Switching Voltage AC | 400V |
| Length | 29mm |
| Coil Resistance | 900Ω |
| Coil Power | 650mW |
| Isolation Coil To Contact | 6kV |
| Life | 10 x 10^6 cycles |
| Depth | 12.4mm |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver Alloy |
| Series | 40 Series |
| Maximum Operating Temperature | +85°C |
| Height | 25mm |
Technical Data Sheet:
4 in stock
