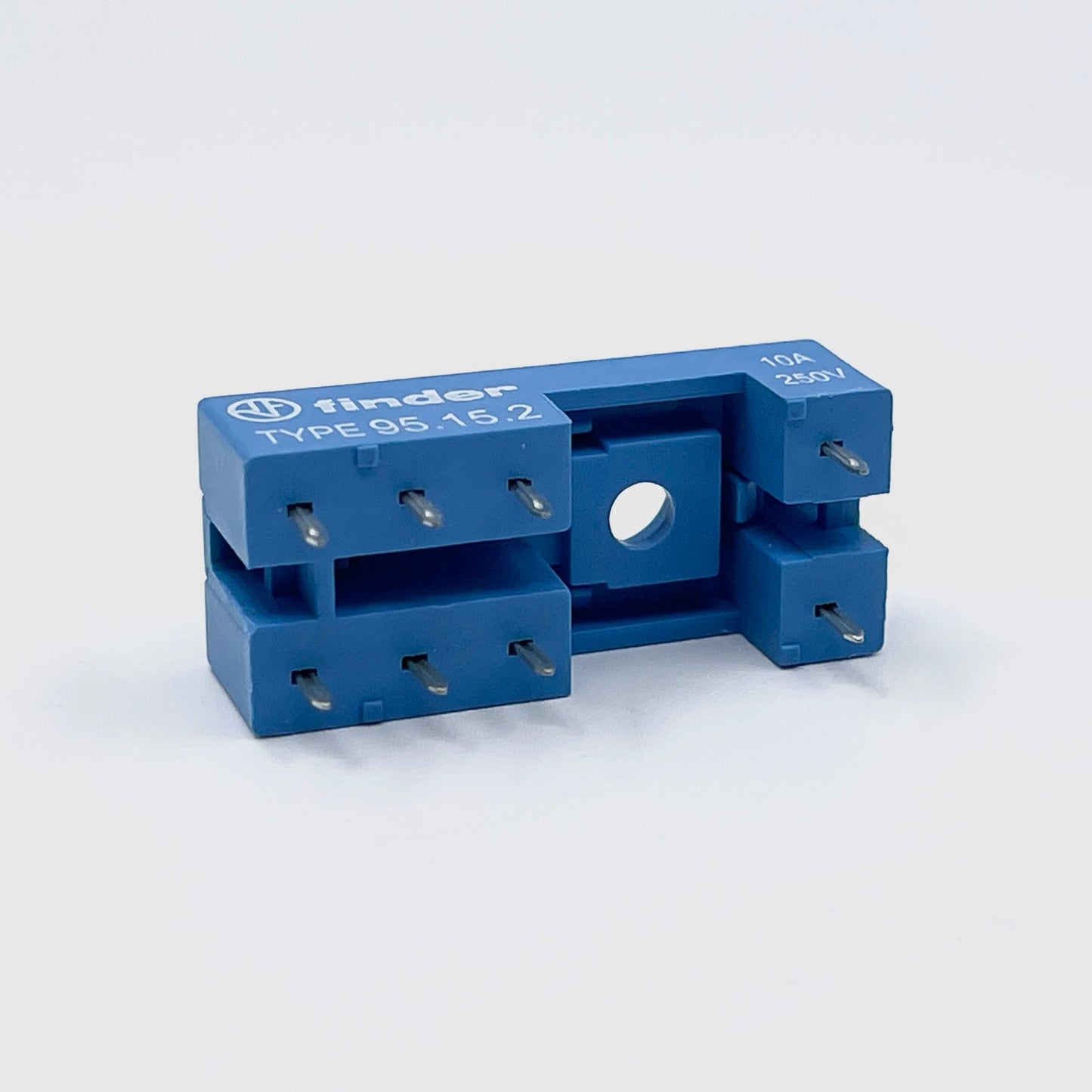

46.61.8.024.0054 - Safety Relay Base PCB Mount - Finder
46.61.8.024.0054 - Safety Relay Base PCB Mount - Finder
Regular price
$15.00 NZD
Regular price
Sale price
$15.00 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Safety Relay Base PCB Mount
Details: 46.61.8.024.0054 Safety Relay Base PCB Mount
- Mechanical flag indicator, lockable test button and LED
- Coil to contact isolation 6000Vac (1.2 / 50μs)
- 8mm creepage and clearance distance coil to contact
- Contact material: AgNi
- Ambient temperature range: -40 to +70°C
- Dimensions (mm): H 32.8, W 29, D12.4
- DIN rail sockets and Flange mount adaptors for Faston connection available separately
Compatible Part Numbers:
46.61.8.024.0054
Technical Part Details:
| Coil Voltage | 24V ac |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 16A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Quick Connect |
| Maximum Switching Voltage AC | 250V ac |
| Length | 29mm |
| Coil Resistance | 320 Ω |
| Coil Power | 1.2W |
| Depth | 12.4mm |
| Maximum Operating Temperature | +70°C |
| Isolation Coil To Contact | 6kV |
| Contact Material | Silver Alloy |
| Minimum Operating Temperature | -40°C |
| Series | 46 Series |
| Height | 32.8mm |
| Maximum Switching Power AC | 4 kVA |
| Application | General Purpose |
Technical Data Sheet:
