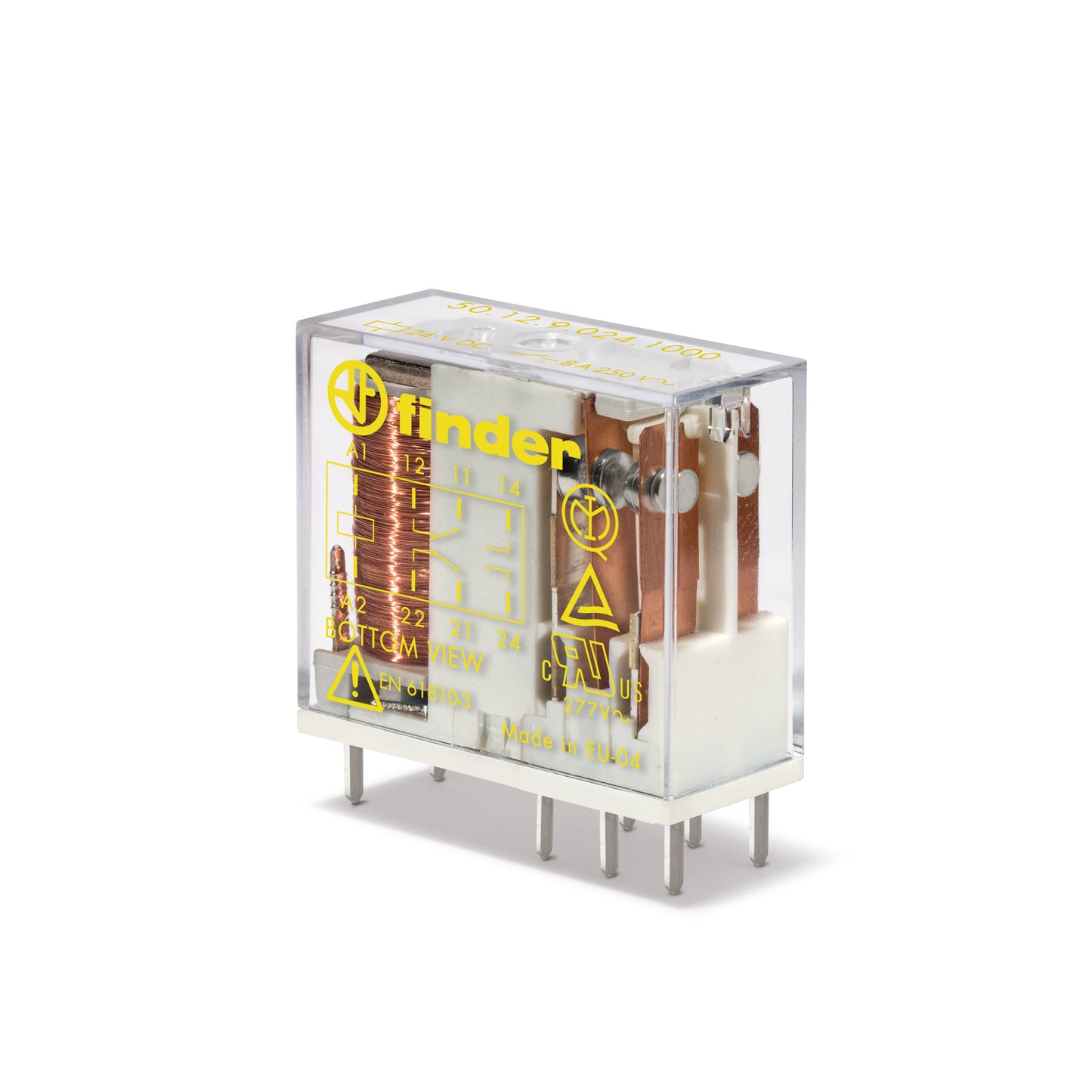

Finder 50.12.9.012.5000 - Saftey Relay 12VDC
Finder 50.12.9.012.5000 - Saftey Relay 12VDC
Regular price
$39.70 NZD
Regular price
Sale price
$39.70 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Saftey Relay 12VDC
Details:
- AC1 switching capacity: 2000 VA.
- AC15 switching capacity: 230 AC. 500 VA
- 1-phase motor AC3, operation 230 V / AC: 0.37 kW
- Switching current DC 1: (30/110/220 V): 8 mm (0.65 / 0.2 ")
- Switching load (5 V/5 mA): 300 mW
- Underground between coil and contacts (1.2/50 microseconds): 6 kV
- DC coil operating range: 0.75 - 1.2 Un
Compatible Part Numbers:
50.12.9.012.5000
Technical Part Details:
| Type | 50.12.9.012.5000 |
| Coil nominal voltage | 12V DC |
| Min. pick-up voltage | 9V DC |
| Max. pick-up voltage | 14.4V DC |
| Control mode | monostable, 1 coil |
| Resistance (coil) | 184Ω |
| Contact type | 2 change-overs |
| Contact material | AgNi |
| Switching voltage (max.) | 400V AC |
| Switching current (max.) | 8A |
| Max. switching capacity | 2000VA |
| Creepage distance (coil/clips) | 8mm |
| Connection | Solder pins |
| Electrical lifespan | 100 000 Switching cycles |
| Durability | 10 million switching cycles |
| Min. temperature | -40°C |
| Max. temperature | +70°C |
| Length | 29mm |
| Width | 12.4mm |
| Height | 25mm |
| Dim | (L x W x H) 29 x 12.4 x 25 mm |
| Content | 1pc(s) |
| RoHS-compliant | Yes |
| Type | Sefety relay |
| Nominal voltage (details) | 12V DC |
| Nominal current (details) | 8A |
| Switching capacity | 8A |
| Switching current | 8A |
| Dielectric strength | 2500V |
| Type | 50.12.9.012.5000 |
| Ambient temperature | -40 - +70°C |
| Product type | PCB relay |
Technical Data Sheet:
4 in stock
