50.12.9.024.5000 - Safety Relay 24VDC - Finder
50.12.9.024.5000 - Safety Relay 24VDC - Finder
Regular price
$47.64 NZD
Regular price
Sale price
$47.64 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

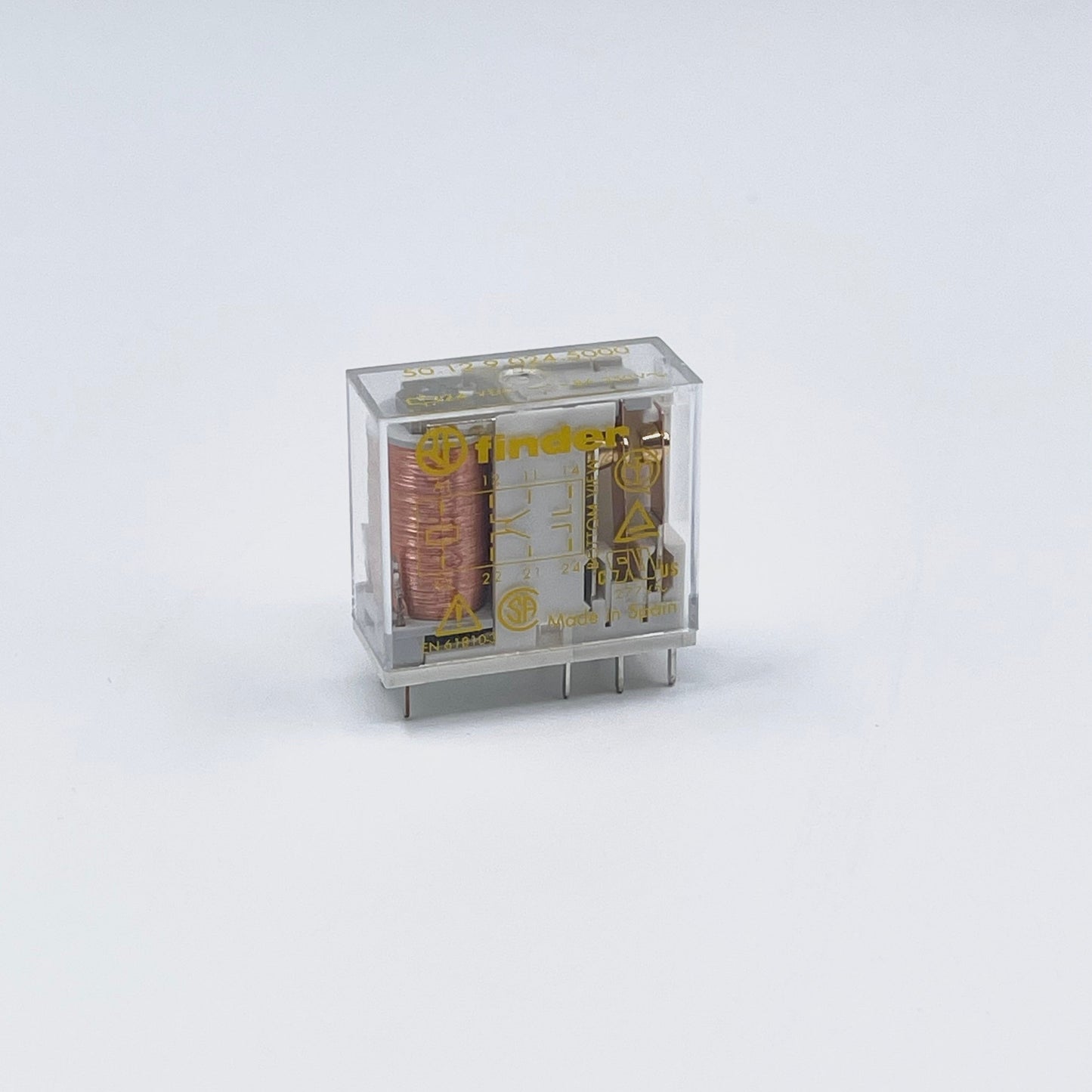

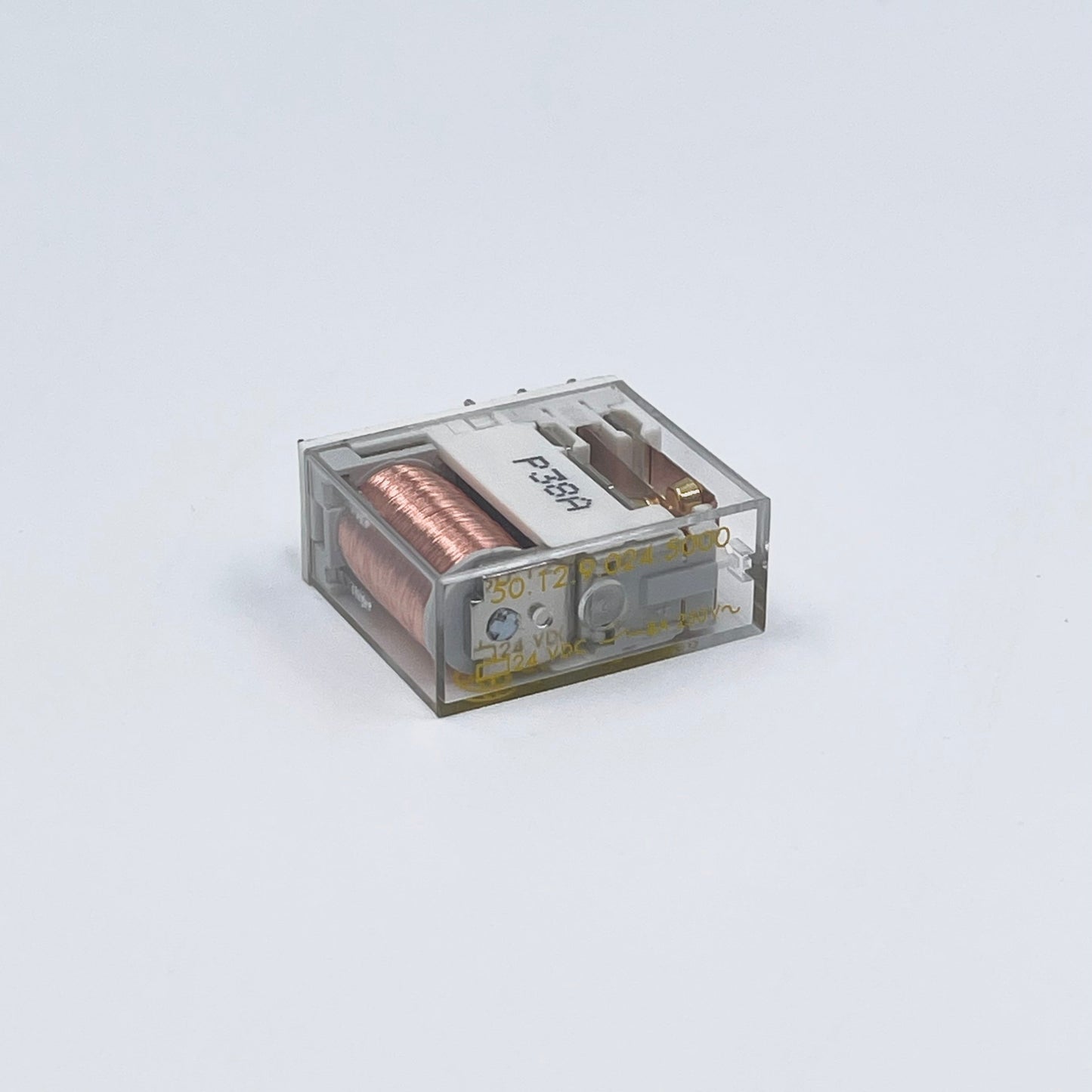

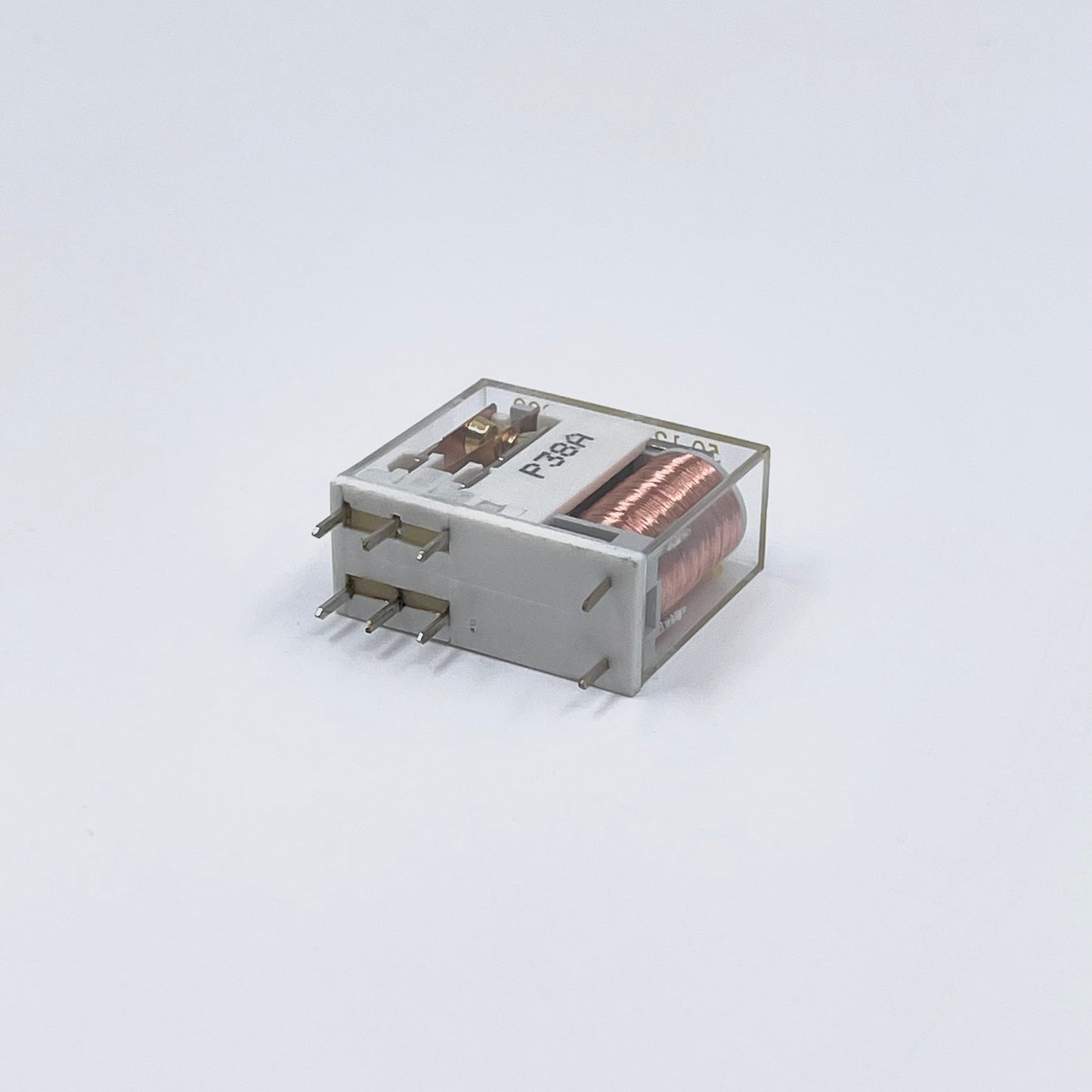

Saftey Relay 24VDC
The Finder 50series PCB mount non-latching relay forcibly guided contact configuration of DPDT. It is actuated with a 24VDC coil voltage and 15A switching current. This safety relay has a high physical separation between adjacent contacts.
Details: 50.12.9.024.5000 Saftey Relay 24VDC
- 8mm creepage and clearance distance
- Coil to contact isolation is 6kV (1.2/50μs)
- Coil power is 700mW
- Coil resistance is 205ohm
- Cadmium free contacts
- Operating temperature ranging between -40°C and 70°C
- Through hole terminal type
Compatible Part Numbers:
50.12.9.024.5000
50.12-024-5000
Technical Part Details:
| Manufacturer | FINDER |
| Type of relay | Electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 24V DC |
| Contact current max. | 15A |
| AC contacts rating At resistive load |
8A / 250V AC |
| DC contacts rating At resistive load |
8A / 30V DC |
| Switched voltage |
Max. 220V DC, max. 400V AC
|
| Relay variant | Safety |
| Mounting | PCB |
| Coil resistance | 820Ω |
| Body dimensions | 29x12.4x25mm |
| Coil power consumption | 700mW |
| Operating temperature | -40...70°C |
| Relay series | 50.12 |
| Contact material | AgNi + Au |
| Terminal pitch | 5mm |
| Coil current | 29.3mA |
Technical Data Sheet:
6 in stock
