AB-18 / PF 090012 - Mounting Bracket
AB-18 / PF 090012 - Mounting Bracket
Regular price
$25.72 NZD
Regular price
Sale price
$25.72 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

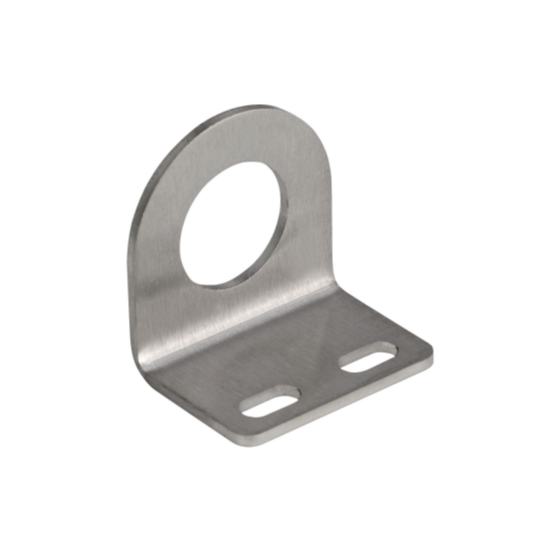

Mounting Bracket, AB-18 / PF 090012
- Retainer for all cylindrical sensors with M18 thread
Datasheet excerpt: Technical data of AB-18
Mounting aid
Compatible Part Numbers:
090012
AB-18
Technical Datasheet:
Datasheet excerpt: Technical data of AB-18 / PF 090012
| General specifications | ||
|---|---|---|
| Inside diameter | 18 mm | |
| Mechanical specifications | ||
| Material | Stainless steel | |
| Dimensions | 38.1 mm x 34.9 mm x 25.4 mm | |
| Height | 25.4 mm | |
| Width | 34.9 mm | |
| Length | 38.1 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
