ReeR 1330902 - AD SR0 - Safety Devices
ReeR 1330902 - AD SR0 - Safety Devices
Regular price
$146.12 NZD
Regular price
Sale price
$146.12 NZD
Unit price
/
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

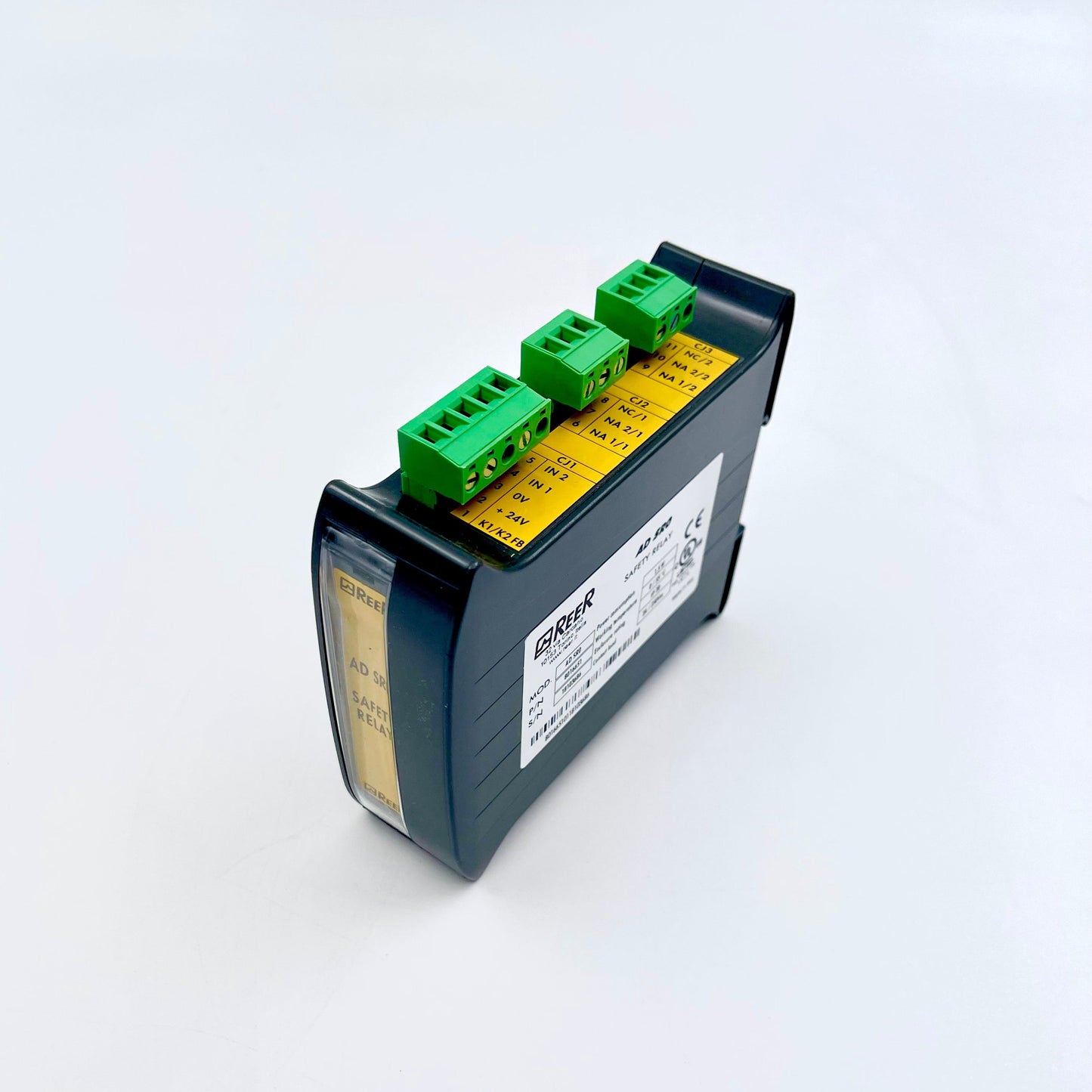

AD SR0
Safety Interface for Safety Light Curtains with Integrated Safety Functions. 2 NO + 1 NC contacts.
Features:
| Safety level | PL e |
| Safety level (SIL / PL) | PL e - Cat. 4 |
| Operating temperature (°C) | 0 ... 55 |
| Response time (ms) | ≤ 20 |
| Signalling | Nothing |
| Connections | Terminal blocks |
| Safety devices to be connected | Safety devices with feedback input for external relay monitor (EDM), such us EOS4 X , EOS2 X, Admiral AX, Vision VX/VXL/MXL and Janus |
| Safety relay outputs | 2 NO + 1 NC (2A at 250 VAC) |
| Packaging dimensions HxLxW (mm) | 57 x 158 x 134 |
| Product class | C |
| Custom tariff | 8536490 |
Electrical Data:
| Power supply (VDC) | 24 ± 20% |
Mechanical Data:
| Dimensions HxWxD (mm) | 101 x 35 x 120 |
| Degree of protection | IP2X |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
| Gross weight (g) | 229,9 |
Compatible Part Numbers:
1330902
AD SR0
ReeR 1330902
Technical Datasheet:
1 in stock
