ReeR 1330914 - AD SRE4C - Safety Devices
ReeR 1330914 - AD SRE4C - Safety Devices
Regular price
$222.92 NZD
Regular price
Sale price
$222.92 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

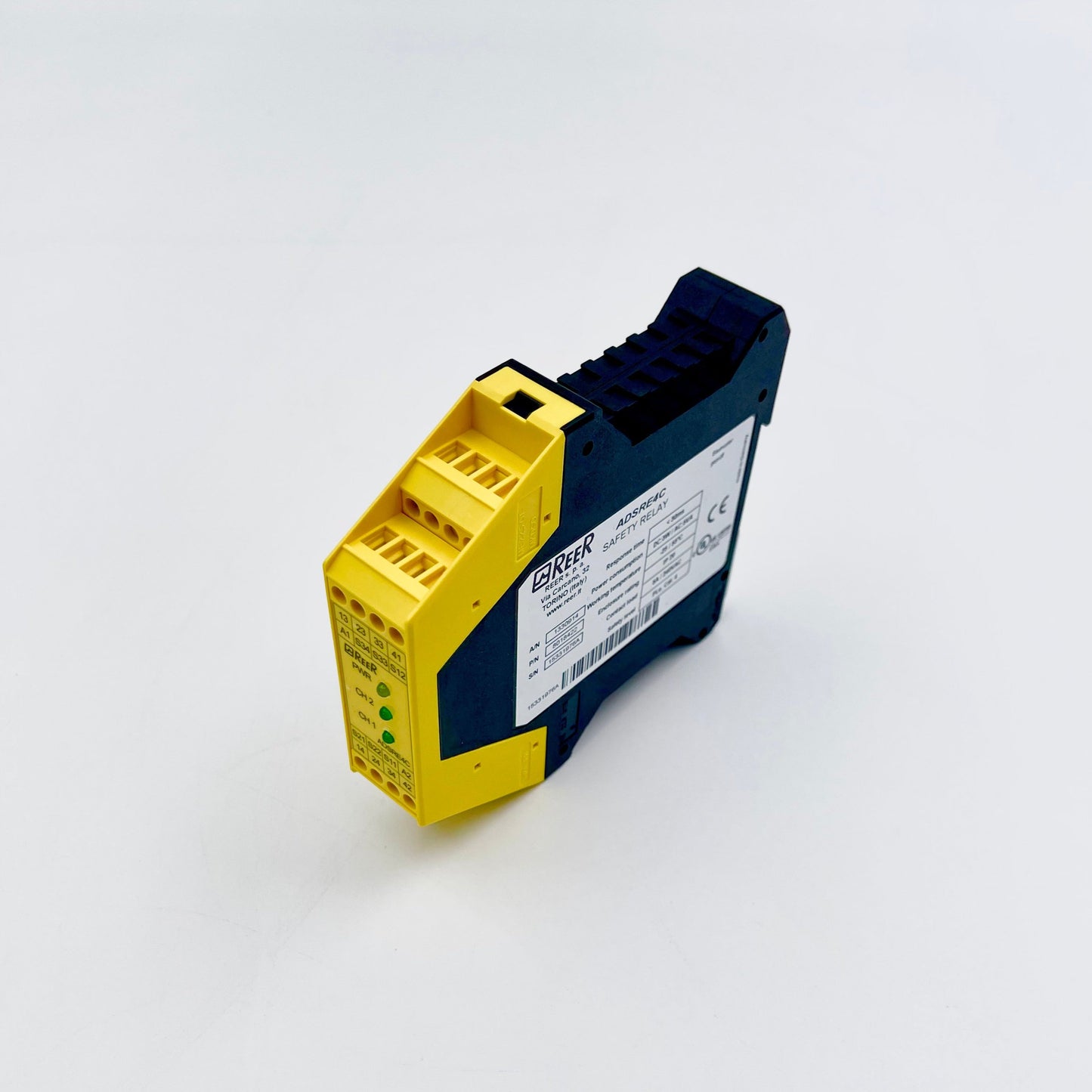

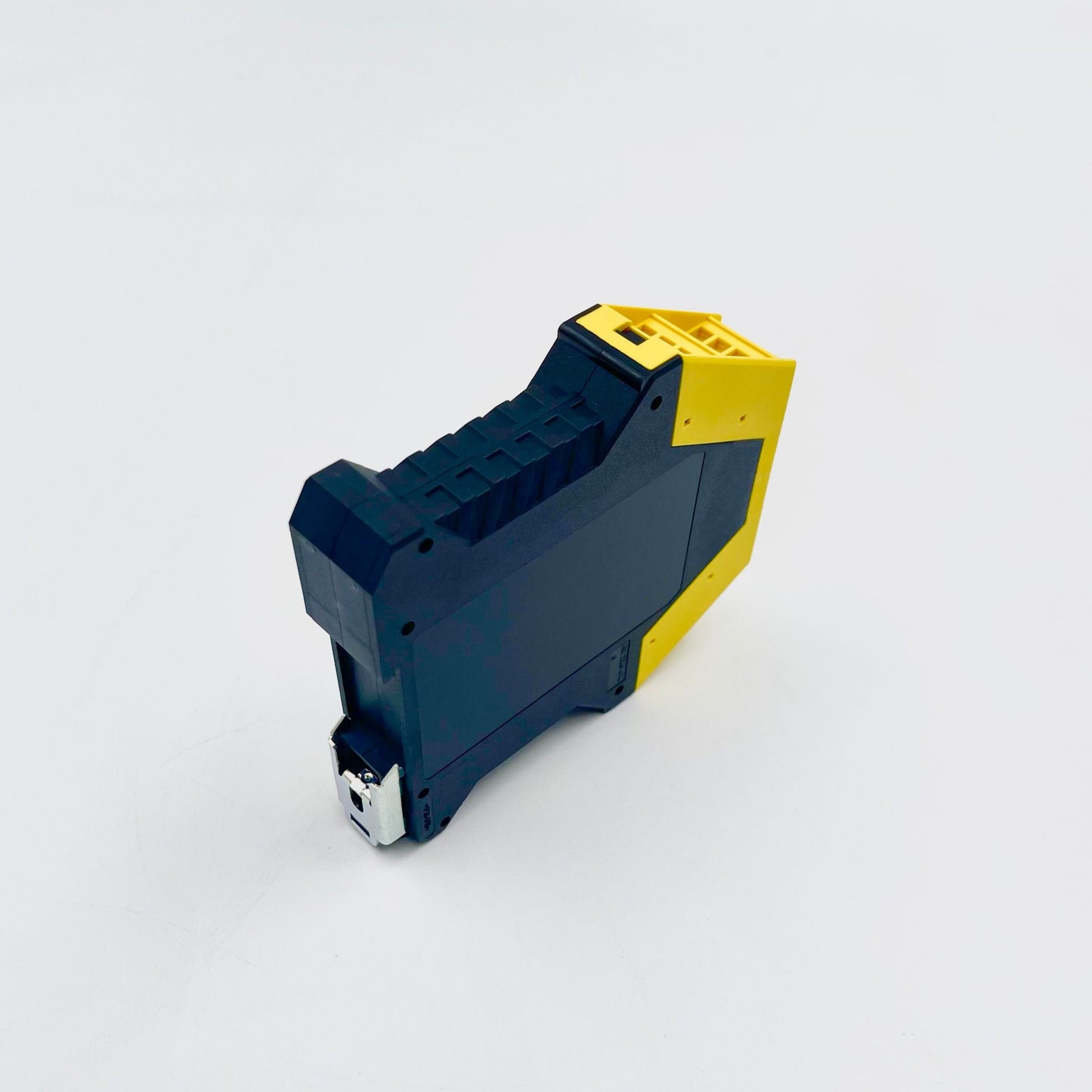

AD SRE4C
Safety Interface for E-Stops and Safety Switches. Manual Monitored Restart. Cat. 4. 3NO + 1NC.
Features:
| Safety level | PL e |
| Safety level (SIL / PL) | PL e - Cat. 4 |
| Operating temperature (°C) | - 25 ... 55 |
| Response time (ms) | ≤ 50 |
| Signalling | LEDs indication for status and diagnostic: power supply, channel 1 and channel 2 |
| Connections | Terminal blocks |
| MTTFD (ISO13849) years | 71 |
| Safety devices to be connected | Emergency stop buttons and safety switches |
| Start/Restart | Manual |
| Min. switching current at 24 VDC (mA) | 6 |
| Safety relay outputs | 3 NO + 1 NC (5A at 250 VAC) |
| Packaging dimensions HxLxW (mm) | 47 x 165 x 110 |
| Product class | C |
| Custom tariff | 85365080 |
Electrical Data:
| Power supply (VDC) | 24 ± 20% |
Mechanical Data:
| Dimensions HxWxD (mm) | 99 x 22,5 x 114 |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
| Gross weight (g) | 220 |
Compatible Part Numbers:
1330914
AD SRE4C
ReeR 1330914
Instruction Manual:
3 in stock
