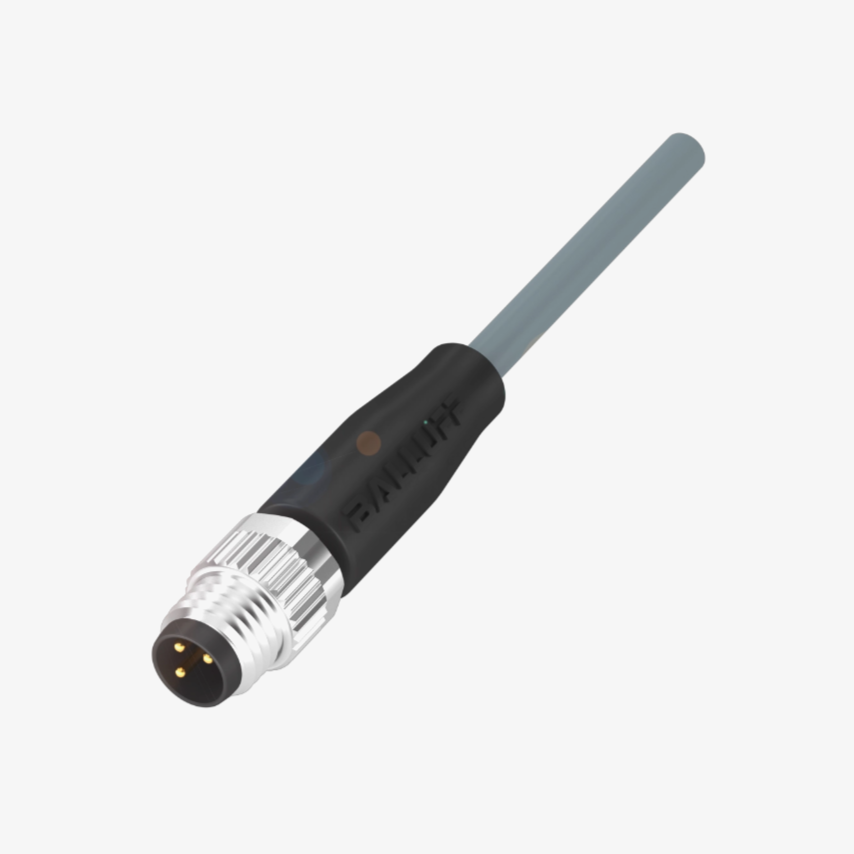

Single-Ended Cordsets
M8, Male, straight, 3-pin, A-coded
Compatible Part Numbers:
BCC02NM
BCC M313-0000-20-001-VX8334-050
Technical Data Of:
| Specification | Value |
|---|
| Connection | M8x1-Male, straight, 3-pin, A-coded |
| Cable | PVC gray, 5 m, drag chain compatible |
| Number of conductors | 3 |
| Conductor cross-section | 0.34 mm² |
| Cable temperature, fixed routing | -40…105 °C |
| Cable temperature, flexible routing | -5…105 °C |
| Operating voltage Ub | 60 VDC / 60 VAC |
| Rated current (40 °C) | 4.0 A |
| IP rating | IP67, IP69K |
| Approval/Conformity | CE; cULus; WEEE |
Technical Datasheet:
