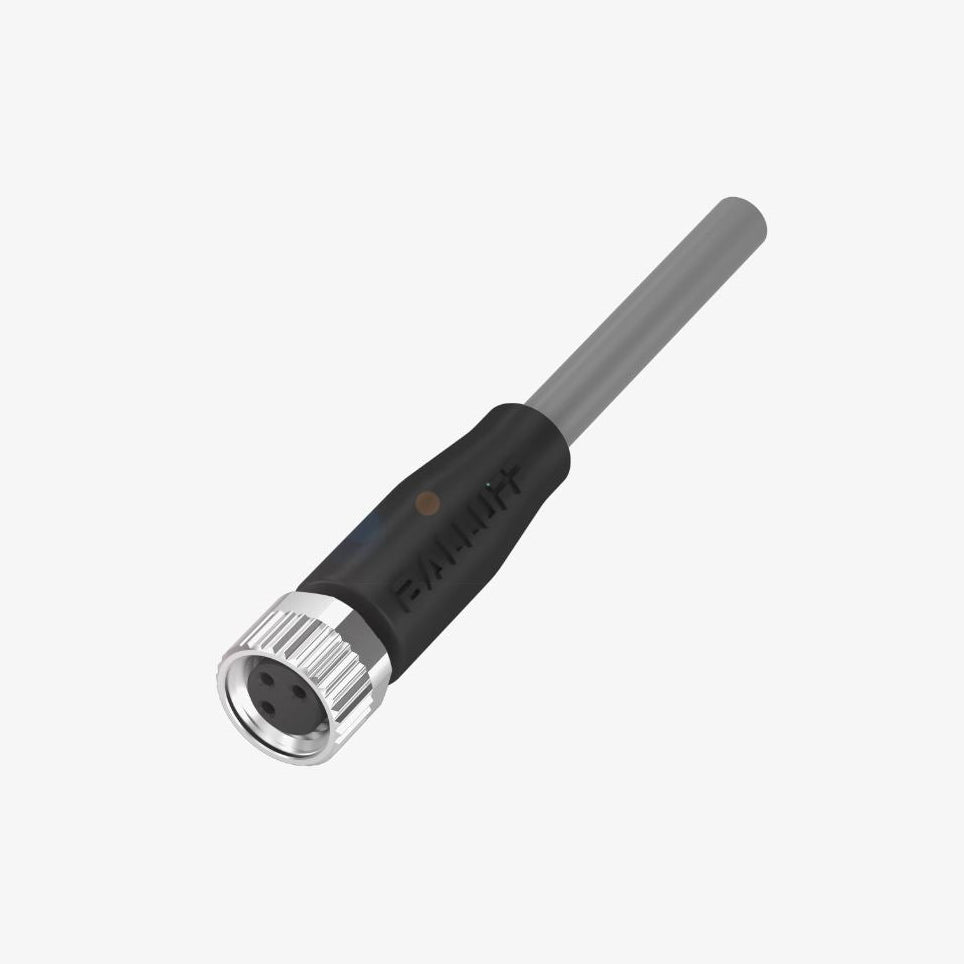

Balluff BCC02NY - Single-Ended Cordsets
Balluff BCC02NY - Single-Ended Cordsets
Regular price
$32.55 NZD
Regular price
Sale price
$32.55 NZD
Unit price
/
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Single-Ended Cordsets
M8, Female, straight, 3-pin, A-coded, PVC, 10m
Compatible Part Numbers:
STM8F3PVC S10
BCC02NY
BCC M313-0000-10-001-VX8334-100
Technical Data Of: BCC02NY
Connection |
M8x1-Female, straight, 3-pin, A-coded
|
Cable |
PVC gray, 10 m, drag chain compatible
|
Number of conductors | 3 |
Conductor cross-section | 0.34 mm² |
Cable temperature, fixed routing | -40...105 °C |
Cable temperature, flexible routing | -5...105 °C |
Operating voltage Ub |
60 VDC / 60 VAC
|
Rated current (40 °C) | 4.0 A |
IP rating | IP67, IP69K |
Approval/Conformity |
CE, cULus, WEEE
|
Technical Datasheet:
