Balluff BCC02PE - Double-Ended Cordsets -M8, Male, Straight, 4 pin
Balluff BCC02PE - Double-Ended Cordsets -M8, Male, Straight, 4 pin
Regular price
$25.94 NZD
Regular price
Sale price
$25.94 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Double-Ended Cordset

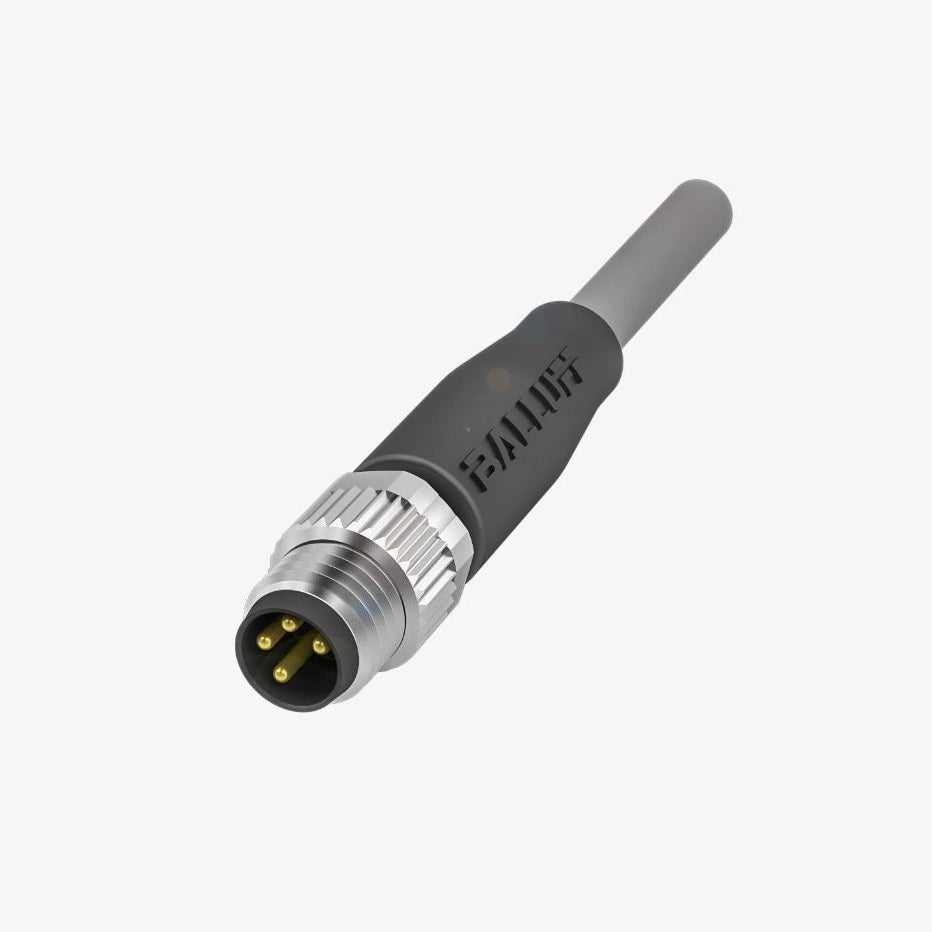

M8, Male, Straight, 4 pin, A-coded, PVC gray, 5 m, drag chain compatible
Details:
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, Balluff.
| Specification | Details |
|---|---|

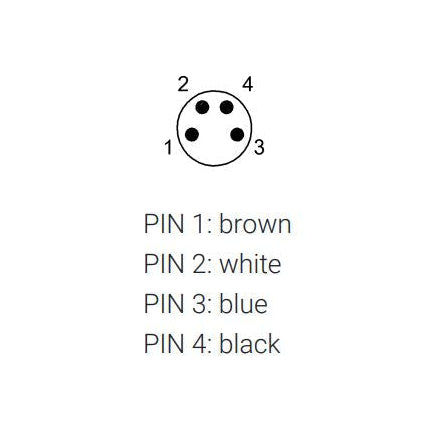

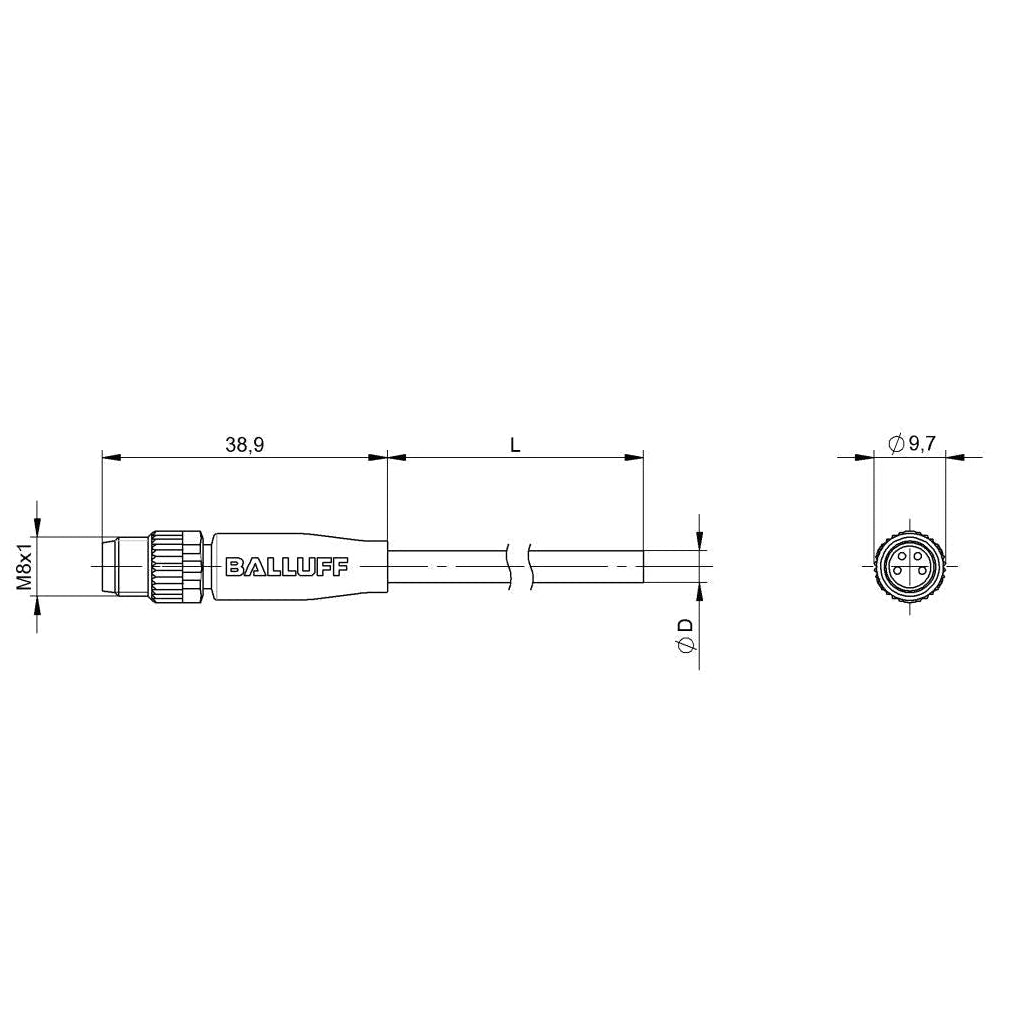

| Connection | M8x1-Male, straight, 4-pin, A-coded |
| Switching output | Complementary |
| Cable | PVC gray, 5 m, drag chain compatible |
| Number of conductors | 4 |
| Conductor cross-section | 0.34 mm² |
| Cable temperature, fixed routing | -40...105 °C |
| Cable temperature, flexible routing | -5...105 °C |
| Operating voltage Ub | 60 VDC / 60 VAC |
| Rated current (40 °C) | 4.0 A |
| IP rating | IP67, IP69K |
| Approval/Conformity | CE, cULus, UKCA, WEEE |
Compatible Part Numbers:
BCC02PE
Typecode / BCC M314-0000-20-003-VX8434-050
Technical Datasheet:
2 in stock
