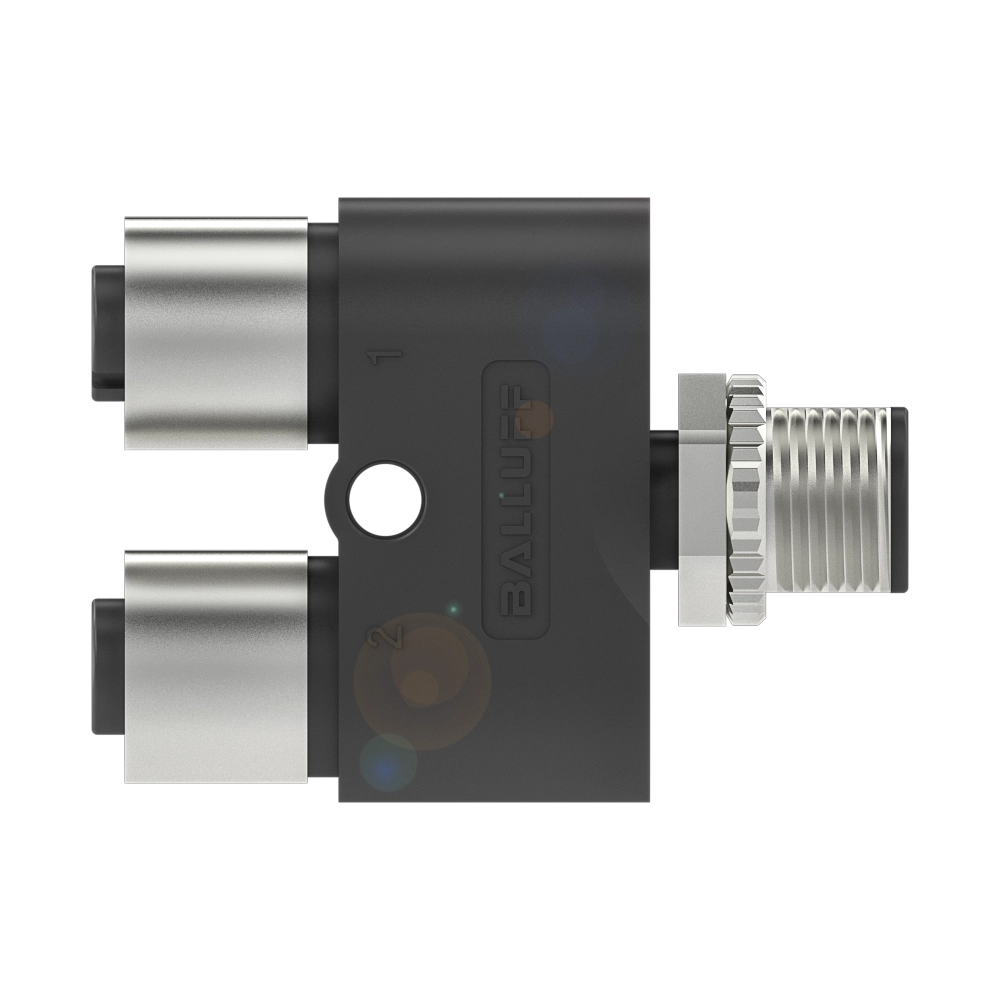

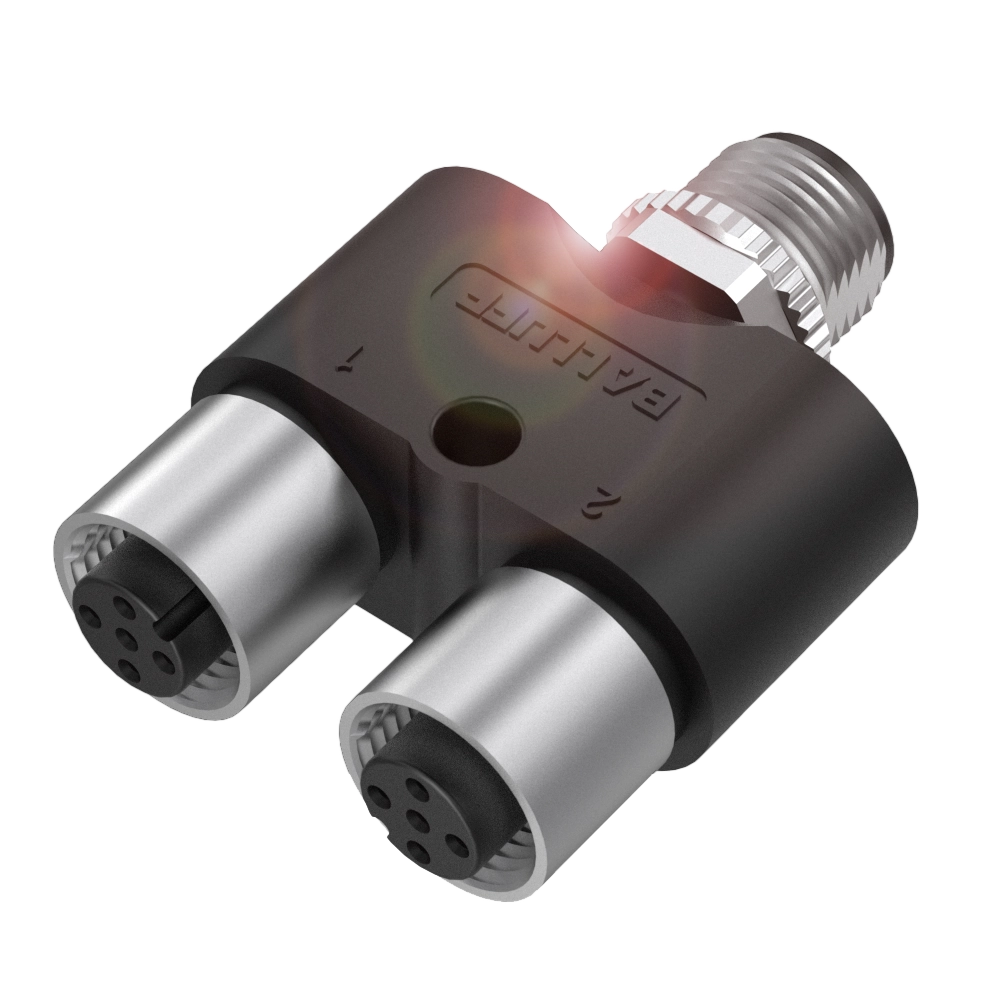

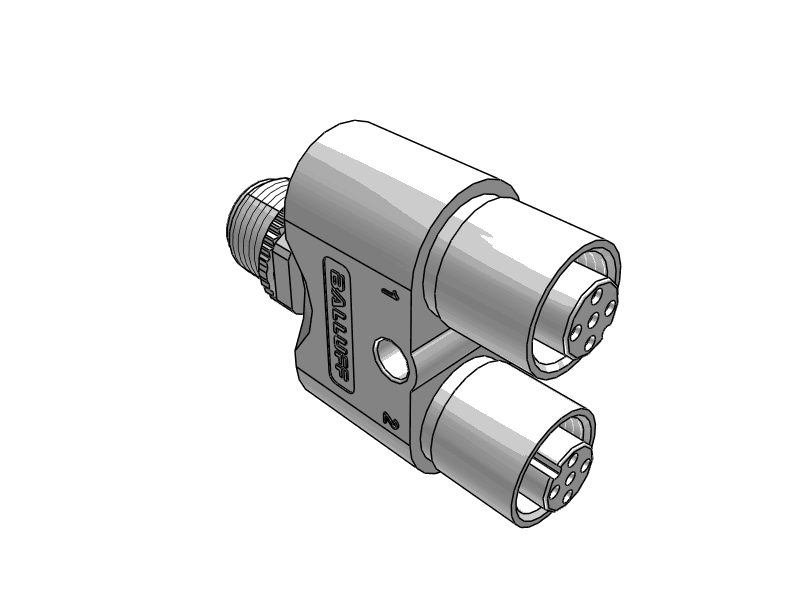

Balluff BCC089P - M12 Splitter

The Balluff BCC089P (Part Number: BCC M415-M415-M415-U0003-000) is a heavy-duty M12 T-splitter designed for parallel power and signal distribution in automated sensor networks. Featuring a 1-to-2 port configuration, it splits one 5-pin M12 male port into two 4-pin M12 female ports—providing pass-through connection for pins 1 through 4 while leaving pin 5 internally disconnected (NC).

Key Features

• 4-Pin Output Wiring (Pin 5 Disconnected): Directs pins 1–4 to both female branch ports while pin 5 remains unconnected, making it ideal for standard 4-wire sensors and field devices.
• Industry-Standard A-Coding: M12 A-coded interface ensures seamless plug-and-play integration with standard proximity switches, photoelectric sensors, and I/O devices.
• Rugged IP67 Sealed Design: Industrial-grade protection safeguards connections against dust, moisture, and washdowns in demanding factory environments.
• Durable Construction: Built with robust PA 6.6 housing, gold-plated contacts for high signal integrity, and nickel-plated brass coupling nuts for vibration resistance.

Technical Specifications

Common Applications

• Connecting dual 4-pin PNP/NPN sensors to a single trunk run.
• Splitting 24V DC auxiliary power and IO lines across multiple devices.
• Conveyor controls, industrial automation lines, and robotic end-effectors requiring standard 4-conductor wiring.
