Balluff BCC09FU - Double-Ended Cordsets
Balluff BCC09FU - Double-Ended Cordsets
Regular price
$59.89 NZD
Regular price
Sale price
$59.89 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

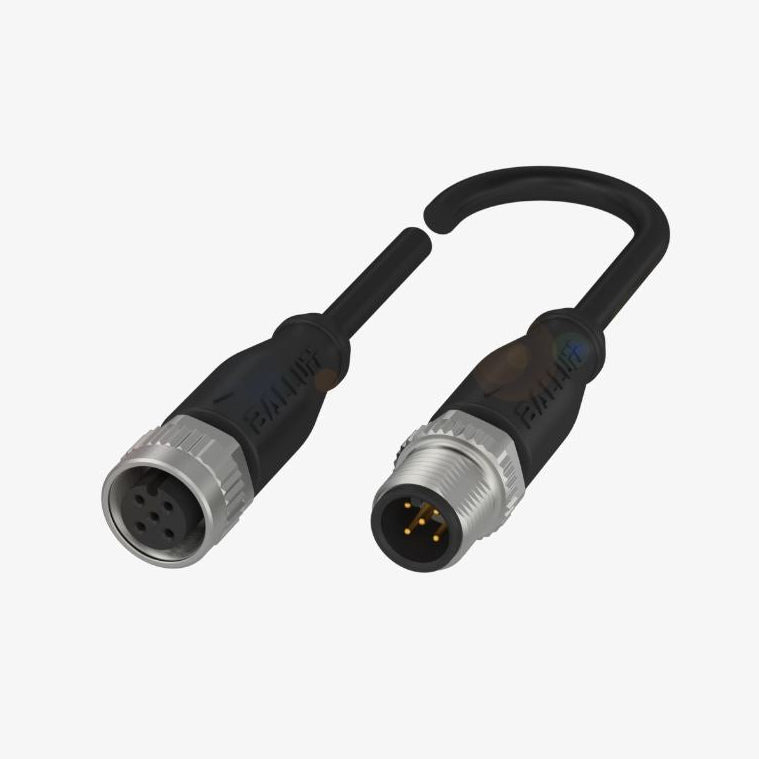

Double-Ended Cordsets

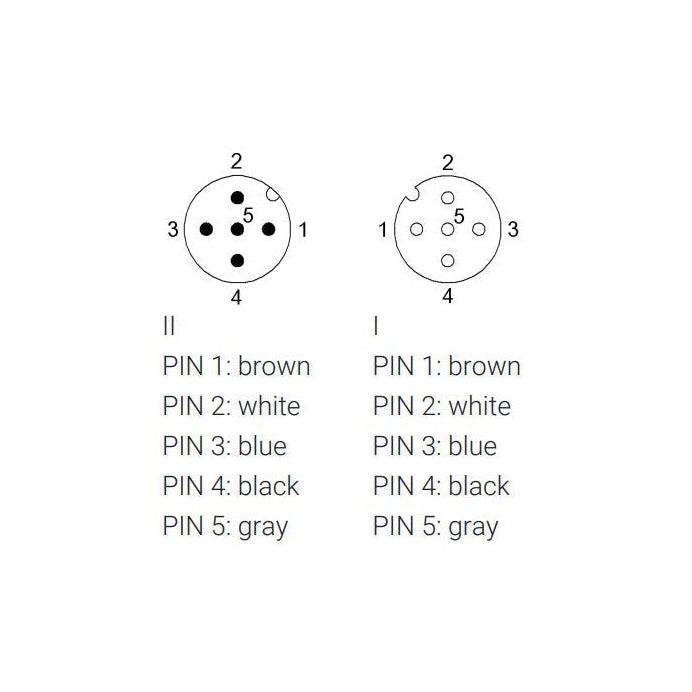

Connection 1 - M12, Female, straight, 5pin, A-coded
Connection 2 - M12, Male, straight, 5pin, A-coded
Cable - PUR, 5m
Compatible Part Numbers:
STM12MM12F5PUR S5
BCC09FU
BCC M415-M415-3A-312-PX0534-050

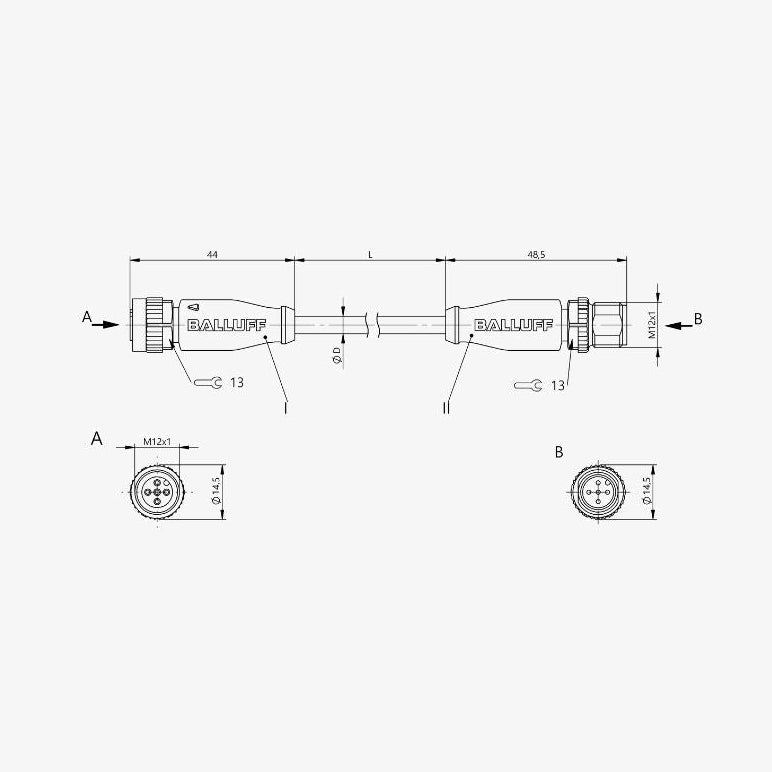

Technical Data Of:
| Connection 1 |
M12x1-Female, straight, 5-pin, A-coded
|
| Connection 2 |
M12x1-Male, straight, 5-pin, A-coded
|
| Cable |
PUR black, 5 m, drag chain compatible
|
| Number of conductors | 5 |
| Cable temperature, fixed routing | -50...90 °C |
| Cable temperature, flexible routing | -25...90 °C |
| Operating voltage Ub |
60 VDC / 60 VAC
|
| Rated current (40 °C) | 4.0 A |
| IP rating |
IP67, IP68, IP69K / IP67, IP68, IP69K
|
| Approval/Conformity |
CE, cULus, UKCA, WEEE
|
Technical Datasheet:
Out of stock
