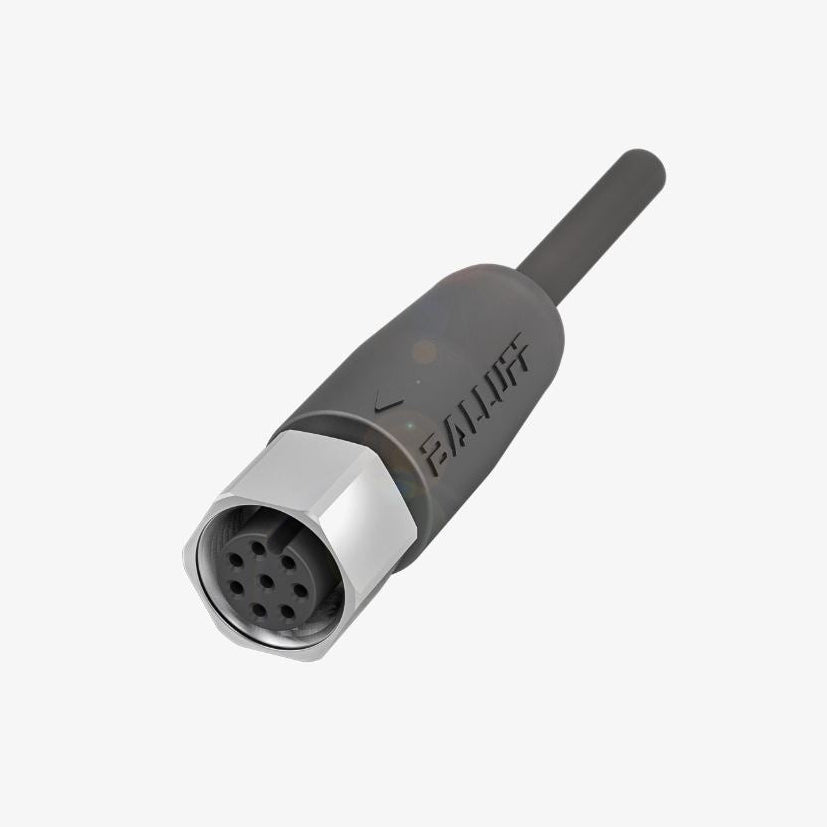

Single-Ended Cordsets
M12, Female, Straight 8-pin, A-coded, PVC, 5m
Compatible Part Numbers:
BCC0H3K
BCC S418-0000-1A-069-VX8825-050
Technical Data Of: BCC0H3K
| Special characteristics | Washdown |
| Connection |

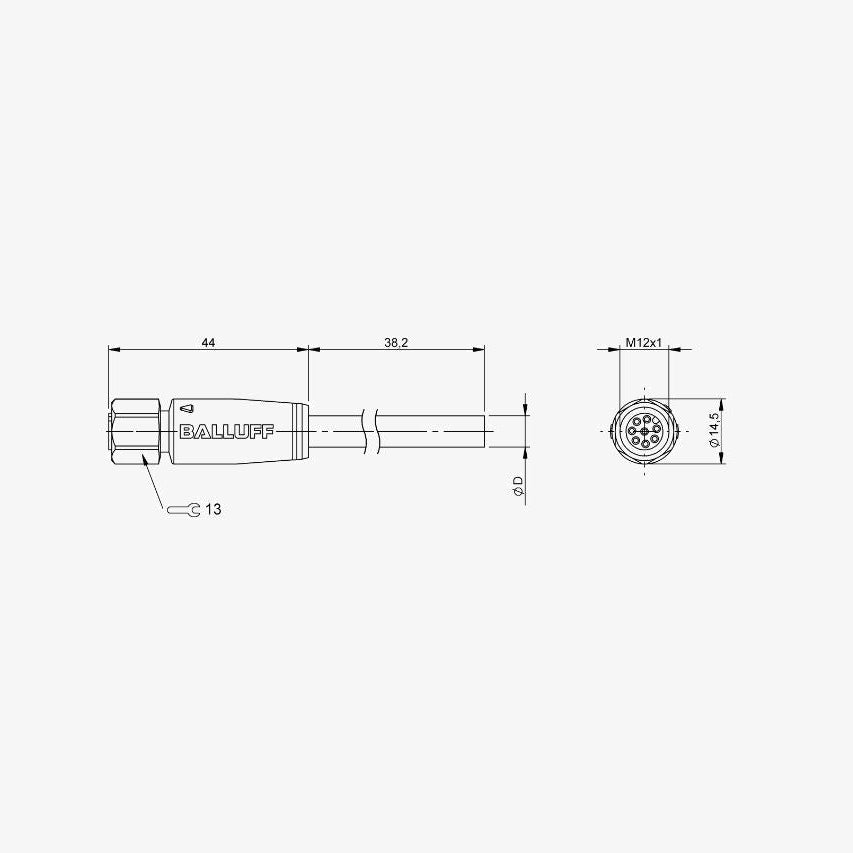

M12x1-Female, straight, 8-pin, A-coded
|
| Switching output | Complementary |
| Cable |
PVC gray, 5 m, drag chain compatible
|

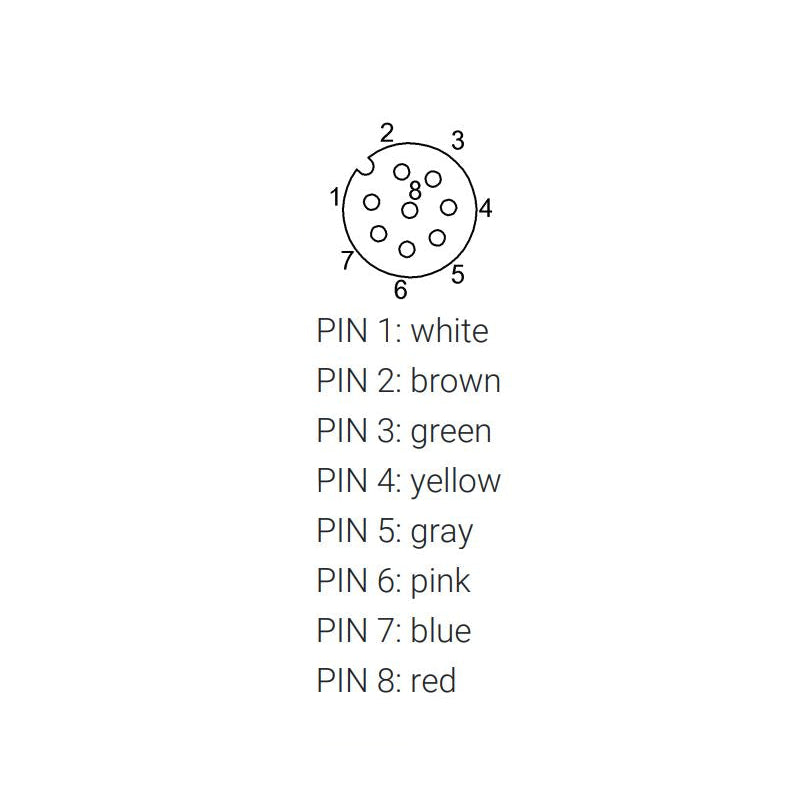

| Number of conductors | 8 |
| Conductor cross-section | 0.25 mm² |
| Cable temperature, fixed routing | -40...105 °C |
| Cable temperature, flexible routing | -5...105 °C |
| Operating voltage Ub |
30 VDC / 30 VAC
|
| Rated current (40 °C) | 2.0 A |
| IP rating |
IP67, IP68, IP69K
|
| Approval/Conformity |
CE, cULus, Ecolab, WEEE
|
Technical Datasheet:
