B1PNP (NO)

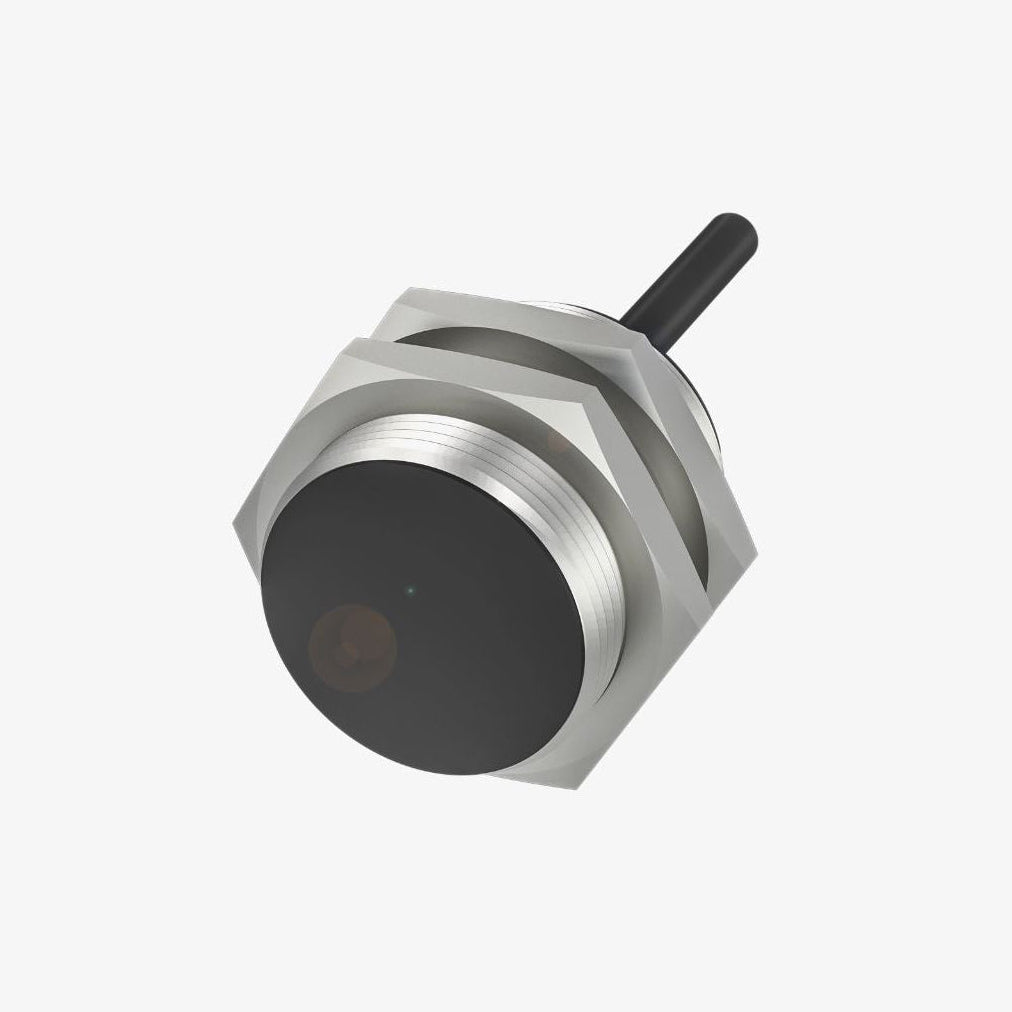

Balluff - M30 PNP (NO) - Inductive Sensor BES00F3
Balluff - M30 PNP (NO) - Inductive Sensor BES00F3
Regular price
$124.10 NZD
Regular price
Sale price
$124.10 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Sensor
M30 PNP (NO) Cable PUR Sheilded Sn: 10mm
Compatible Part Numbers:
BES00F3
BES M30MD-PSC10B-BP02-003
Technical Data Of: BES00F3
| Dimension | Ø 30 x 36 mm |
| Style | Housing |
| Thread | M30x1.5 |
| Installation |
for flush mounting
|
| Range | 10 mm |
| Switching output |
PNP normally open (NO)
|
| Switching frequency | 150 Hz |
| Housing material |
Brass, nickel-plated
|
| Material sensing surface | PA 12 |
| Connection |
Cable, 2.00 m, PUR
|
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity |
cULus, CE, UKCA, WEEE
|
Technical Data Sheet:
1 in stock
