B3PNP (NO/NC)

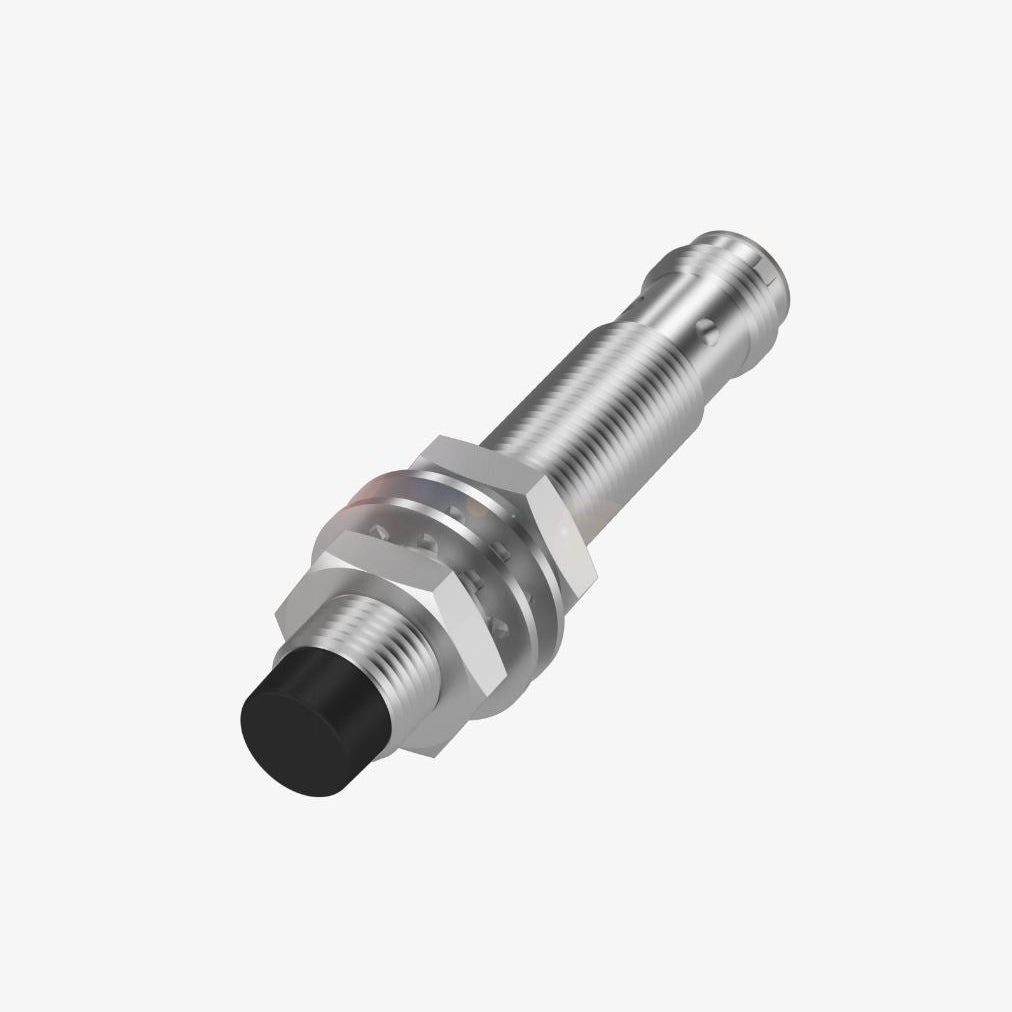

Balluff - M12 PNP (NO/NC) - Inductive Sensor BES0178
Balluff - M12 PNP (NO/NC) - Inductive Sensor BES0178
Regular price
$166.45 NZD
Regular price
Sale price
$166.45 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Sensor
M12 PNP (NO/NC) M12 4pin Unsheilded Sn: 4mm
Compatible Part Numbers:
BES0178
BES 516-131-S4-C
Technical Data Of: BES0178

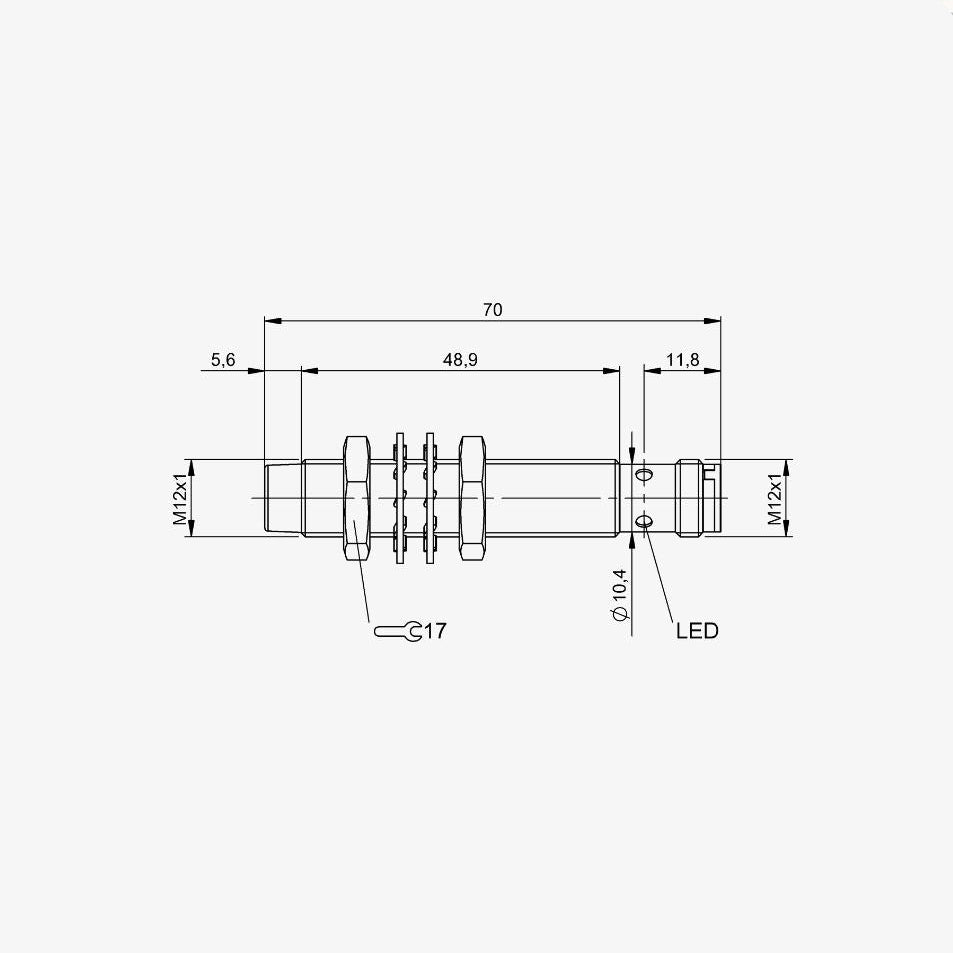

| Dimension | Ø 12 x 70 mm |
| Style Housing | M12x1 |
| Installation | Non-flush |
| Range | 4 mm |
| Switching output |
PNP normally open/normally closed (NO/NC)
|
| Switching frequency | 2500 Hz |
| Housing material | Stainless steel |
| Material sensing surface | PBT |
| Connection |
Connector, M12x1-Male, 4-pin
|
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -40...85 °C |
| IP rating | IP68 |
| Approval/Conformity |
CE, UKCA, cULus, WEEE
|
Technical Datasheet:
1 in stock
