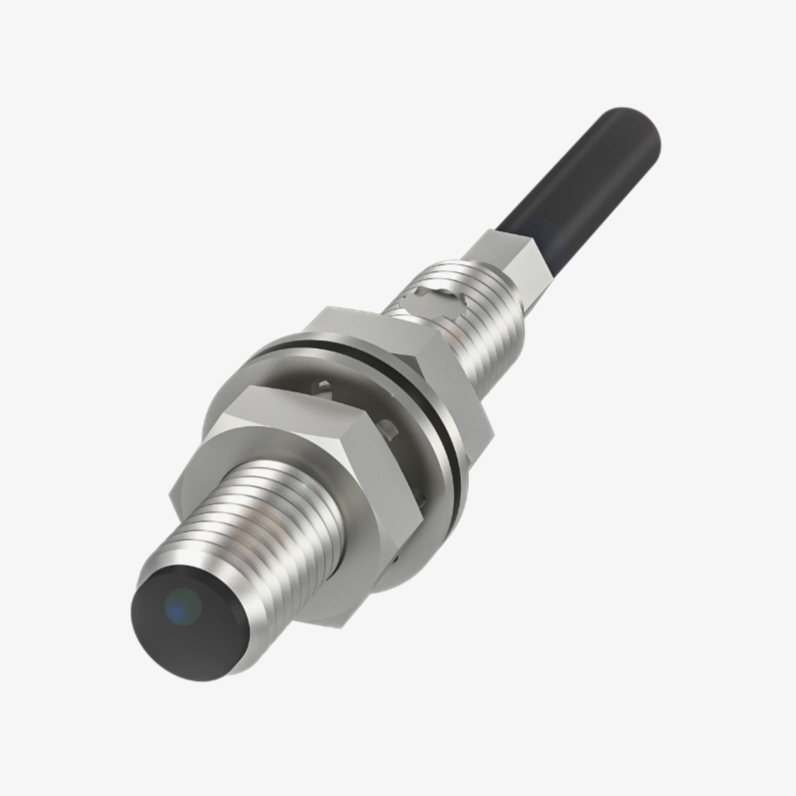

Balluff - M4 PNP (NO) - Inductive Sensor BES03Z8
Balluff - M4 PNP (NO) - Inductive Sensor BES03Z8
Regular price
$178.76 NZD
Regular price
Sale price
$178.76 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Sensor
M4 PNP (NO) Cable PUR Sn: 1mm
Compatible Part Numbers:
BES03Z8
BES M04EC-PSC10B-EP02
Technical Data Of: BES03Z8

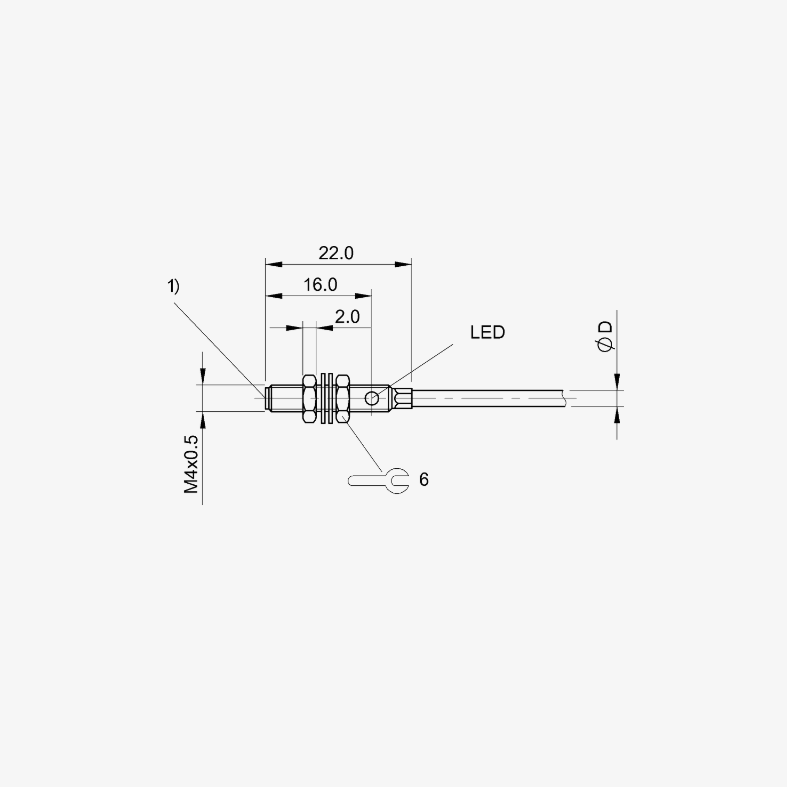

| Dimension | Ø 4 × 22 mm |
| Style | Housing |
| Thread | M4 × 0.5 |
| Installation |
For flush mounting
|
| Range | 1 mm |

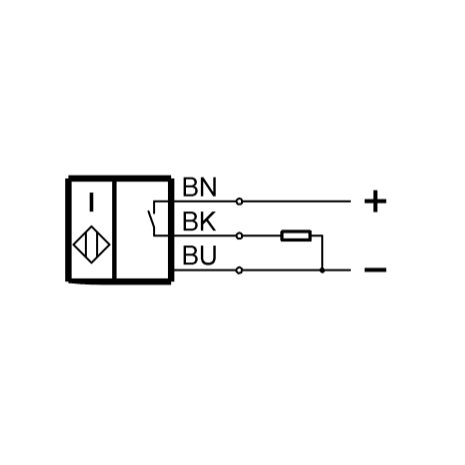

| Switching output |
PNP normally open (NO)
|
| Switching frequency | 3500 Hz |
| Housing material | Stainless steel |
| Material sensing surface | PBT |
| Connection |
Cable, 2.00 m, PUR
|
| Operating voltage Ub | 10…30 VDC |
| Ambient temperature | -25…70 °C |
| IP rating | IP67 |
| Approval/Conformity |
CE, UKCA, cULus, WEEE
|
Technical Datasheet:
