B5PNP (NO)

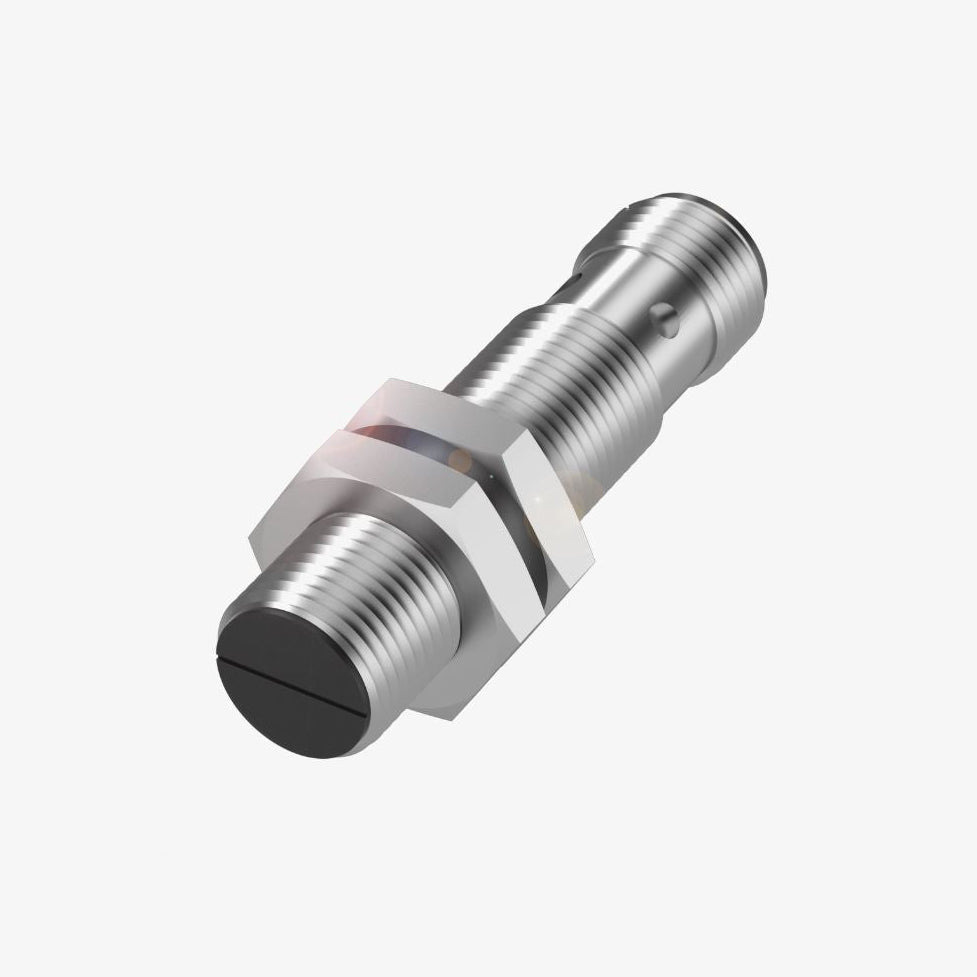

Balluff - M12 PNP (NO) - Cylindrical Magnetic Field Sensor BMF00C7
Balluff - M12 PNP (NO) - Cylindrical Magnetic Field Sensor BMF00C7
Regular price
$170.65 NZD
Regular price
Sale price
$170.65 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Cylindrical Magnetic Field Sensor
M12 PNP (NO) M12 4pin
Compatible Part Numbers:
BMF00C7
BMF 12M-PS-C-2-S4
Technical Data of: BMF00C7

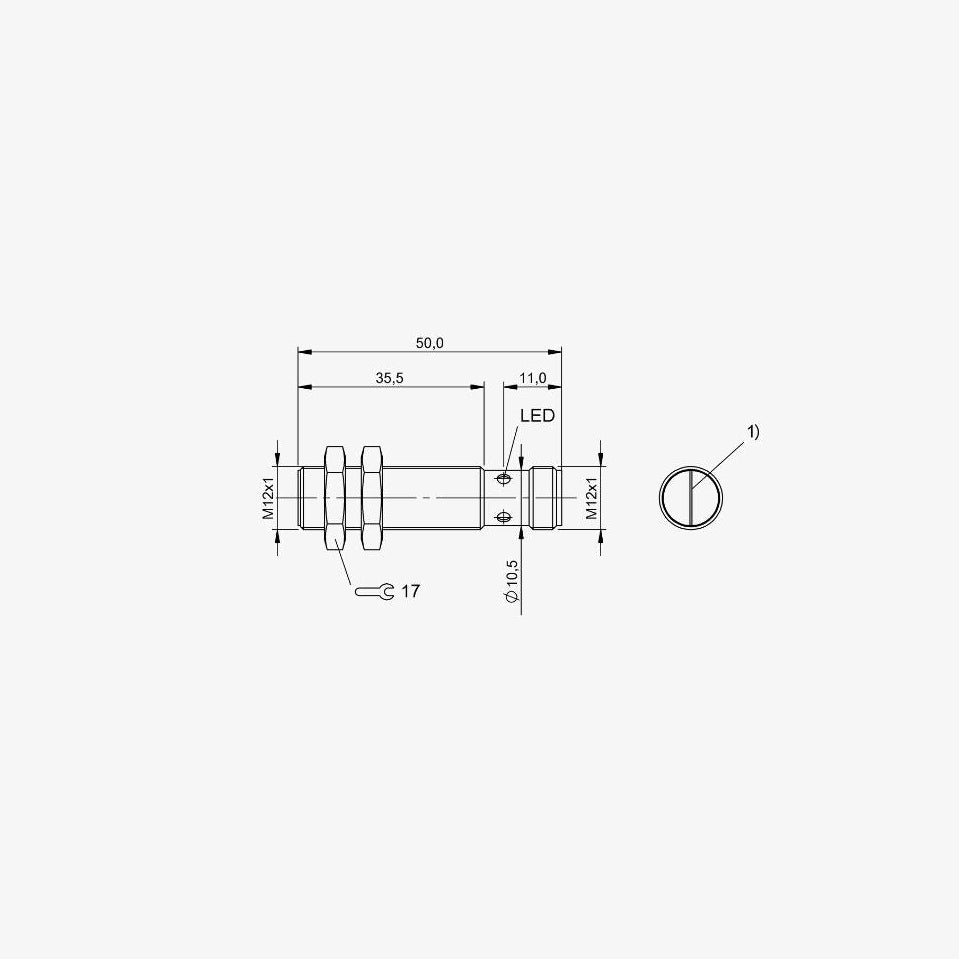

| Dimension | Ø 12 x 50 mm |
| Principle of operation |
Magnetic field sensor
|
| Connection |
M12x1-Male, 4-pin, A-coded
|
| Housing material | Brass |
| Switching output |
PNP normally open (NO)
|
| Switching frequency | 10000 Hz |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity |
CE, UKCA, WEEE, cULus
|
Technical Datasheet:
1 in stock
