B7PNP (NO)
Balluff - PNP (NO) - Diffuse Sensor BOS022C
Balluff - PNP (NO) - Diffuse Sensor BOS022C
Regular price
$311.89 NZD
Regular price
Sale price
$311.89 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

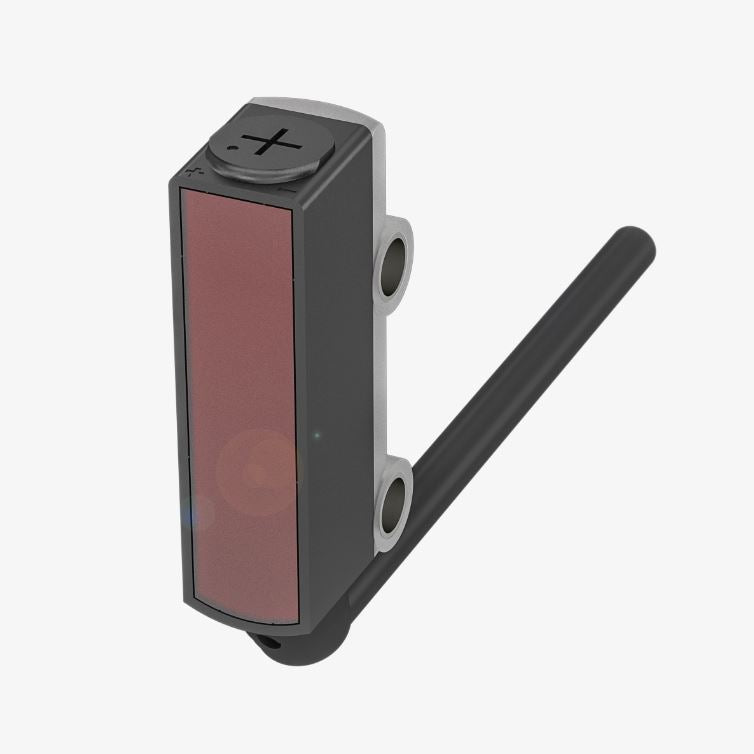

Diffuse Sensor
PNP (NO) Cable PVC Sn: 1-150mm
Compatible Part Numbers:
BOS022C
BOS R020K-PS-RH12-02
Technical Data Of: BOS022C
| Series | R020K |

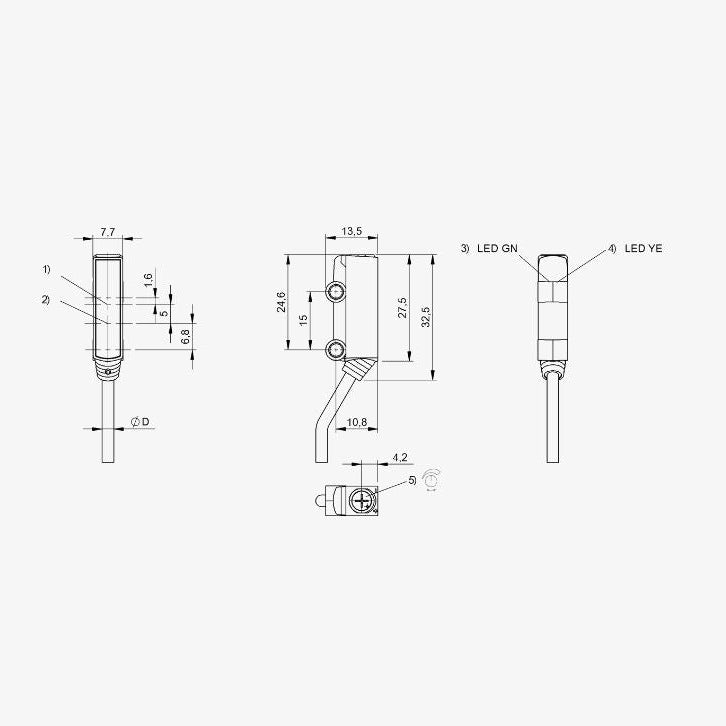

| Dimension | 7.7 x 32.5 x 13.5 mm |
| Interface | PNP normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, triangulation |
| Special optical feature | Background suppression |
| Beam characteristic | Focus, typical at 15 mm |
| Light type | LED, red light |
| Light spot size | Ø 4.4 mm at 80 mm |
| Range | 1...150 mm |
| Connection | Cable, 2.00 m, PVC |
| Housing material | ABS |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE |
| cULus | |
| WEEE | |
| UKCA |
Technical Data Sheet:
1 in stock
