B8NPN (NO/NC)

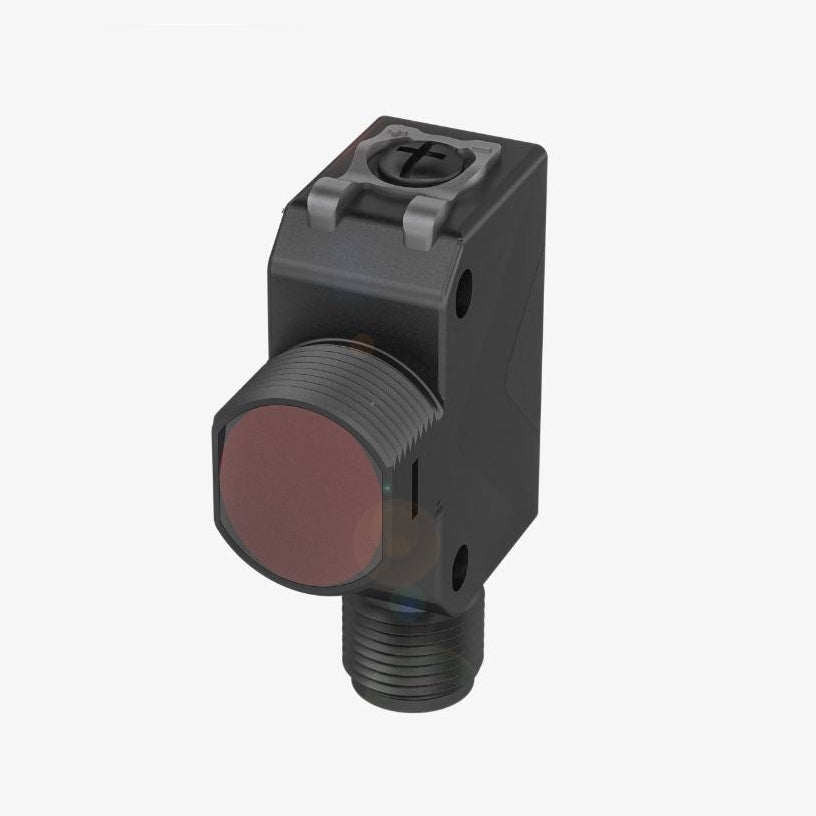

Balluff - NPN (NO/NC) - Diffuse Sensor BOS0297
Balluff - NPN (NO/NC) - Diffuse Sensor BOS0297
Regular price
$143.05 NZD
Regular price
Sale price
$143.05 NZD
Unit price
/
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Sensor
NPN (NO/NC) M12 4pin Sn: 5-300mm
Compatible Part Numbers:
BOS0297
BOS R81K-NA-RD10-S4
Technical Data Of: BOS0297
| Series | R81K |

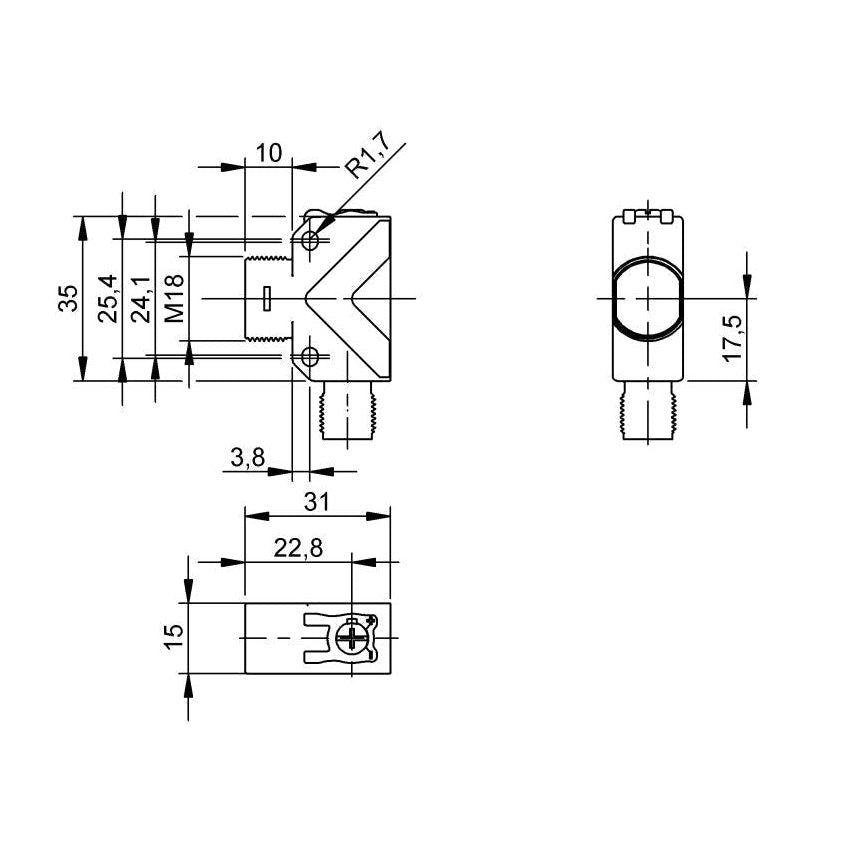

| Dimension |
15 x 48.9 x 31 mm
|
| Interface |

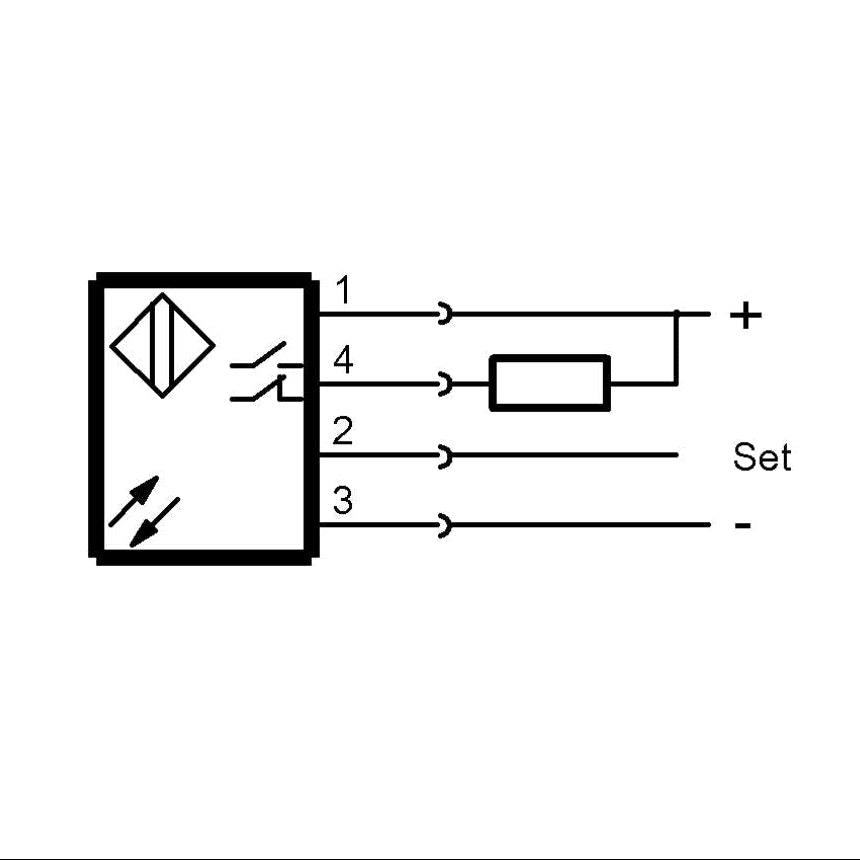

NPN normally open (NO), normally closed (NC)
|
| Principle of operation |
Photoelectric sensor
|
| Principle of optical operation | Diffuse sensor |
| Light type | LED, red light |
| Light spot size |
18 x 18 mm at 300 mm
|
| Range | 5...300 mm |
| Connection |

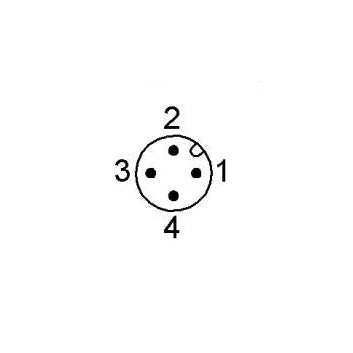

Connector, M12x1-Male, 4-pin
|
| Housing material | ABS, PMMA |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity |
CE, cULus, UKCA, WEEE
|
Technical Datasheet:
2 in stock
