NPN (NO)
Balluff - M8 NPN (NO) - Inductive Sensor BES0025
Balluff - M8 NPN (NO) - Inductive Sensor BES0025
Regular price
$92.84 NZD
Regular price
Sale price
$92.84 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

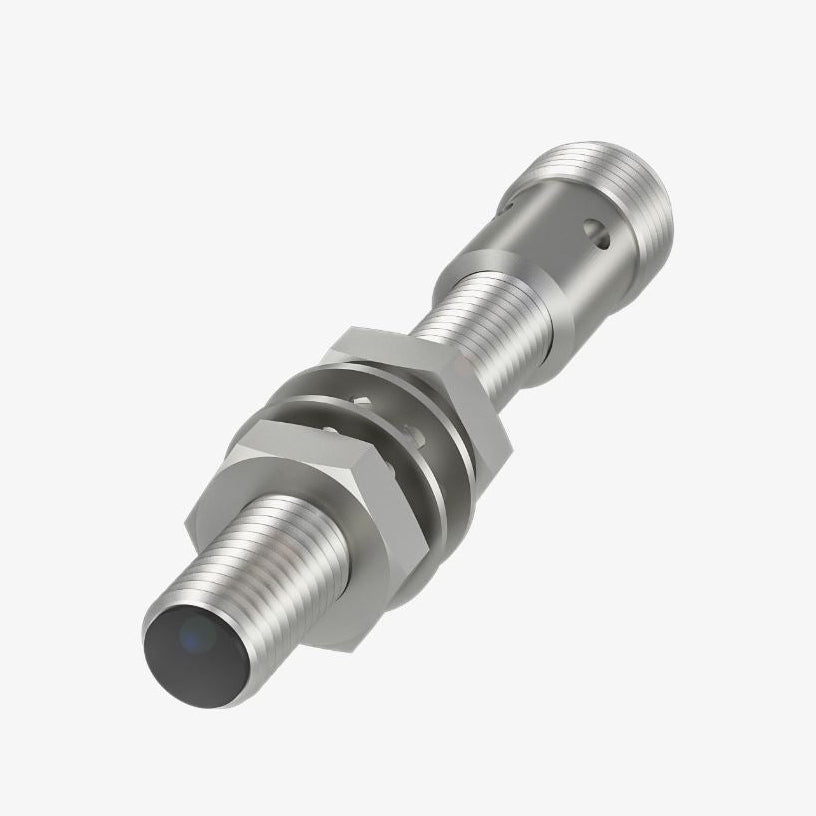

Inductive Sensor
M8 NPN (NO) M12 4pin Sheilded Sn: 2mm
Compatible Part Numbers:
BES0025
BES M08MH1-NSC20B-S04G
Technical Data Of: BES0025

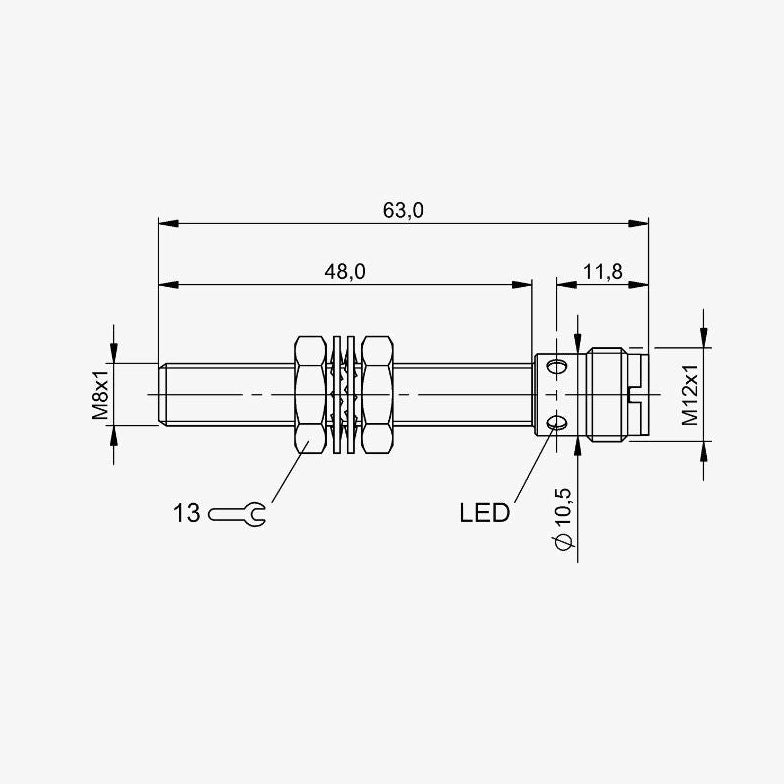

| Dimension | Ø 8 x 65 mm |
| Style Housing | M8x1 |
| Installation |
for flush mounting
|
| Range | 2 mm |

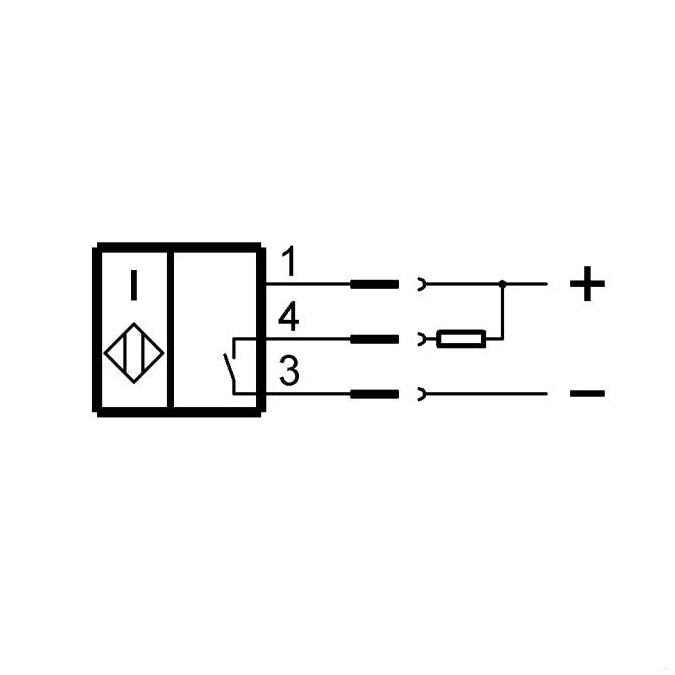

| Switching output |
NPN normally open (NO)
|
| Switching frequency | 700 Hz |
| Housing material |
Brass, nickel-plated
|
| Material sensing surface | PA 12 |

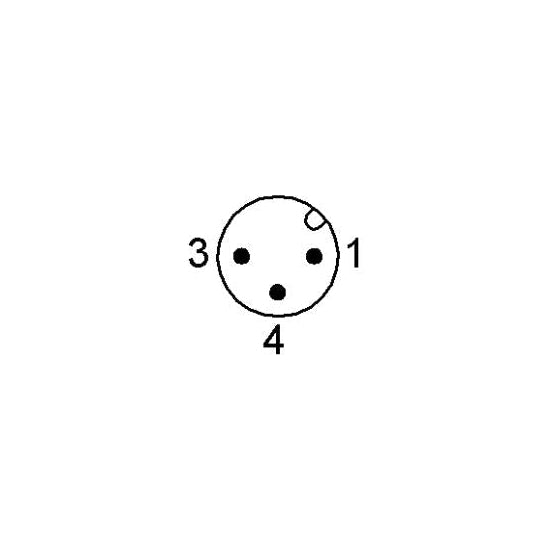

| Connection |
Connector, M12x1-Male, 4-pin
|
| Operating voltage Ub | 12...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity |
CE, UKCA, cULus, WEEE
|
Technical Datasheet:
Out of stock
