BCC08KP - Single-Ended Cordets -M12 F 5 pin PUR 5 Meter Shielded
BCC08KP - Single-Ended Cordets -M12 F 5 pin PUR 5 Meter Shielded
Regular price
$73.80 NZD
Regular price
Sale price
$73.80 NZD
Unit price
/
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Single-Ended Cordsets - Shielded

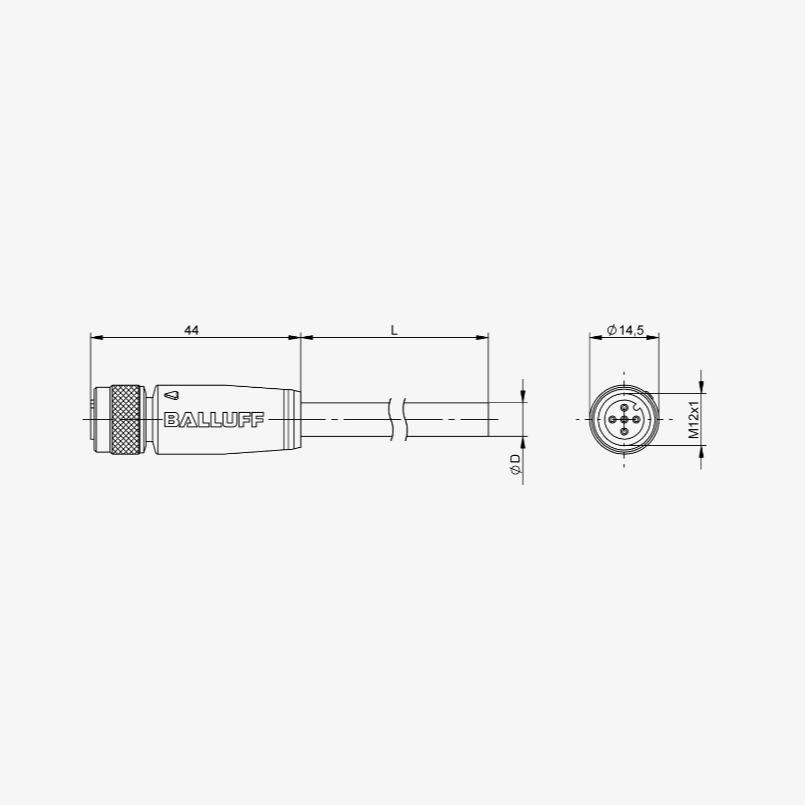

M12 Straight 5pin PUR Shielded 5m Female
Details:
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
Connection |
M12x1-Female, straight, 5-pin, A-coded
|
Switching output | Complementary |
Cable |
PUR Shielded black, 5 m, drag chain compatible
|
Number of conductors | 5 |
Conductor cross-section | 0.25 mm² |
Cable temperature, fixed routing | -50...80 °C |
Cable temperature, flexible routing | -25...80 °C |
Operating voltage Ub | 60 VDC / 60 VAC |
Rated current | (40 °C)4.0 A |
IP rating | IP67 |
Approval/Conformity | CE |
cULus | |
UKCA | |
WEEE |
Compatible Part Numbers:
BCC08KP
Typecode / BCC M415-0000-1A-016-PS0525-050
Technical Data Sheet:
2 in stock
