BCC08KR - Single-Ended Cordsets - M12 F 5 PUR S 10 Meter Shielded
BCC08KR - Single-Ended Cordsets - M12 F 5 PUR S 10 Meter Shielded
Regular price
$103.74 NZD
Regular price
Sale price
$103.74 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

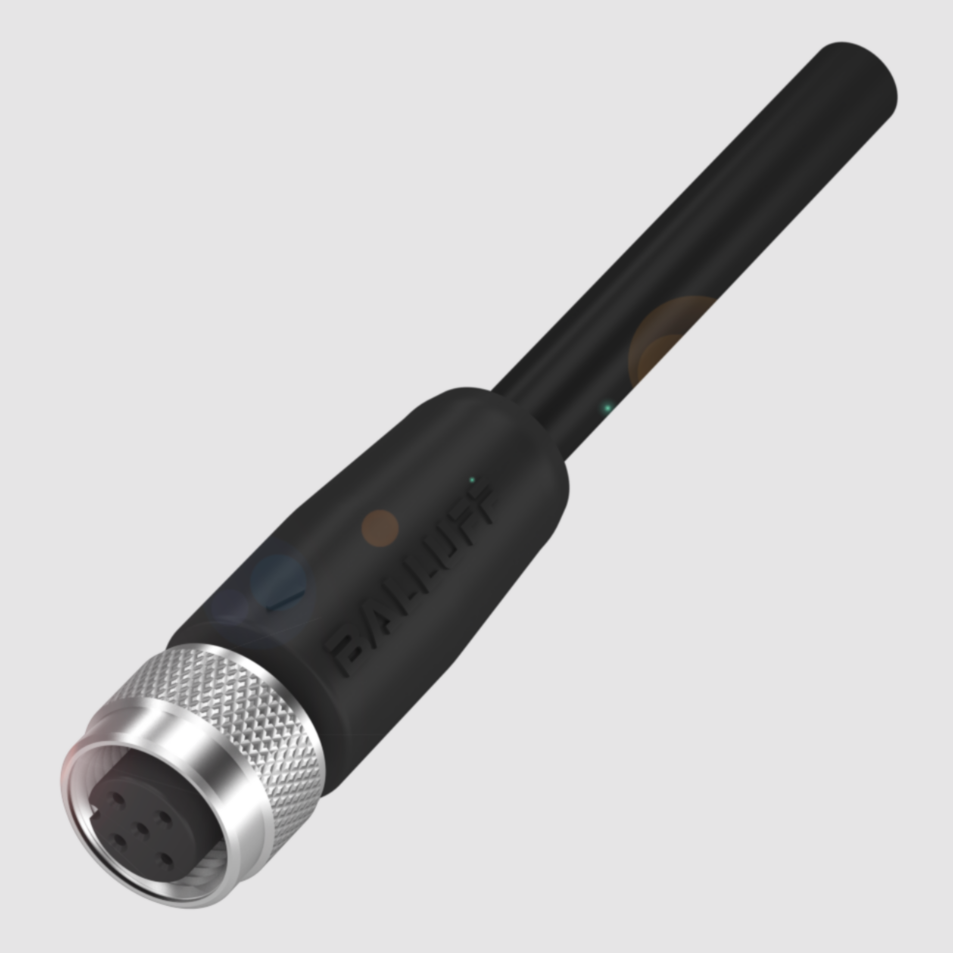

Single-Ended Cordsets - Shielded
M12 Straight 5pin PUR Shielded 10m Female
Details:
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and Pepperl Fuchs. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Connection |

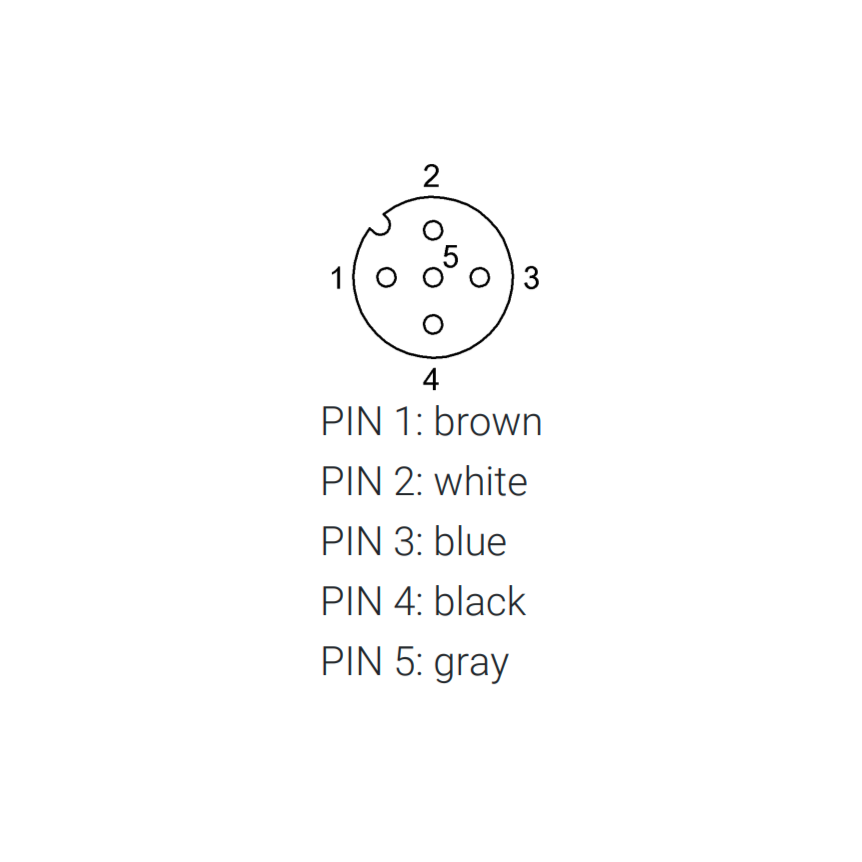

M12x1-Female, straight, 5-pin, A-coded
|
| Switching output | Complementary |
| Cable |
PUR Shielded black, 10 m, drag chain compatible
|
| Number of conductors | 5 |
| Conductor cross-section | 0.25 mm² |
| Cable temperature, fixed routing | -50...80 °C |
| Cable temperature, flexible routing | -25...80 °C |
| Operating voltage Ub | 60 VDC / 60 VAC |
| Rated current | (40 °C)4.0 A |
| IP rating | IP67 |
| Approval/Conformity | CE |
| cULus | |
| UKCA | |
| WEEE |
Compatible Part Numbers:
BCC08KR
Typecode / BCC M415-0000-1A-016-PS0525-100
PF 221508
V1-G-10M-PUR-ABG
PF 240004-100023
V15-G-10M-PVC-ABG
Technical Data Sheet:
