C40

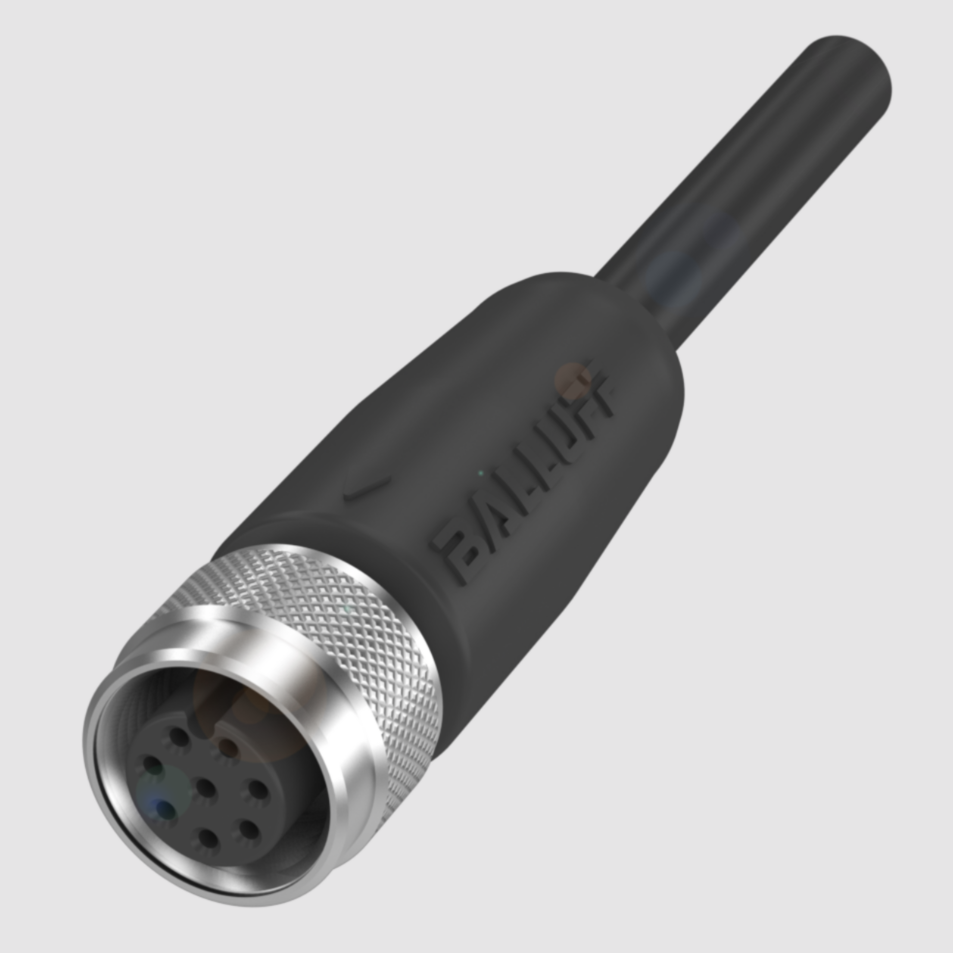

BCC0995 - Single-Ended Cordsets - Sheilded M12 Female, straight, 8pin, 5m

BCC0995 - Single-Ended Cordsets - Sheilded M12 Female, straight, 8pin, 5m

Regular price $115.42 NZD
Regular price Sale price $115.42 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Single-Ended Cordsets - Sheilded  M12x1-Female, straight, 8-pin, A-coded 5 metre

M12 Straight 8pin PUR Shielded 5m Female

Details:

When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.

Connection

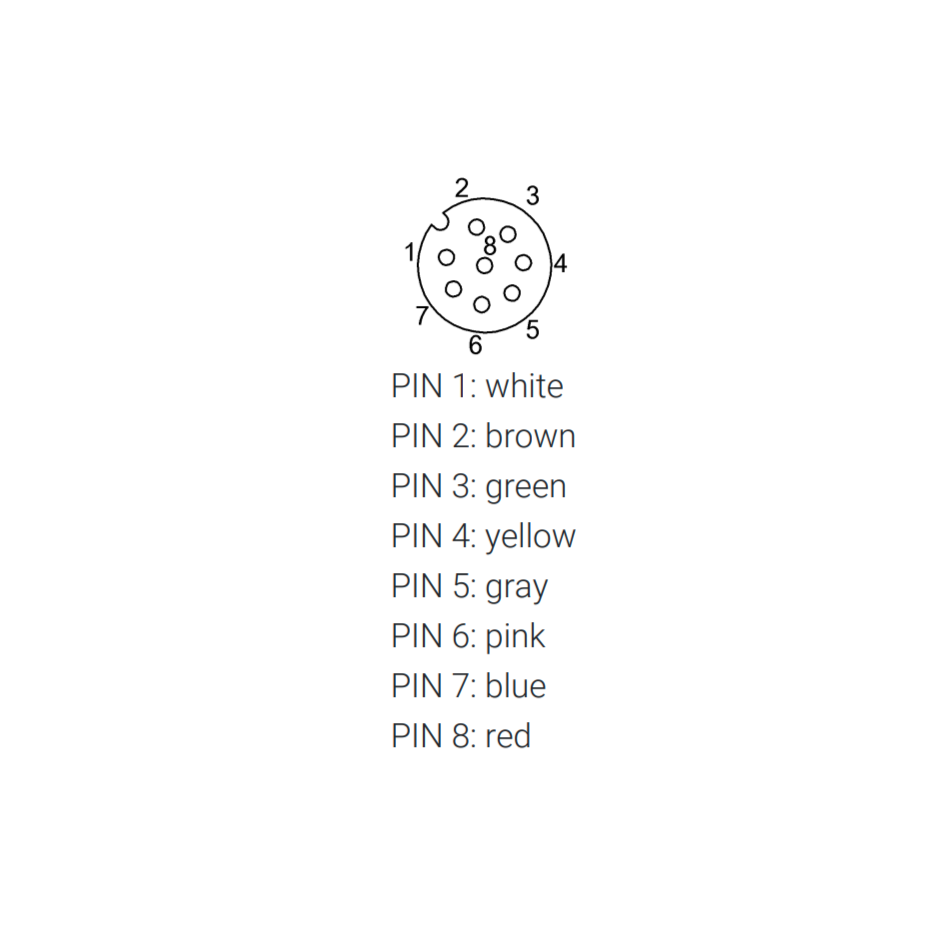

M12x1-Female, straight, 8-pin, A-coded
Cable
PUR Shielded black, 5 m, drag chain compatible
Number of conductors 8
Conductor cross-section 0.25 mm²
Cable temperature, fixed routing -50...90 °C
Cable temperature, flexible routing -25...90 °C
Operating voltage Ub 30 VDC / 30 VAC
Rated current (40 °C)2.0 A
IP rating IP67
Approval/Conformity CE
cULus
UKCA
WEEE



Compatible Part Numbers:

BCC0995

Typecode / BCC M418-0000-1A-046-PS0825-050

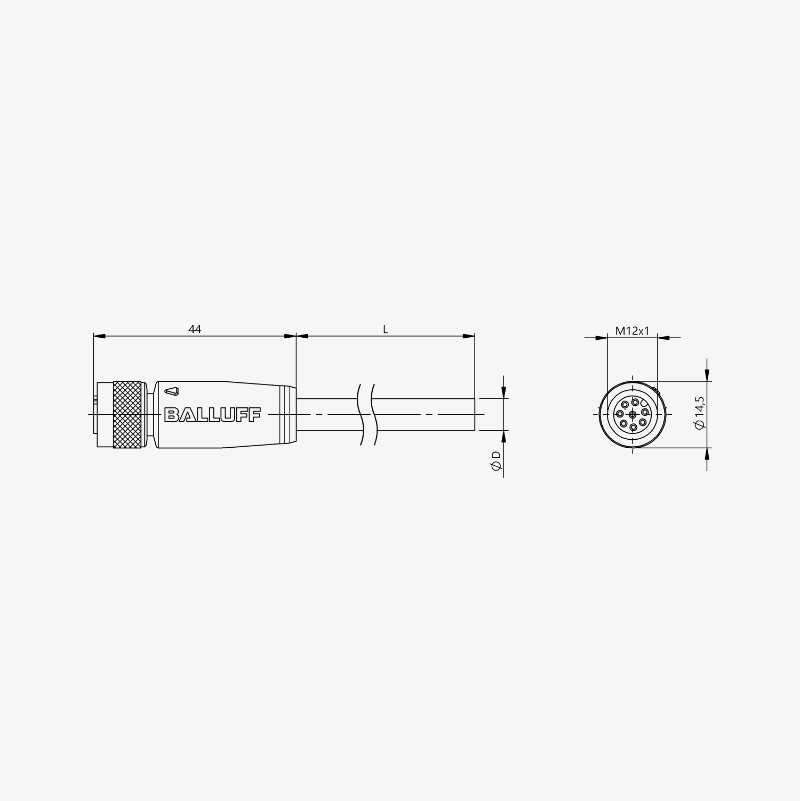

Technical Data Sheet:



3 in stock

View full details
