BCC0996 - Single-Ended Cordsets - Sheilded M12 Female, straight, 8pin, PUR 10m
BCC0996 - Single-Ended Cordsets - Sheilded M12 Female, straight, 8pin, PUR 10m
Regular price
$163.54 NZD
Regular price
Sale price
$163.54 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

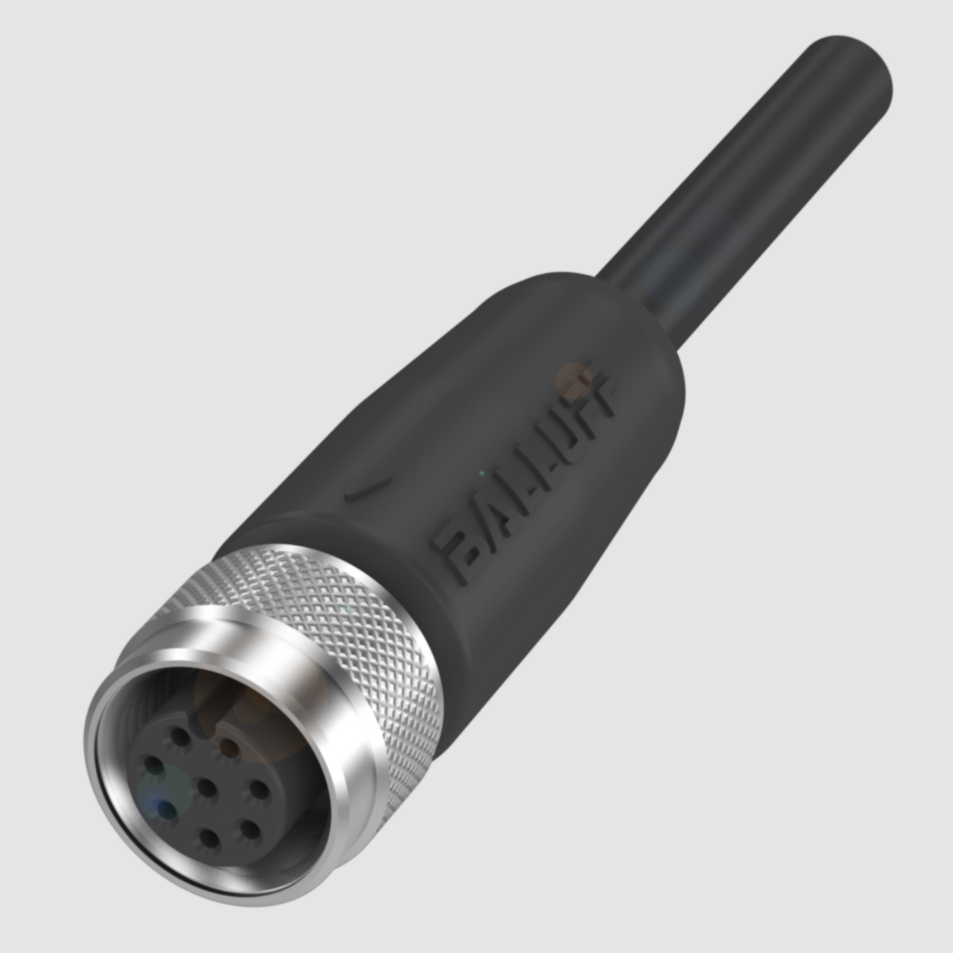

Single-Ended Cordsets - Sheilded
M12 Straight 8pin PUR Shielded 10m Female
Details:
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Connection |
M12x1-Female, straight, 8-pin, A-coded
|
| Cable |
PUR Shielded black, 10 m, drag chain compatible
|
| Number of conductors | 8 |
| Conductor cross-section | 0.25 mm² |
| Cable temperature, fixed routing | -50...90 °C |
| Cable temperature, flexible routing | -25...90 °C |
| Operating voltage Ub | 30 VDC / 30 VAC |
| Rated current | (40 °C)2.0 A |
| IP rating | IP67 |
| Approval/Conformity | CE |
| cULus | |
| UKCA | |
| WEEE |
Compatible Part Numbers:
M12 8pin 10metre female pur
BCC0996
Typecode / BCC M418-0000-1A-046-PS0825-100
Technical Data Sheet:
3 in stock
