BCC0AT4 - Single-Ended Cordsets - M12 Straight 8pin PUR Black 20m Female
BCC0AT4 - Single-Ended Cordsets - M12 Straight 8pin PUR Black 20m Female
Regular price
$186.59 NZD
Regular price
Sale price
$186.59 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Single-Ended Cordsets

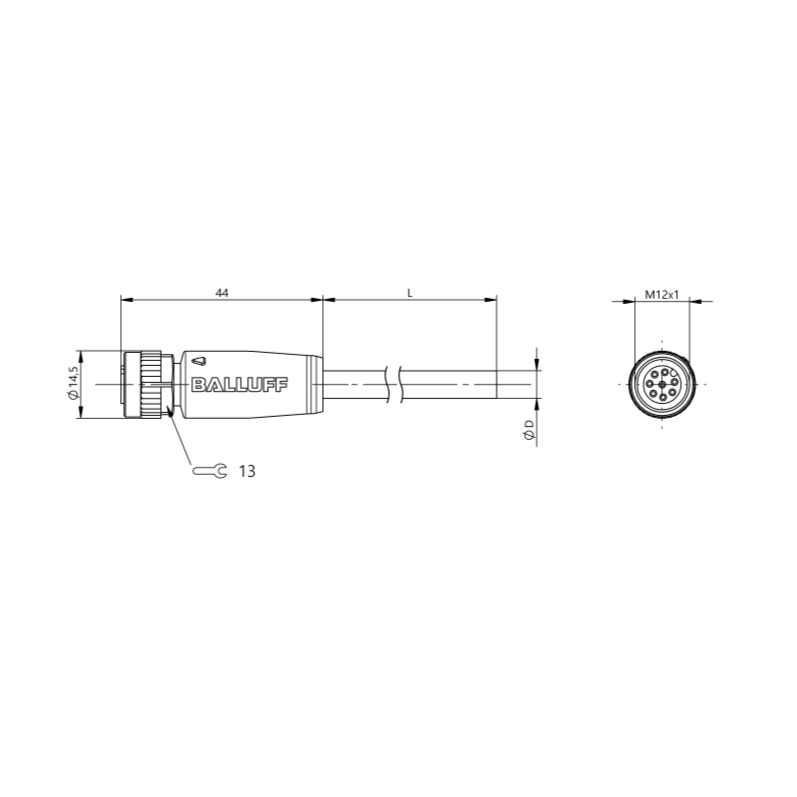

M12 Straight 8pin PUR Black 20m Female
Details:
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Connection |

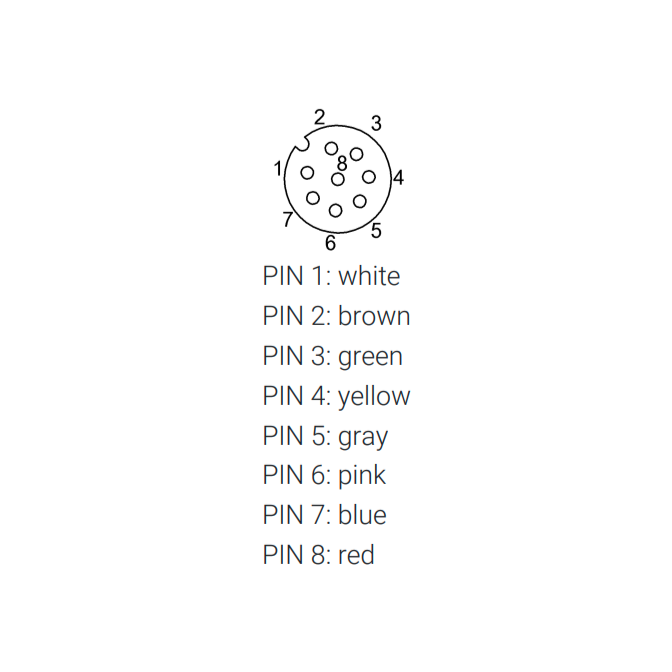

M12x1-Female, straight, 8-pin, A-coded
|
| Cable |
PUR black, 20 m, drag chain compatible
|
| Number of conductors | 8 |
| Conductor cross-section | 0.25 mm² |
| Cable temperature, fixed routing | -50...80 °C |
| Cable temperature, flexible routing | -25...80 °C |
| Operating voltage Ub |
30 VDC / 30 VAC
|
| Rated current (40 °C) | 2.0 A |
| IP rating |
IP67, IP68, IP69K
|
| Approval/Conformity | CE |
| cULus | |
| WEEE |
Compatible Part Numbers:
BCC0AT4
Typecode / BCC M418-0000-1A-069-PX0825-200
Technical Datasheet:
Out of stock
