B20PNP (NO)
BCS00U6 - Capacitive Sensors For Object Detection
BCS00U6 - Capacitive Sensors For Object Detection
Regular price
$110.31 NZD
Regular price
Sale price
$110.31 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Capacitive Sensors For Object Detection
Q40, PNP NO, Cable with connector, M8x1-Male-3pin, 0.30 m, PUR.
Compatible Part Numbers:
BCS00U6
Typecode / BCS Q40BBAA-PSC20C-EP00,3-GS49
Technical Data Of: BCS00U6
| Dimension | 40 x 40 x 10 mm |
| Series | Q40 |
| Installation |
for flush mounting
|
| Connection |

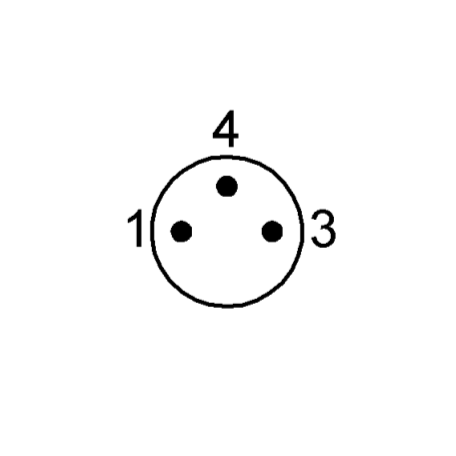

Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
|
| Switching output |
PNP normally open (NO)
|
| Switching frequency | 100 Hz |
| Range | 1...20 mm |
| Sensitivity |
Switching distance adjustable
|
| Housing material | PBT |
| Material sensing surface | PBT |
| Ambient temperature | -5...85 °C |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE | |
| IP rating | IP67 |
Technical Data Sheet:
2 in stock
