B4PNP (NO)
Balluff - M8 PNP (NO) - Inductive Sensor BES0027
Balluff - M8 PNP (NO) - Inductive Sensor BES0027
Regular price
$83.22 NZD
Regular price
Sale price
$83.22 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

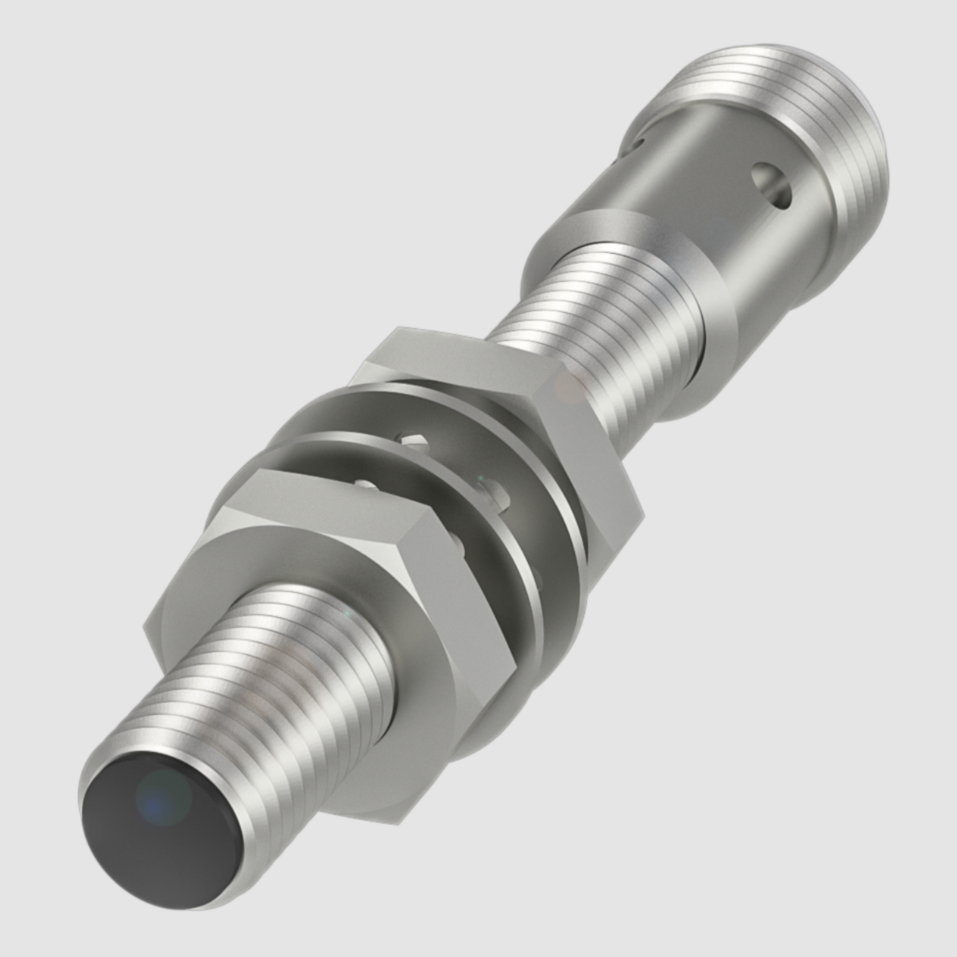

Inductive Sensor
M8 PNP (NO) M12 4pin Sheilded Sn: 1.5mm
Compatible Part Numbers:
BES0027
Typecode / BES M08MH1-PSC15B-S04G
801375 - PepperLFuch Discontinued
NBB1,5-8GM40-E2-V1
Technical Data Of: BES0027
| Dimension | Ø 8 x 65 mm |
| Style Housing | M8x1 |
| Installation | for flush mounting |
| Range | 1.5 mm |

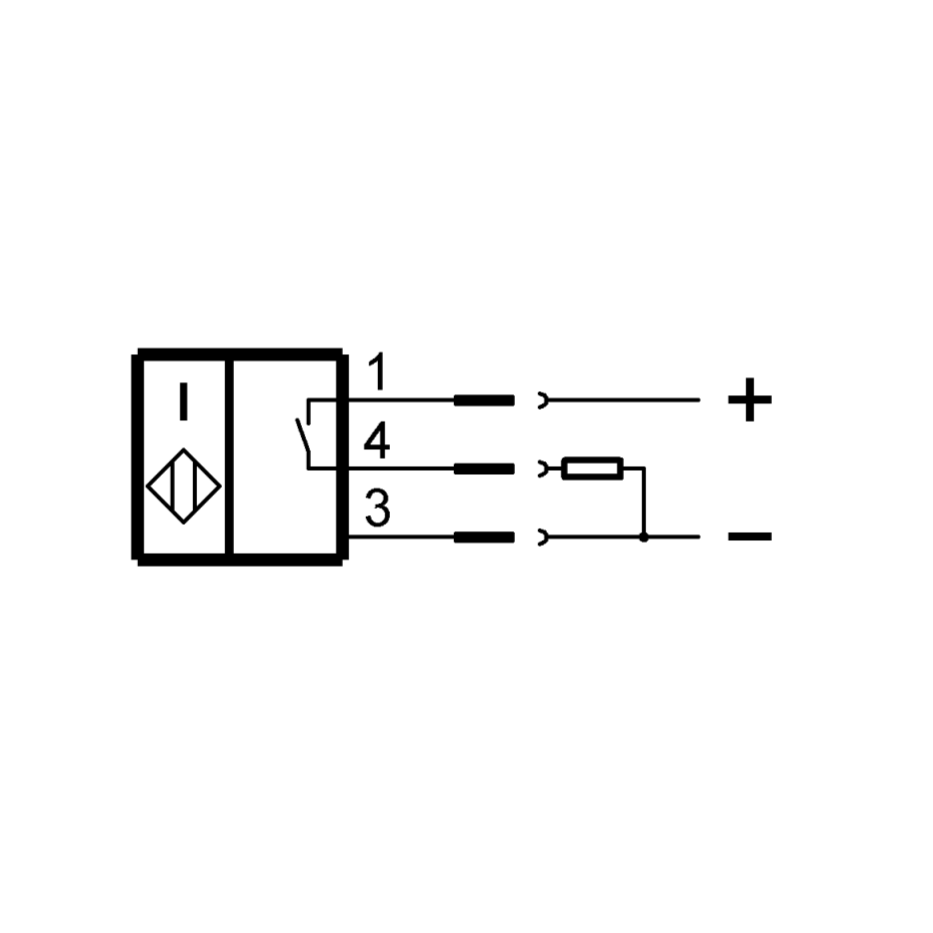

| Switching output | PNP normally open (NO) |
| Switching frequency | 1000 Hz |
| Housing material | Brass, nickel-plated |
| Material sensing surface | PA 12 |

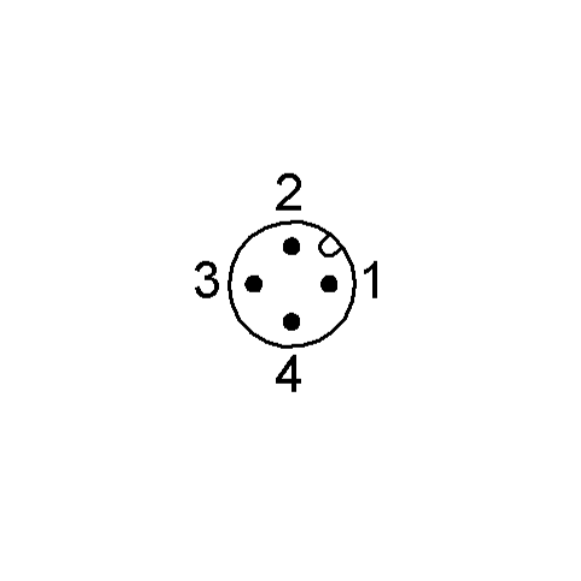

| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 12...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEE |
Technical Data Sheet:
2 in stock
