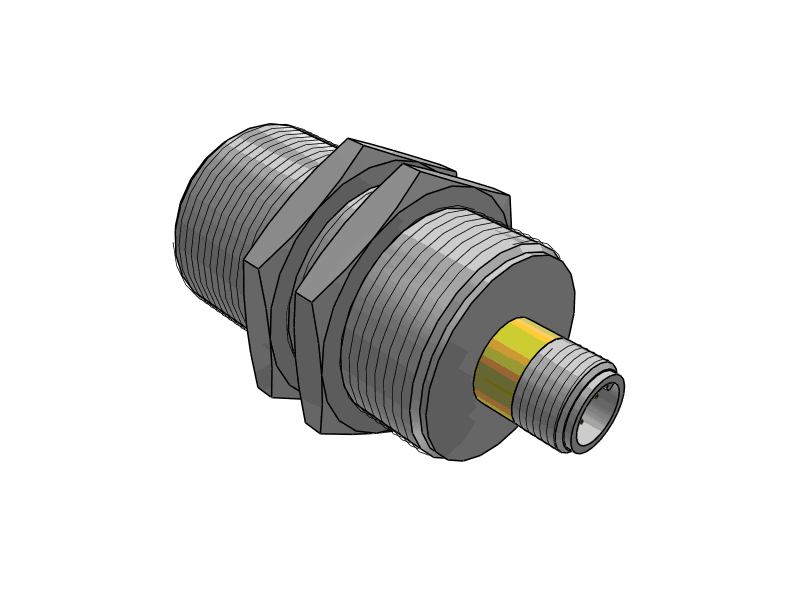

Balluff BES009J - Inductive Proximity Switches And Proximity Sensor
Balluff BES009J - Inductive Proximity Switches And Proximity Sensor
Regular price
$124.10 NZD
Regular price
Sale price
$124.10 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Proximity Switches And Proximity Sensor
NPN (NO) M12 4pin
Compatible Part Numbers:
BES009J
Typecode / BES M30MI-NSC15B-S04K
Technical Data Of: BES009J
| Dimension | Ø 30 x 65 mm |
| Installation |
for flush mounting
|
| Switching output |
NPN normally open (NO)
|
| Housing material |
Brass, Nickel-free coated
|
| Connection |
Connector, M12x1-Male, 4-pin
|
| Ambient temperature | -25...70 °C |
| Style Housing |
M30x1.5 |
| Range | 15mm |
| Switching frequency | 100 Hz |
| Material sensing surface | PA 12 |
| Operating voltage Ub | 10...30 VDC |
| IP rating | IP67 |
| Approval/Conformity | cULus |
| CE | |
| UKCA | |
| WEEE |
Technical Datasheet:
1 in stock
