B21PNP (NC)
BES009U - Inductive Proximity Switches And Proximity Sensor
BES009U - Inductive Proximity Switches And Proximity Sensor
Regular price
$124.10 NZD
Regular price
Sale price
$124.10 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

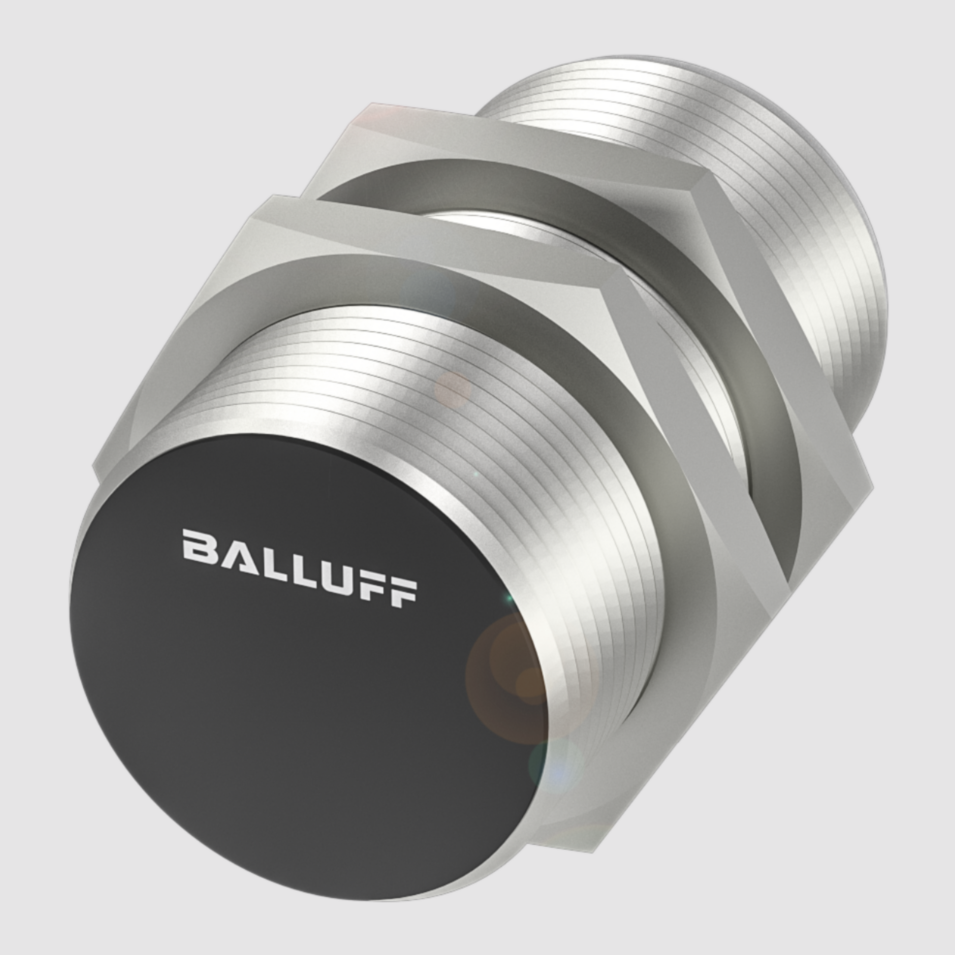

Inductive Proximity Switches And Proximity Sensor
PNP (NC) M12 4pin Sn:15mm
Compatible Part Numbers:
BES009U
Typecode / BES M30MI-POC15B-S04K
Technical Data Of: BES009U
| Dimension | Ø 30 x 65 mm |
| Style Housing | M30x1.5 |
| Installation | for flush mounting |
| Range | 15 mm |

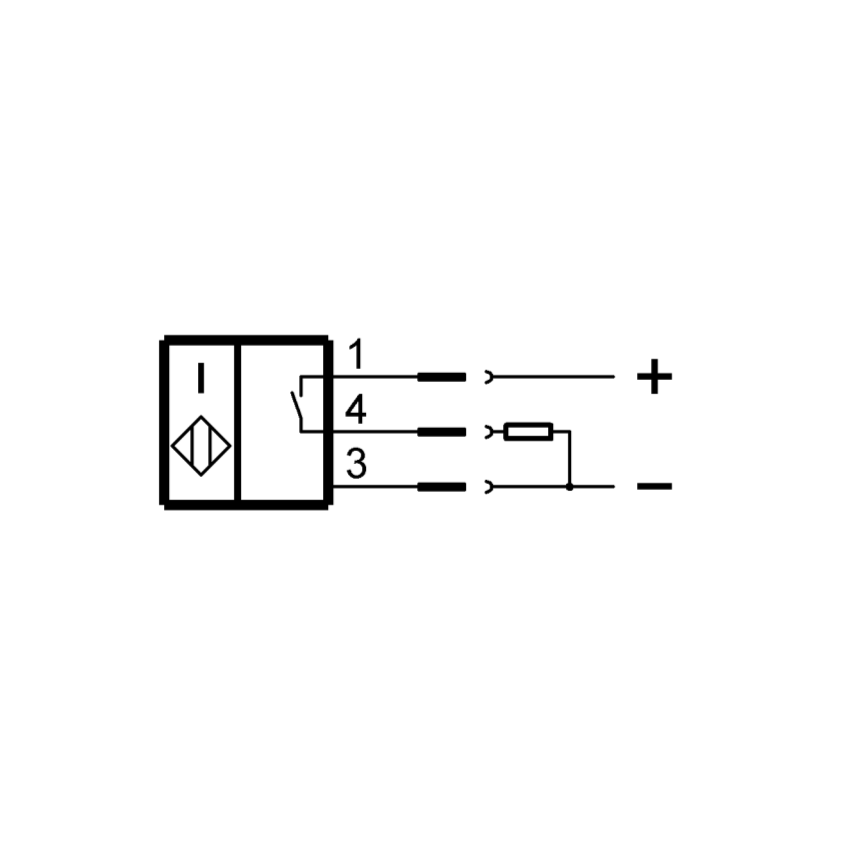

| Switching output | PNP normally closed (NC) |
| Switching frequency | 100 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PA 12 |

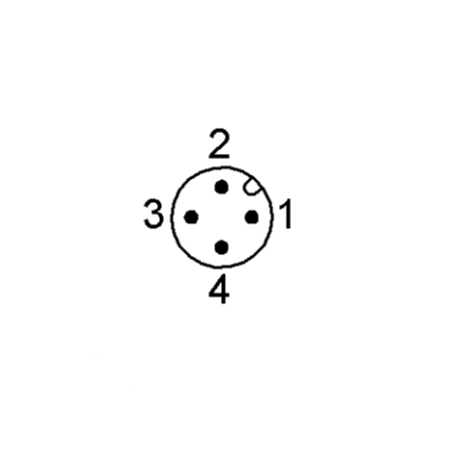

| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage | Ub10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE |
Technical Data Sheet:
1 in stock
