B21NPN (NO)
BES00HJ - M5 NPN (NO) - Inductive Proximity Switches And Proximity Sensors
BES00HJ - M5 NPN (NO) - Inductive Proximity Switches And Proximity Sensors
Regular price
$193.53 NZD
Regular price
Sale price
$193.53 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

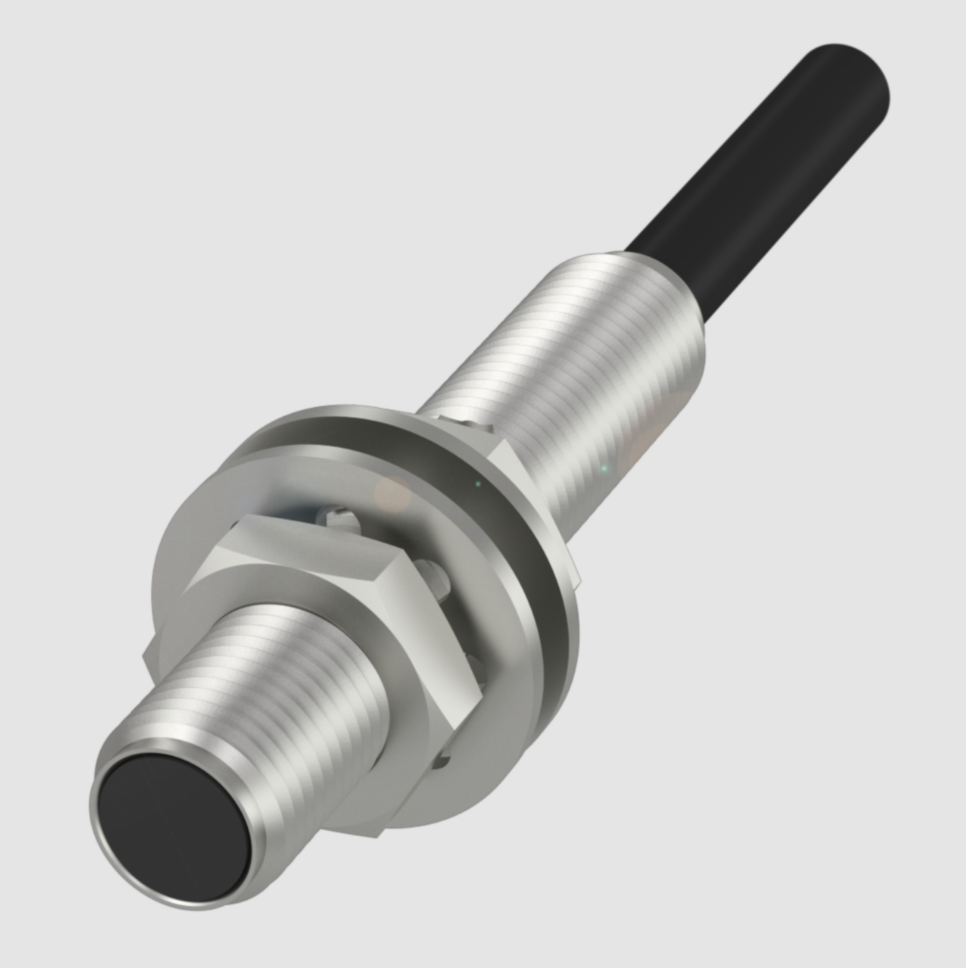

BES00HJ - Inductive Proximity Switches And Proximity Sensors
M5 NPN NO Inductive 2m
Compatible Part Numbers:
BES00HJ
BES 516-3006-E4-C-PU-02
Technical Data Of: BES00HJ
| Dimension | Ø 5 x 27 mm |
| Style Housing | M5x0.5 |
| Installation |
for flush mounting
|
| Range | 0.8 mm |

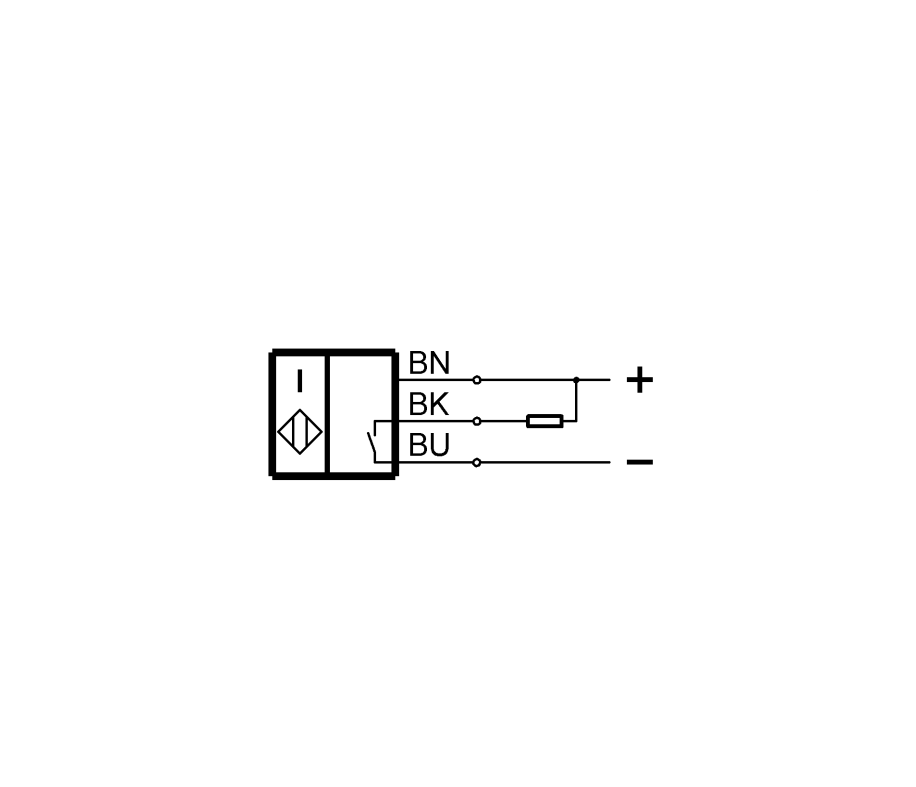

| Switching output |
NPN normally open (NO)
|
| Switching frequency | 5000 Hz |
| Housing material | Stainless steel |
| Material sensing surface | PBT |
| Connection |
Cable, 2.00 m, PUR
|
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE |
Technical Datasheet:
1 in stock
