B10PNP (NO/NC)
BLT0004 - Luminescence Sensor - Discontinued
BLT0004 - Luminescence Sensor - Discontinued
Regular price
$541.08 NZD
Regular price
Sale price
$541.08 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

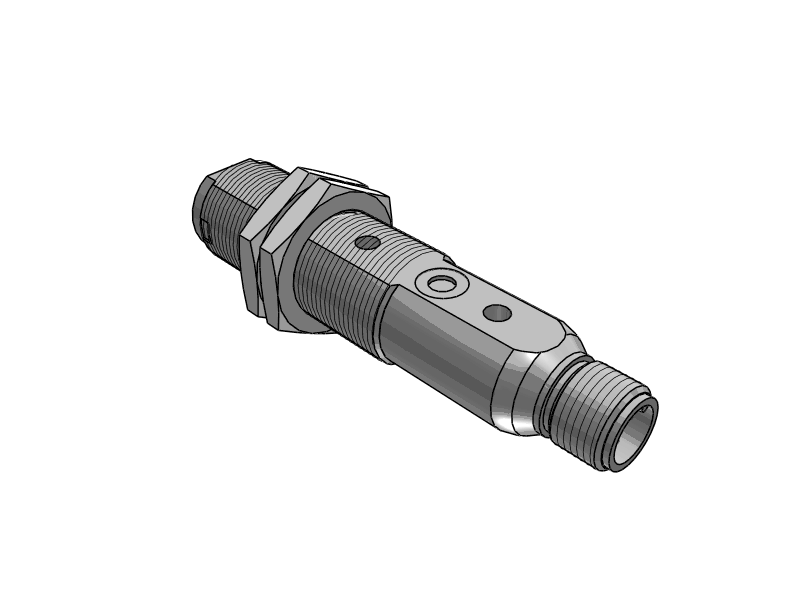

Luminescence Sensor
18KF PNP (NO/NC) Sn:8-20mm M12
Compatible Part Numbers:
BLT0004 - Discontinued
Typecode / BLT 18KF-001-P-S4
Technical Data Of BLT0004:
| Series | 18KF |
| Dimension | Ø 18 x 81.5 mm |
| Interface | PNP NO PNP NC |
| Principle of operation | Luminescence sensor |
| Principle of optical operation | Diffuse sensor, focused |
| Beam characteristic | Focused |
| Light type | Ultraviolet light |
| Light spot size | Ø 3 mm at 20 mm |
| Range | 8...20 mm |

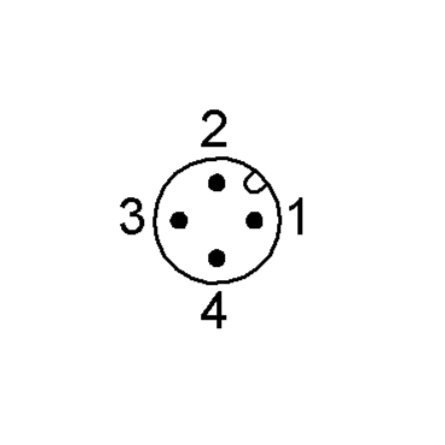

| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | PBT |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE |
| cULus | |
| WEEE |
Technical Data Sheet:
1 in stock
